Network Installation Orange County

What an Orange County network installation covers

More of our work here is in buildings that do not exist yet than anywhere else in the region. That changes the scope from a retrofit problem into a scheduling one.

• A place in the construction programme. On new-build work the network contractor has a window between the frame going up and the drywall closing, and missing it converts every cheap run into an expensive one. We ask for the schedule before we ask for a floor plan.
• Coordination with the general contractor and the other trades. Where our pathway crosses ductwork, sprinkler, electrical and structure — settled on a drawing rather than discovered on a lift.
• A written design. Addressing, the VLAN scheme, switch capacity with room to grow, radio counts and positions, and the equipment schedule.

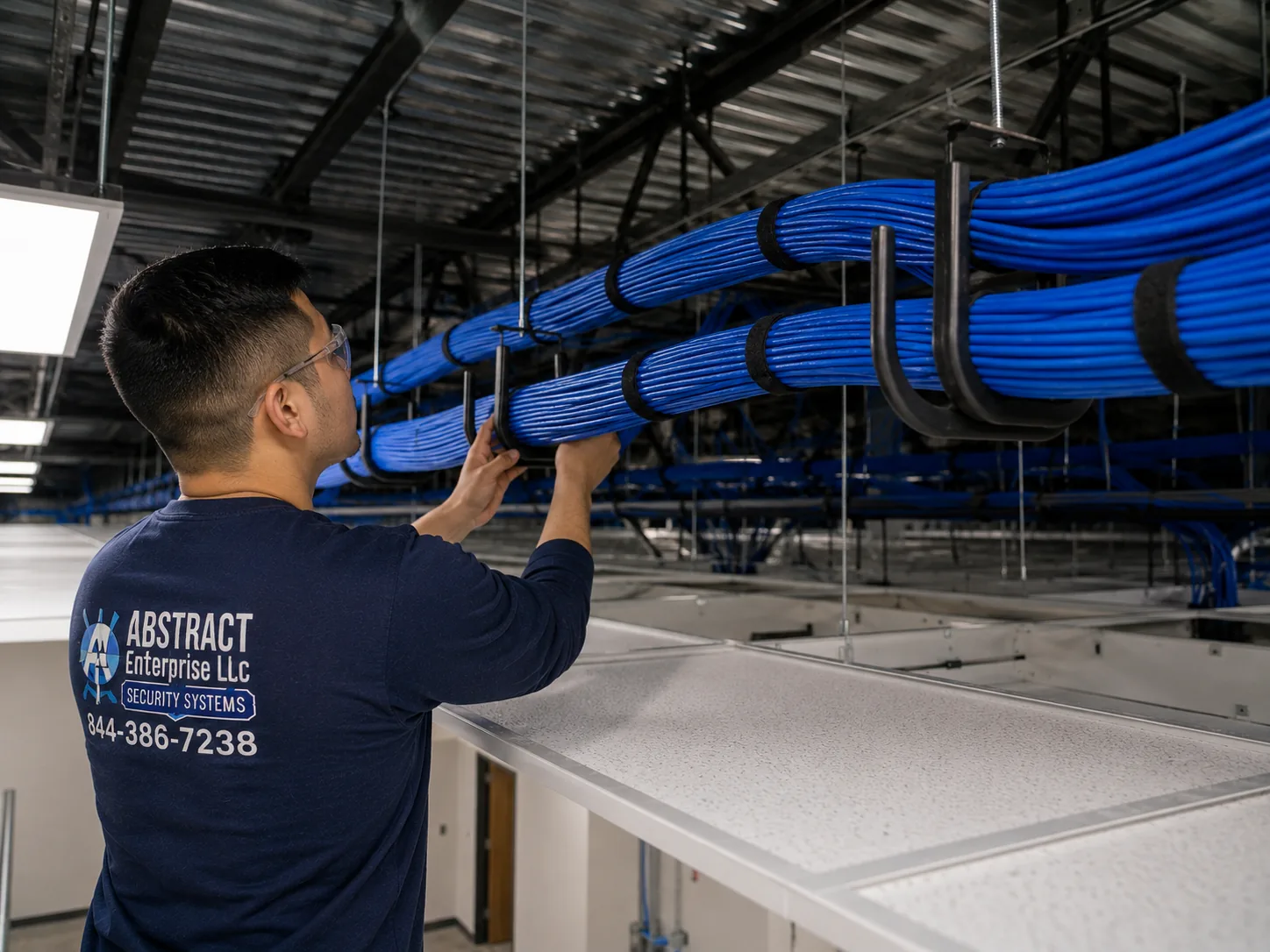

• The plant. Cable carried on proper supports, plenum-rated wherever the ceiling doubles as a return, firestopped at every rated penetration, landed on matched components and certified run by run.
• The room. Network rack or cabinet, panels, managers, protected power and battery backup, dressed and labelled at both ends.
• The active layer. Switching, the edge firewall and the radios — installed, configured, tuned and demonstrated.
• Handover. Port map, as-built, addressing record, equipment schedule with serials, and the administrative credentials — in a form the building's own closeout documentation can absorb.

Priced as their own lines rather than absorbed: rack hardware, panels, switches and firewalls where we supply them, conduit where the drawings call for it, firestop materials, coring, lift work in high bays, temporary service during construction, and out-of-hours crews where an occupancy date is tight. On a project running to a certificate of occupancy, the schedule risk is a real cost and pretending otherwise helps nobody.

Networking a building measured in hundreds of thousands of square feet

Orange County's distribution and logistics stock is the largest-format commercial space in the region, and scale alone changes almost every decision.

Distance is the first design question

Copper horizontal cable stops at a hundred metres as installed — up to a high deck, along the pathway, back down a column — and once floor plates run to several hundred feet in each direction, no single room reaches anything like all of it. The design therefore starts with how many rooms the building needs and where they sit, each serving a defined zone with its own switching and its own protected power, linked back to the main room over fiber. On buildings of this size that is three or four rooms rather than one, and it is settled before anyone counts drops.

Fiber, and why it should not be a chain

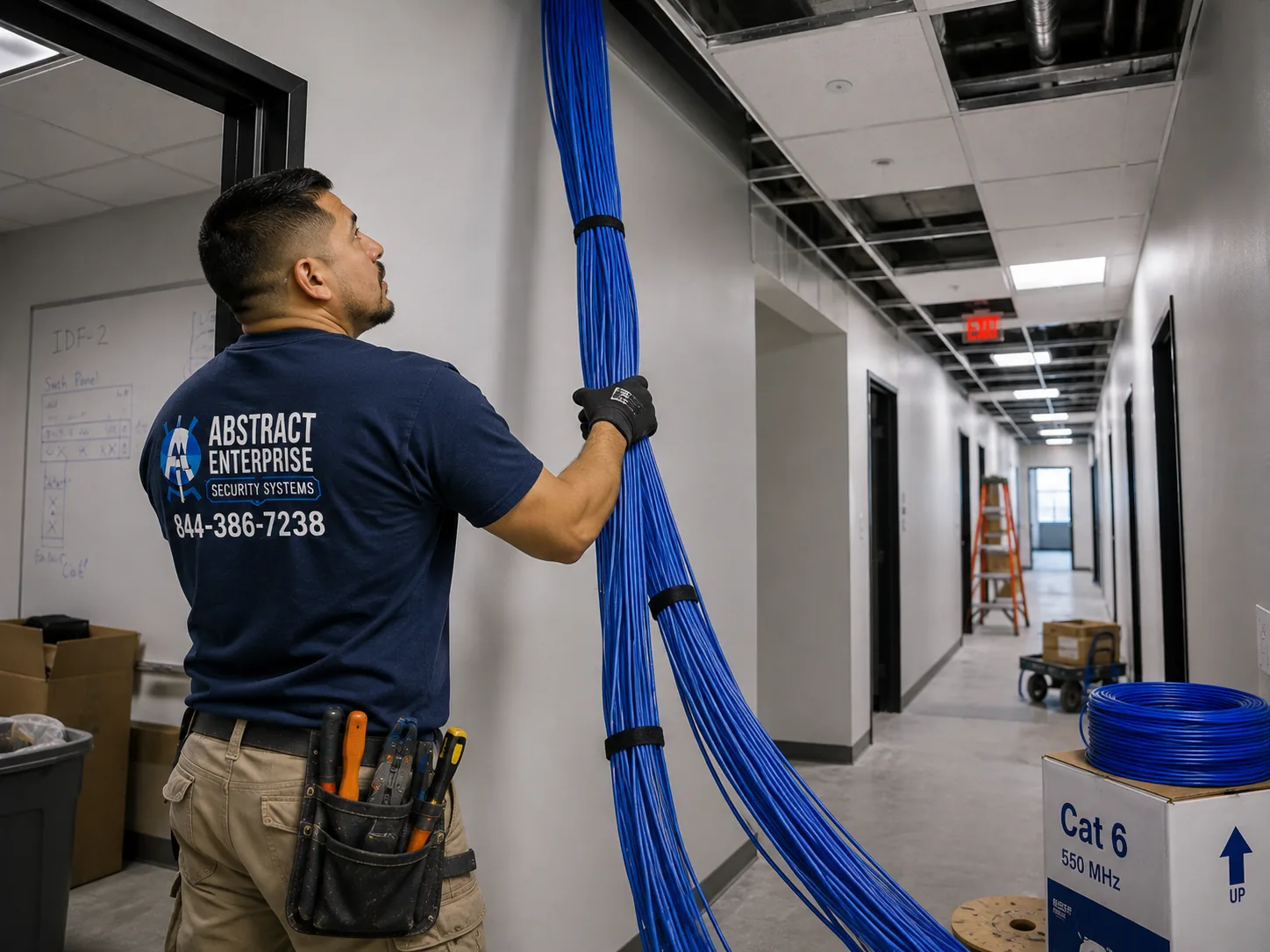

Each zone room links back to the main room directly. Running room A to room B to room C is tempting on a long building and it means a fault in the first takes the rest of the floor with it. A star costs no more in equipment and fails far better. The uplinks themselves deserve ten-gigabit fiber rather than gigabit, because everything an entire zone does passes through that one link — and on a building where scanning, weighing and dispatch systems all sit in one zone, an undersized uplink is measured in shipments rather than in inconvenience.

Wireless built around movement, not floor area

A handheld in a distribution building does not sit still. It travels an aisle, passes a dock door and comes back, and it has to hand between radios without dropping the session it is running. That is a roaming problem rather than a coverage problem, and it is solved by overlapping cells at deliberately reduced power rather than by fewer, stronger radios. A design built for maximum reach produces exactly the complaint operators report: a device that clings to a distant radio long after a nearer one would serve it better. Racking and stock levels change the picture across a season, which is why these buildings are surveyed rather than modelled.

Height, and what it costs to reach

Everything above fourteen feet needs a lift, and in a modern distribution building the deck is a great deal higher than that. Radios, pathway and any device mounted at height are slower to install and considerably slower to revisit — which is the practical argument for getting the power budget, the cable grade and the spare capacity right on the first visit rather than the second.

Switching, the edge, and building for a property that will grow

In a county where businesses expand into space next door as a matter of routine, the wired design is judged on what it absorbs rather than what it currently carries.

Capacity bought at the right moment

Port and power headroom cost very little at the point of purchase and a great deal once a building is finished and occupied. On a growing property the additional switch capacity, the spare fiber strands in the backbone, and the extra pathway installed while the wall was open are the three decisions that determine whether next year's expansion is a plug-in or a project. We size for the building's plausible next stage rather than for its opening-day headcount, and we say which parts of that are optional so the choice is yours.

The edge

One router or firewall per property, at the point the circuit lands. On sites with more than one structure — common enough here — consolidating separate connections into one edge with the others as failover is usually the fastest saving available, and it is what makes a VLAN scheme enforceable across the whole property. A business gateway with a considered rule set serves most Orange County operations; anything handling regulated information, supporting remote staff or facing a customer security questionnaire benefits from a firewall that logs properly.

Power on a large or rural site

Battery backup in every room rather than only the main one, since protecting the main room while two zones reboot uncontrolled solves a fraction of the problem. Distribution buildings share their electrical service with dock equipment and refrigeration plant that produce disturbances when they start. Rural properties in the west of the county see longer interruptions than anywhere closer to the city. On sites with a generator, it is worth confirming the network rooms are genuinely on the protected panel rather than assuming — telecom spaces are routinely omitted when generator scope is drawn.

Wi-Fi installation across large formats and small villages

Wireless network installation in this county spans the two extremes of the trade: buildings so large that coverage is a logistics exercise, and buildings so old that a single wall defeats it.

Large-format buildings

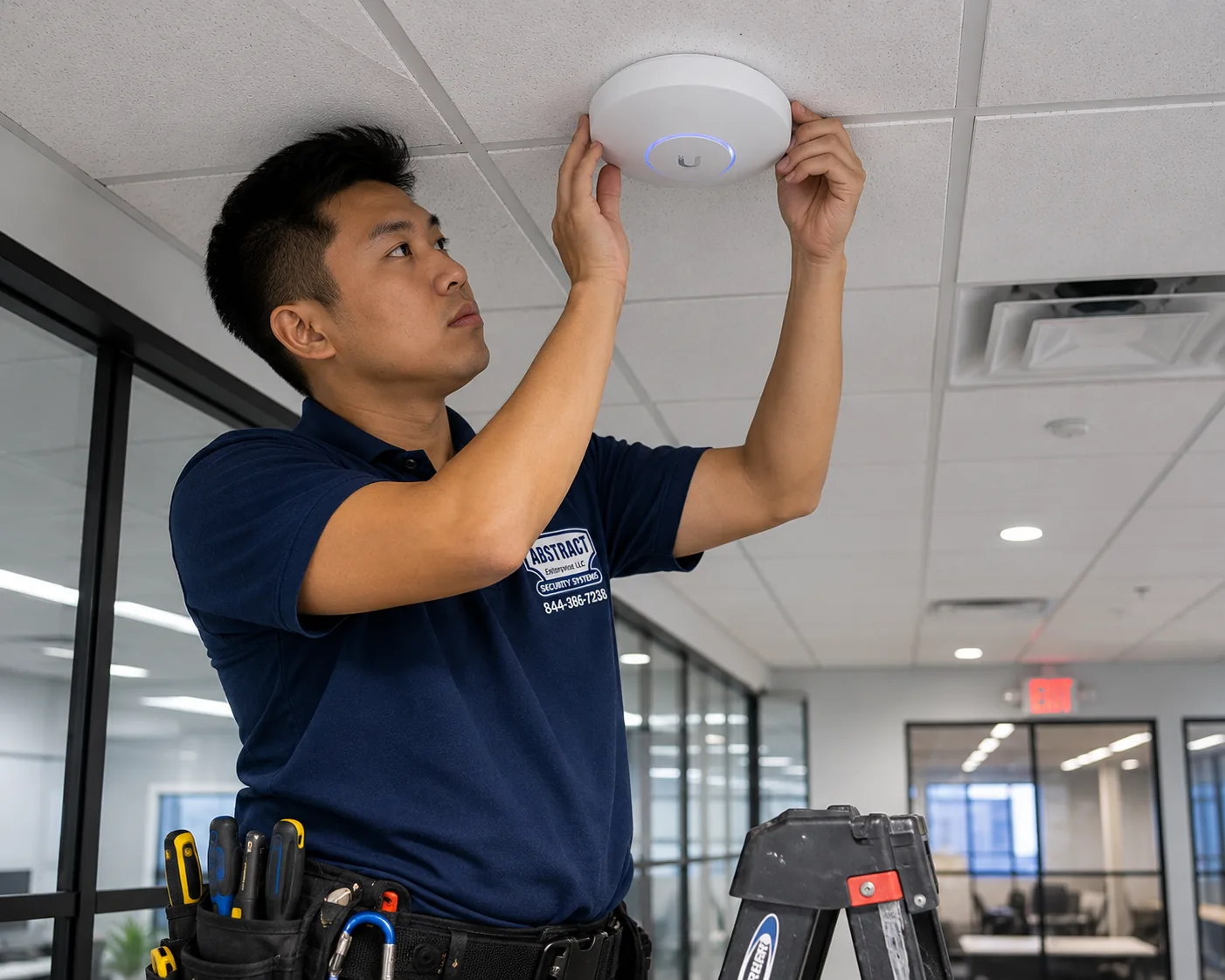

Coverage in a distribution building is planned along the routes devices travel rather than across the floor area. Aisles behave differently from open dock space, racking absorbs and reflects, mounting height changes the footprint dramatically, and stock levels alter the answer between January and June. The count follows the zone plan and the roaming paths, and it is verified by walking the building with a meter rather than by reading a controller dashboard.

New construction has one quiet advantage

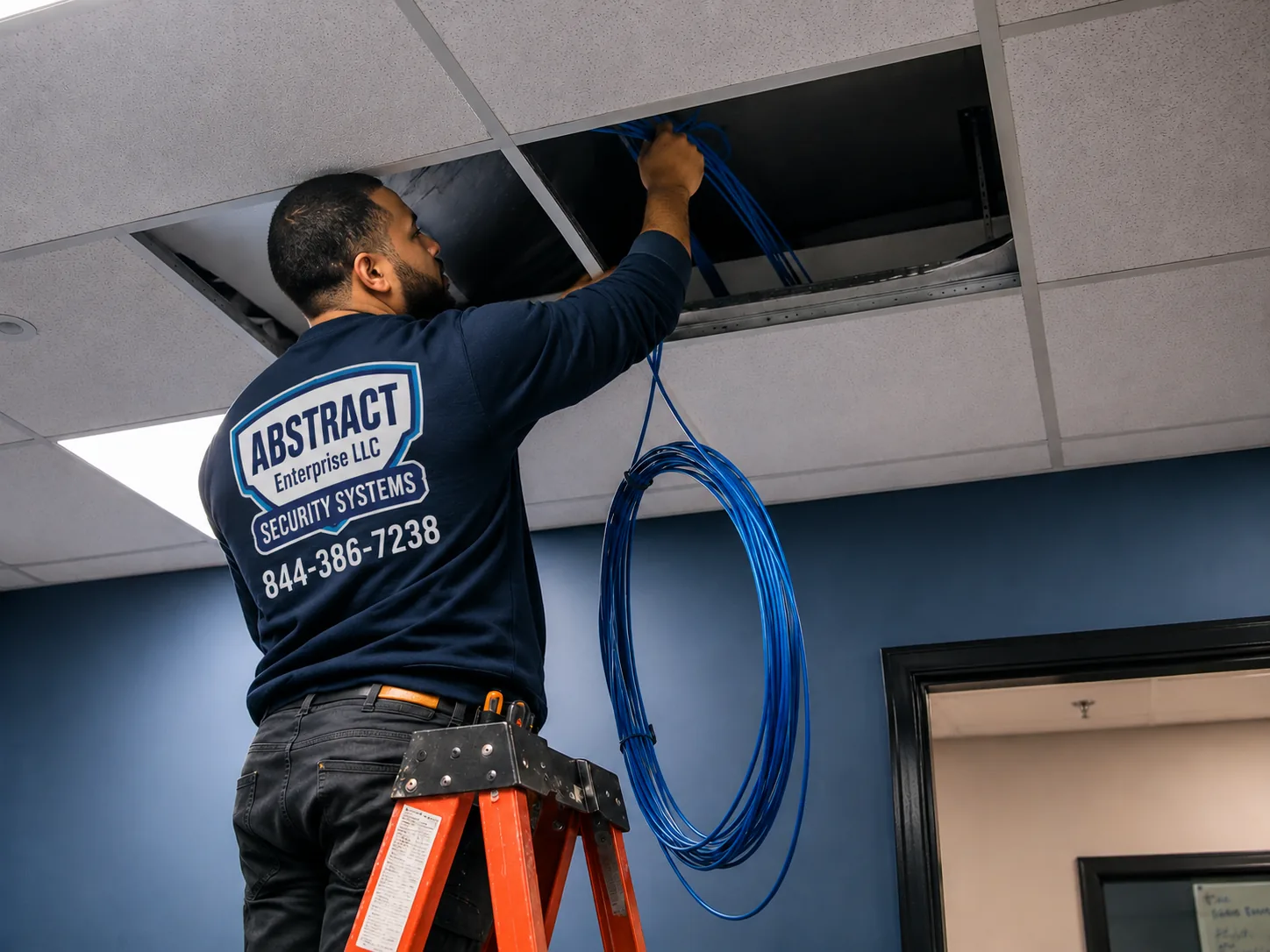

On a building still being built, radio positions can be chosen freely and cabled during rough-in for the cost of the cable. On a finished building each position is a lift, a fish or a compromise. That is the practical reason wireless designs on new-build projects here come out both better and cheaper — the positions are the ones the design wanted rather than the ones the building would allow.

Older masonry cores

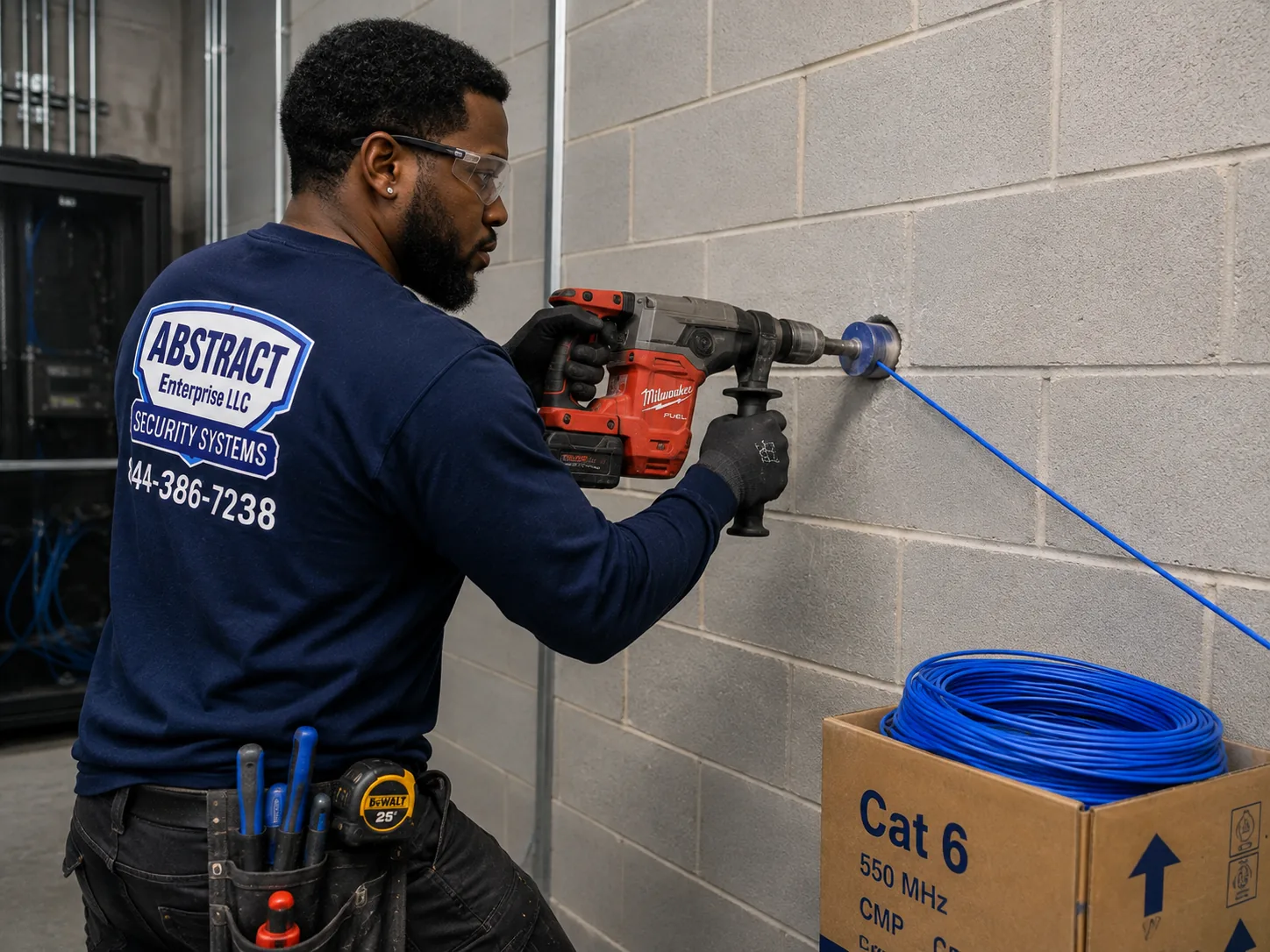

Middletown, Newburgh's older streets, Goshen and Port Jervis hold buildings whose interior walls stop radio outright. The effect is invisible from inside the room and no amount of transmit power crosses it. Coverage is designed room by room and the count runs well above any floor-area calculation.

Multi-structure rural properties

Farms, wineries, hospitality and contractors' yards across the west of the county routinely have more than one building and expect coverage outdoors as well as in. That means exterior-rated radios, mounting that survives weather, cable rated for the run and a proper bond at the entry — quoted as its own line rather than folded into an indoor count.

The network rack, specified while the room is still on a drawing

On new construction the telecom room is one of the few spaces whose requirements can be stated before it is built. That opportunity is routinely wasted.

A room specified during design gets a dedicated circuit, ventilation, a sensible footprint and a door that opens the right way. A room allocated at the end of a project gets whatever is left over — usually an interior closet with no supply air, too small for the rack it has to hold. We put the requirements in writing early, because at that point they cost nothing and afterwards they cost a change order.

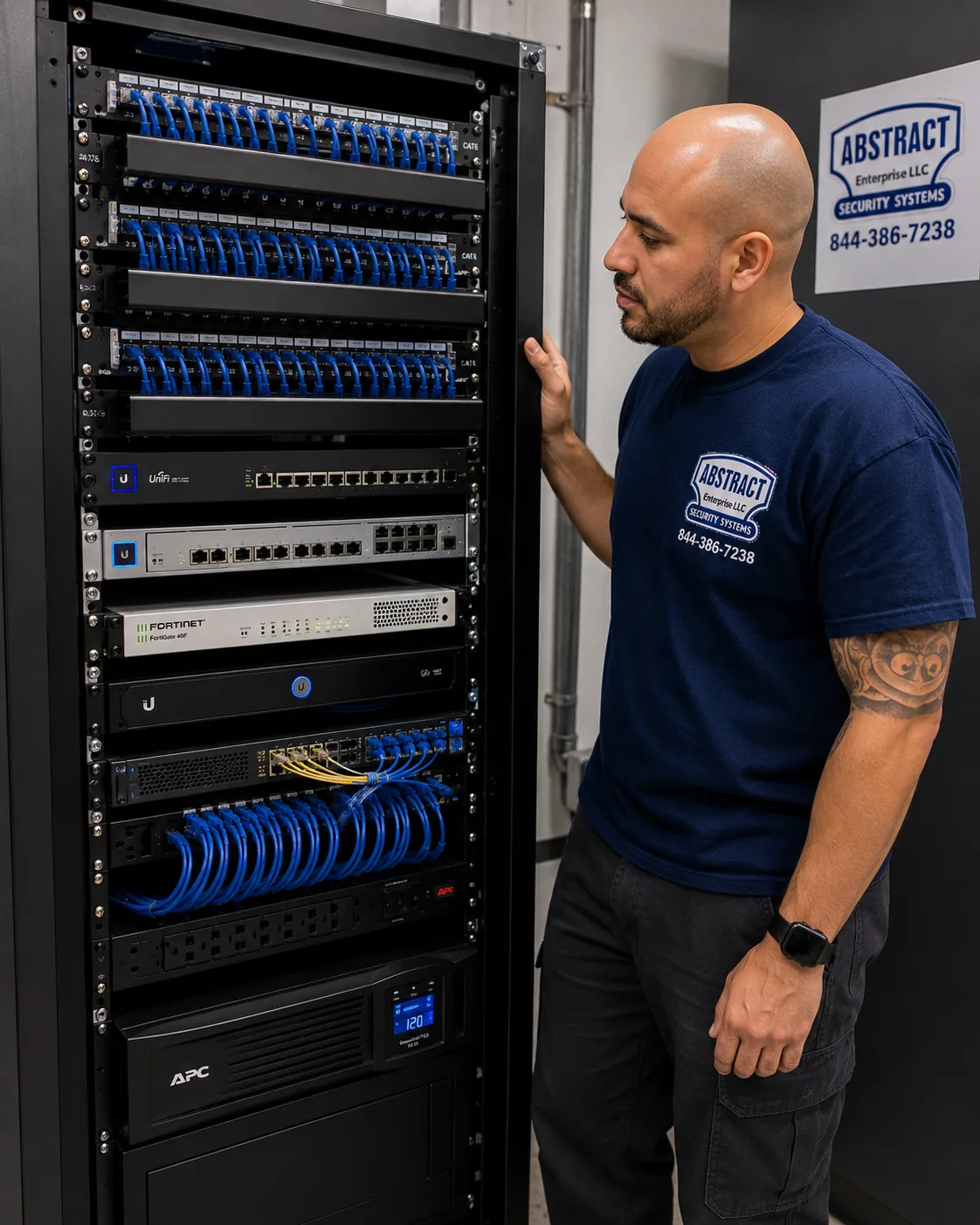

What belongs in it

• A network rack or wall cabinet sized for the property's next stage rather than its opening headcount.
• Patch panels with capacity in reserve, since panel space is the hardest element to extend once a building is occupied.
• Cable managers horizontally and vertically, which is what separates a rack somebody can work in from one that is simply full.
• Power. A circuit of its own where the design allows, a PDU in the rack, and battery backup matched to the actual draw.
• Bonding to building ground at every point the installation requires, and at any entry where cable has come in from outside.
• Labelling at every port, panel and cable end, agreeing exactly with the port map.

Heat, and the room nobody ventilated

The most common defect we find in a recently completed building is a telecom room with no air movement at all. Seal a cabinet around a switch pushing three hundred watts and by August it is an oven, and warm equipment throws the sort of intermittent, weather-linked faults that take days to run down. On new construction this is entirely preventable and costs almost nothing at design stage — a vented door, a fan kit, or simply a room chosen with a supply register in it. Raising it after the certificate of occupancy means a contractor returning to a finished building.

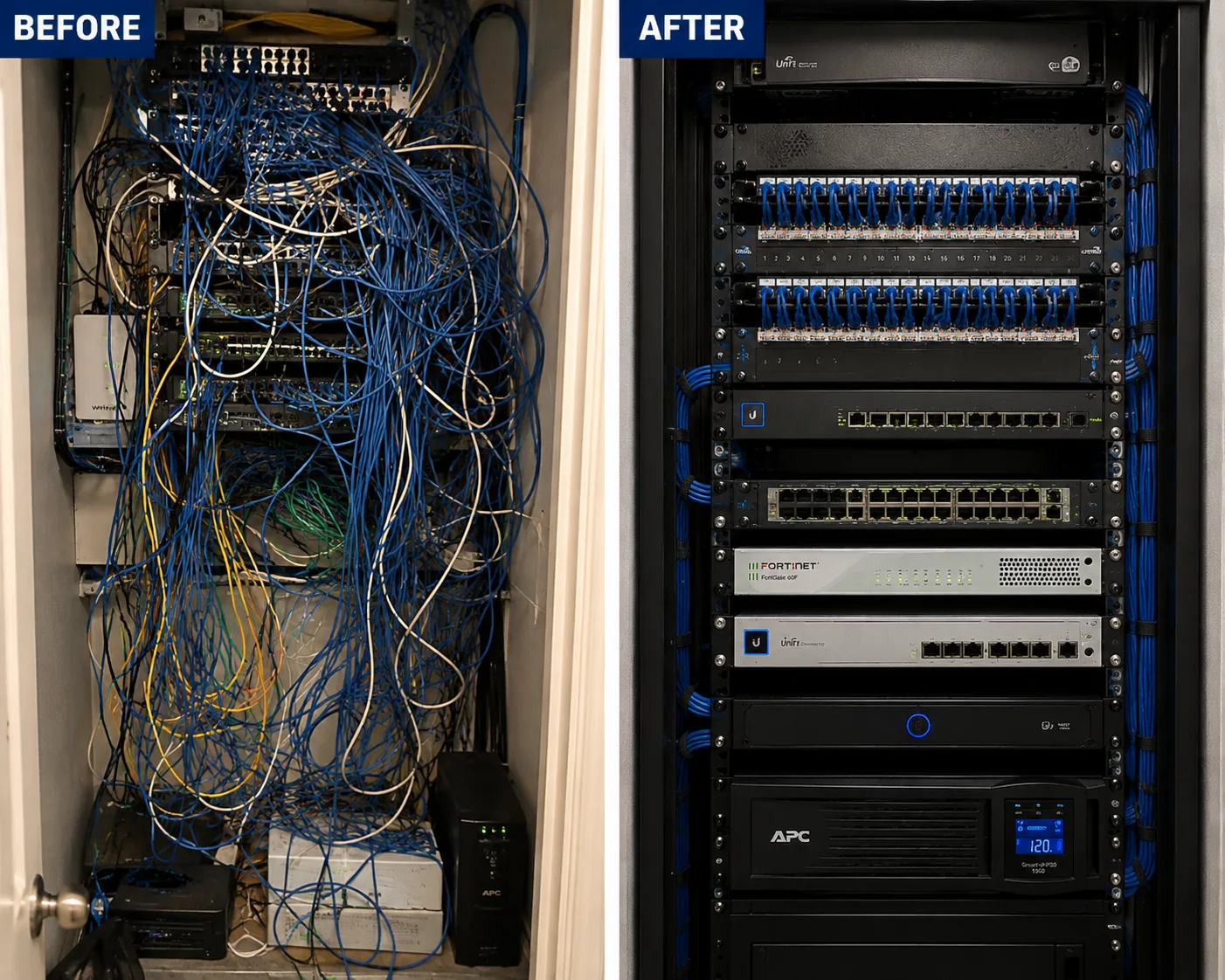

Cleanup on the retrofit side

In the county's older commercial cores the picture is the reverse: a room several occupants have added to over the years with nothing recorded. We trace, agree what is genuinely dead, remove it, re-route, re-terminate, dress, label and produce a map. It is unglamorous work and usually the most valuable day anybody spends on that network.

Documentation that fits into a building's closeout

On new construction the network handover is one package among many, and it is judged partly on whether it arrives in a form the rest of the closeout can absorb.

Every project finishes with the same set, whether the client is a general contractor assembling a closeout binder or an owner who has never opened a switch.

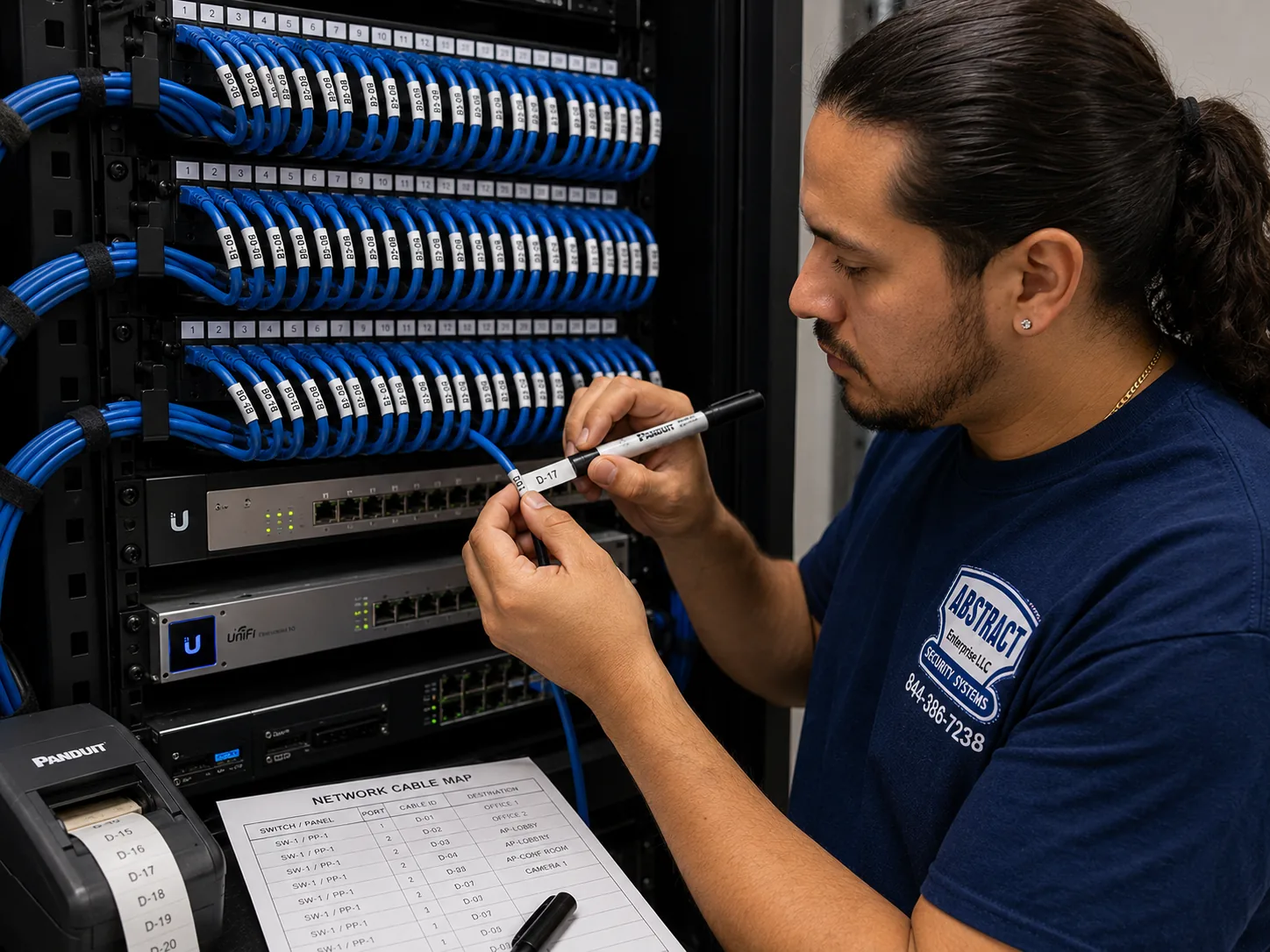

• A port map tying each panel port to its outlet, room and zone, in a naming scheme agreed with the client rather than invented by us.
• Labelling at both ends of every run, carrying the zone identifier, in a scheme that survives the space being reconfigured.
• Certification covering all drops installed, in place of a sampled subset — and on institutional work, in the format the specification calls for.
• As-built drawings showing every room, the fiber routes between zones, pathway, and radio positions indoors and out, issued alongside the other trades' as-builts rather than months later.
• A written addressing and VLAN record listing subnets, scopes, reservations, SSIDs and the segment behind each.
• An equipment schedule giving model, serial and firmware as handed over.
• Administrative credentials for every device configured, transferred at completion.

On new construction the timing of that package matters as much as its content. Documentation delivered when the building is signed off is documentation the owner actually receives; documentation promised for later frequently never arrives at all, which is how a two-year-old building ends up with no record of its own network.

On credentials, directly: some contractors retain administrative access to their own installations so that changing vendors means starting from nothing. Our practice is the opposite, and it is a point worth pinning down with anybody else bidding. It is your network. You get the keys.

What network installation costs in Orange County

Published line items at our New York City labour rates, with the county mileage allowance stated separately rather than folded into them. Switching, firewalls and radios are quoted on their own or supplied by you.

Design and survey

Installation and configuration

New construction lines

The first two rows are the whole argument of this page in one comparison. The difference is not a markup — it is fishing, patching and making good in somebody's finished space, and it is why the construction schedule matters more than the drop count.

Travel

Stated openly rather than buried in the hourly rate, so an Orange County project can be compared line for line against one closer to the city. Multi-day work is scheduled in consecutive full days rather than scattered half days, which keeps the allowance down and the crew productive.

Whole-network packages

Note that the new-build package starts below its retrofit equivalent. That is the rough-in window doing the work, and it is the only situation in this silo where the newer building is the cheaper job.

What moves the number

• Whether we are there during rough-in. The dominant variable on new construction in this county.
• How many zone rooms the plate requires. Distance decides it, not preference.
• Ceiling height, since a distribution deck means a lift for every position.
• Construction age on the retrofit side, where masonry raises the radio count and the labour on every drop.
• Exterior and between-building work on multi-structure rural properties.
• Institutional documentation requirements, which add real time on county, school and hospital projects.

Repair and service

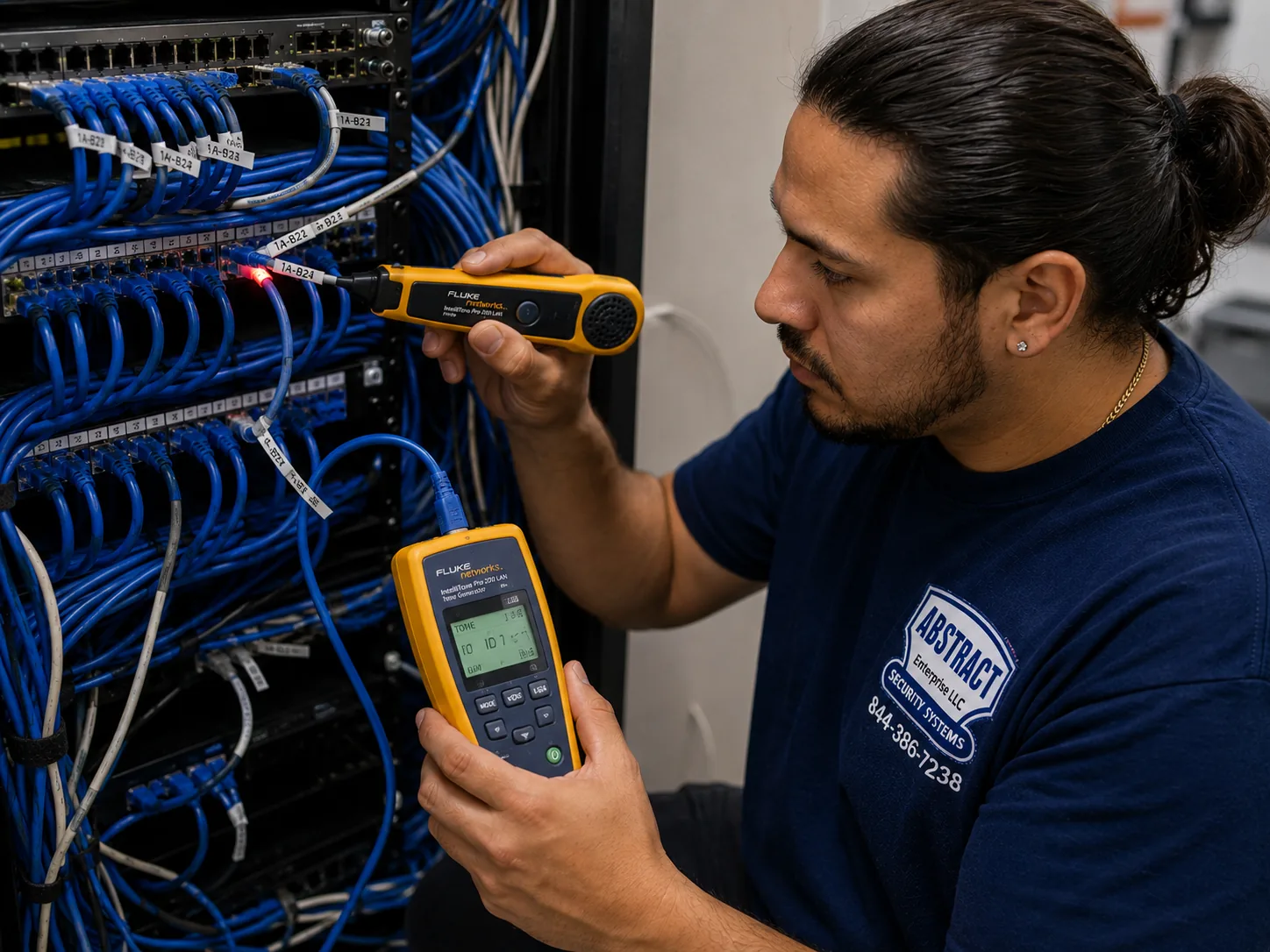

Existing-network fault-finding and repair is billed hourly at $195 with three hours as the minimum, plus the county mileage allowance. Next-day attendance in most of the county, and we will say honestly on the call which you are getting rather than afterwards. Where the visit becomes a quoted project, the hours are credited to it.

Three terms that are not interchangeable

They appear side by side in proposals and describe very different amounts of work.

On new construction the split has a scheduling consequence rather than a technical one. The rough-in window belongs to whoever pulls cable, and the configuration work happens weeks later — so when two firms hold those halves, the second one arrives to find positions chosen without reference to the design and a pathway that suited the puller rather than the network. One contractor holding both means the person specifying the radio positions is the person who has to live with them.

This is the Orange County page. It sits beneath network installation Hudson Valley, which in turn sits beneath the citywide hub at network installation NYC. The neighbouring counties are covered on network installation Rockland County and network installation Westchester County.

From programme to closeout

Five stages, and on new construction the first one is a calendar rather than a floor plan.

1. Get the schedule and the drawings together

   When the frame goes up, when the drywall closes, when the ceiling grid goes in, and when the building has to be signed off. Alongside that: what the plate is, how far the furthest position sits from each candidate room, and what the other trades have been allocated in the ceiling. On retrofit work this stage becomes a walk and an inventory instead.

2. Design, coordinate and quote

   Zone room count and placement, addressing, the VLAN scheme, switch capacity with room to grow, radio positions, the equipment schedule, and a pathway coordination drawing agreed with the mechanical, electrical and sprinkler trades. Priced line by line with the rough-in and retrofit rates shown side by side so the schedule consequence is visible.

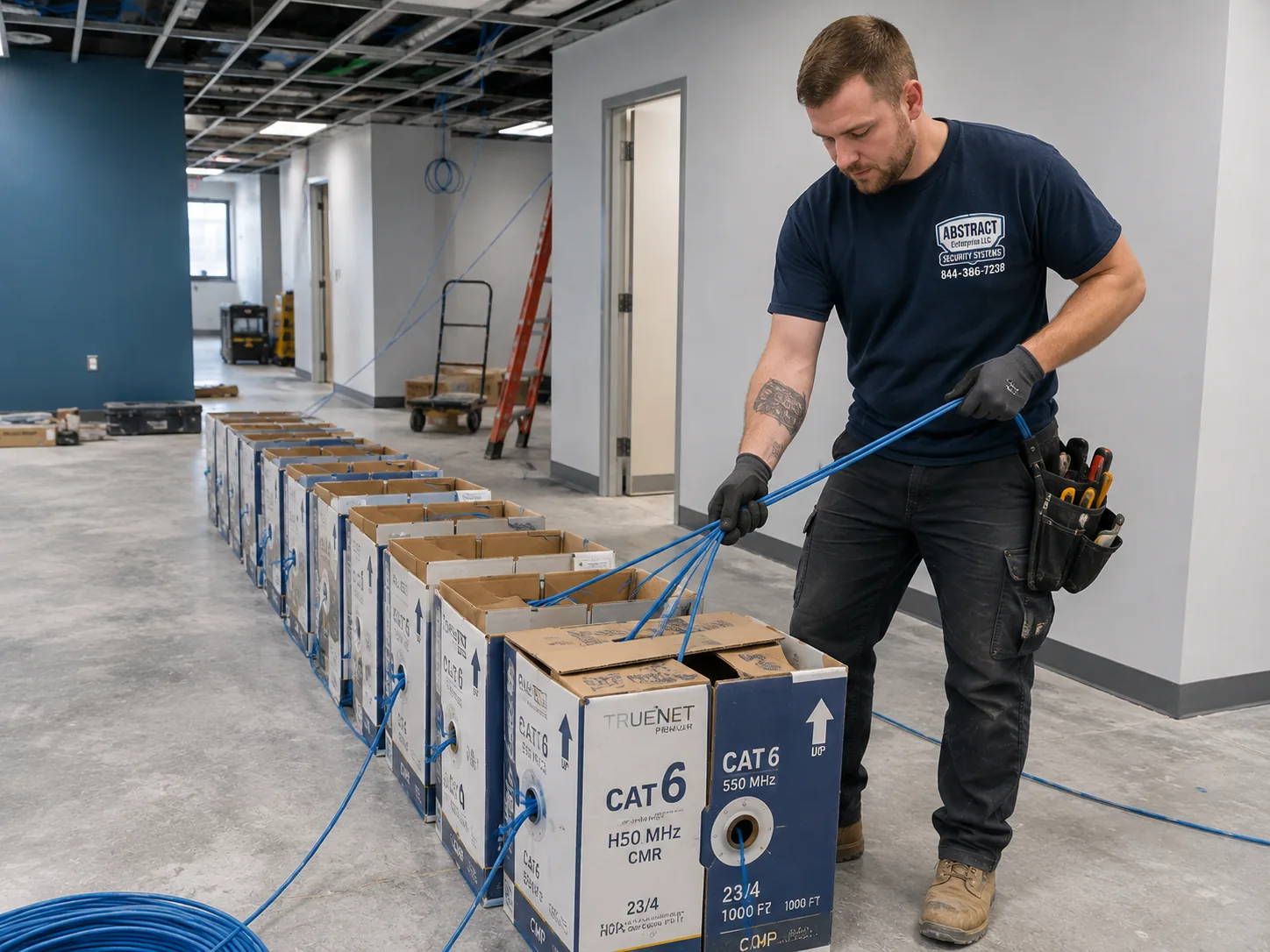

3. Rough-in, generously

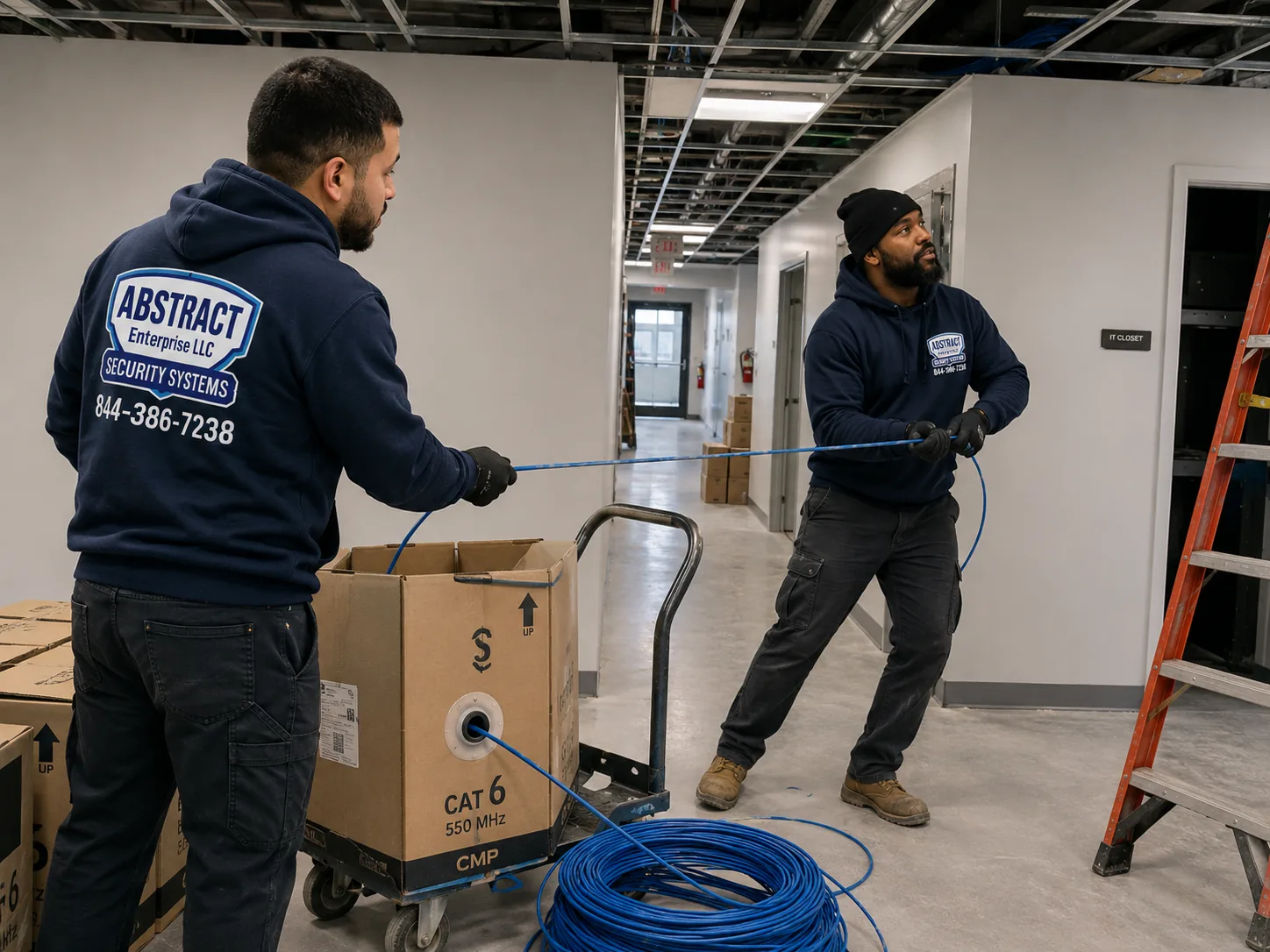

   Fiber between zone rooms first, then copper out to each zone while the walls are open — spare runs to positions that may be used, empty conduit to areas not yet fitted out, and a grade at ceiling positions chosen for the radios that will be there in a decade. Everything on supported pathway, firestopped at rated penetrations.

4. Rooms and equipment

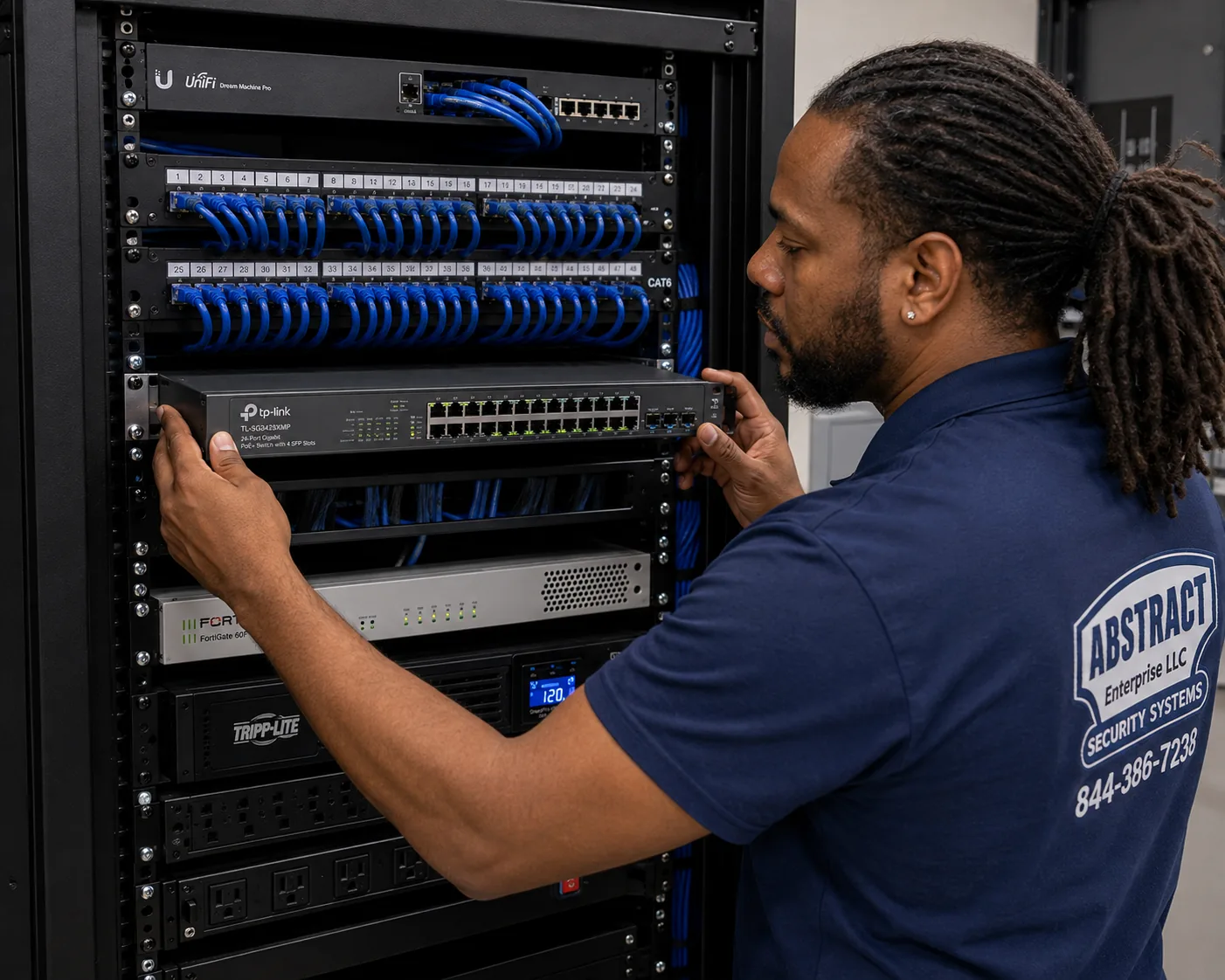

   Rack or cabinet in each zone room with panels, managers, power and battery backup. Switching, the edge firewall and radios fitted, configured and tuned, with the power budget proven under real load including winter draw on any exterior enclosure. A pre-ceiling validation check happens before the grid closes, while a position can still be moved for nothing.

5. Certify, validate and hand over

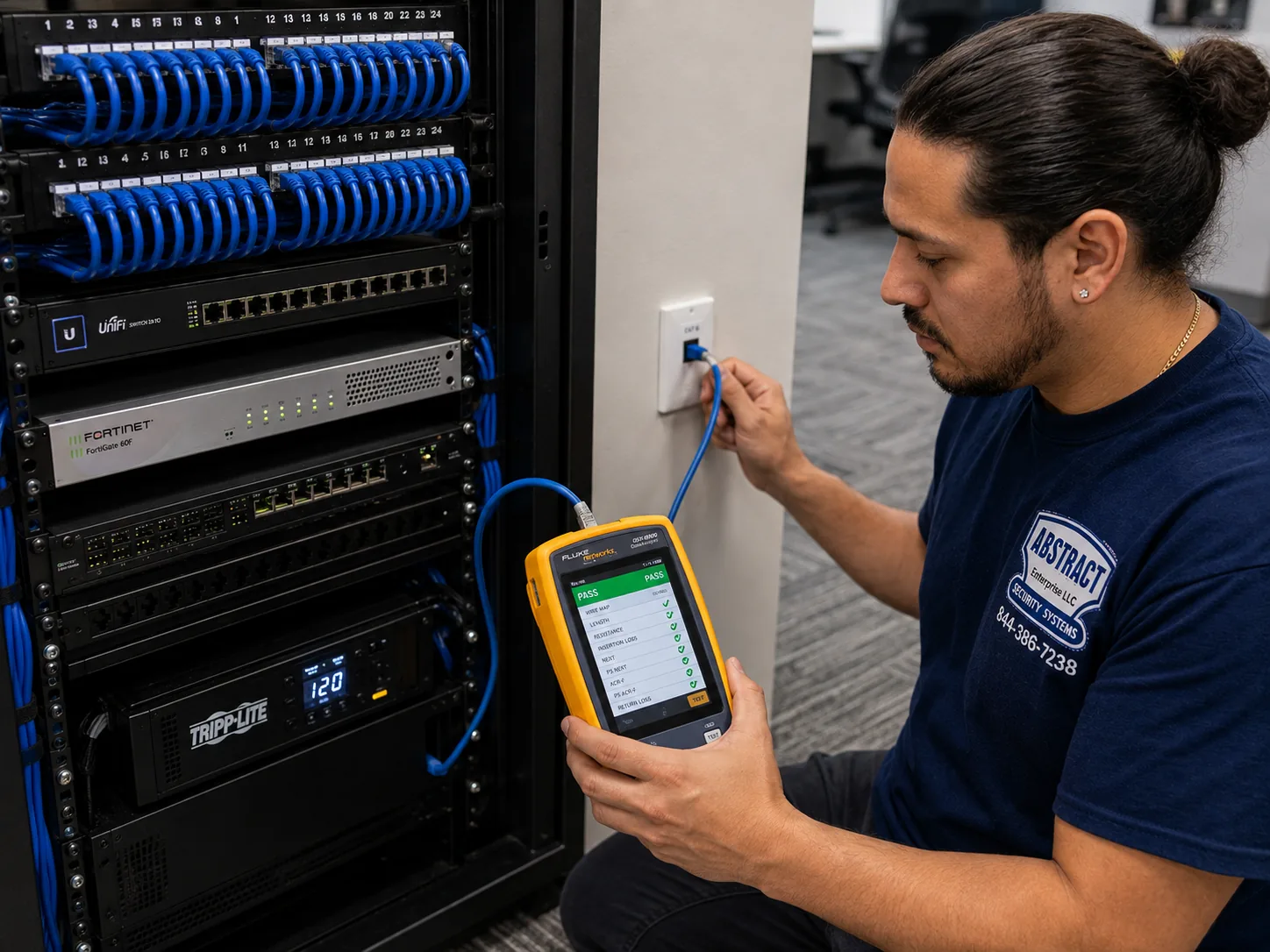

   Certification on all drops, and the fiber links tested alongside them. A validation walk that follows the routes handhelds actually take on a distribution property, or across the finished floor on an office one. Then the package — port map, as-builts in the closeout format, addressing record, equipment schedule and administrative credentials — delivered when the building is signed off rather than promised for later.

Orange County network installation questions we get

Where we install networks in Orange County

The whole county. What changes between corridors is whether the building is finished, and that changes everything else.

The Newburgh and Stewart corridor

Newburgh and New Windsor. The county's industrial and distribution centre, including the corridors around Stewart International Airport and the Route 17K and Route 300 approaches. Very large single-story buildings on flat sites, high decks, dock doors and racking, alongside Newburgh's older commercial core where the work is a straightforward masonry retrofit instead.

Montgomery and Maybrook. Newer distribution and logistics development along the I-84 corridor. Large-format buildings, frequently still in construction or recently completed, where the rough-in window is the whole conversation.

Marlboro, Newburgh's river edge and the Route 9W corridor. Mixed commercial, service and agricultural businesses, with multi-structure properties common.

Middletown and the county seat

Middletown. Medical, professional and municipal offices around the city centre, plus retail along the Route 211 corridor. The older downtown stock is masonry throughout — pathway created rather than allocated, walls that stop radio between rooms — while the Route 211 development is modern and straightforward.

Goshen. County government and legal offices around the county seat, plus professional and medical practices in older village buildings. Institutional documentation expectations on the government side.

Wallkill and Scotchtown. Retail, service and commercial development north of Middletown, most of it recent construction on the Route 211 and Route 17M corridors.

The Route 17 corridor and the south

Chester and Goshen's commercial edge. Newer commercial and light industrial development at the Thruway and Route 17 interchanges, much of it purpose-built within the last decade.

Monroe and Harriman. Retail, service businesses and commercial development along the Route 17 and Route 32 corridors, with substantial recent construction alongside older village commercial.

Woodbury and Central Valley. Retail, hospitality and commercial around the Route 32 and Route 17 junctions. High-footfall retail where trading hours dictate the schedule.

Highland Falls and Fort Montgomery. Small commercial, hospitality and institutional property at the Hudson's edge in the county's southeast corner.

The west and the villages

Warwick and Florida. Village professional offices, practices, hospitality, agriculture and wineries. Multi-structure properties on single parcels are routine, and outdoor coverage across yards and event space is a normal part of the scope.

Port Jervis and Deerpark. Older commercial and municipal property at the county's western edge. Masonry construction throughout the older stock, and travel time that makes full-day scheduling the sensible approach.

Cornwall and Cornwall-on-Hudson. Small professional and medical practices, retail and institutional property in village buildings, many converted from other uses.

This page sits under network installation Hudson Valley. The cable plant these networks run on is covered on structured cabling installation Orange County, and cable grade and per-drop pricing on Cat6 installation Orange County.
