Network Installation Westchester County

What a Westchester network installation covers

Very little commercial space in this county is being networked for the first time. Almost every suite we walk has been fitted out before, sometimes three times, and what previous tenants left behind is the first thing the scope has to deal with.

• An inventory before a design. What is physically in the ceiling and the closet, how much of it is live, how much belongs to a tenant who left in 2019, and which of it is worth keeping. Nothing gets designed around an assumption about existing plant.
• A conversation with property management. Insurance requirements, access arrangements, house standards for pathway and firestopping, and what the landlord expects to happen to abandoned cable at the end of a tenancy.
• A written design. Addressing, the VLAN scheme, switches sized with capacity to spare, radio counts and positions, and the equipment list.

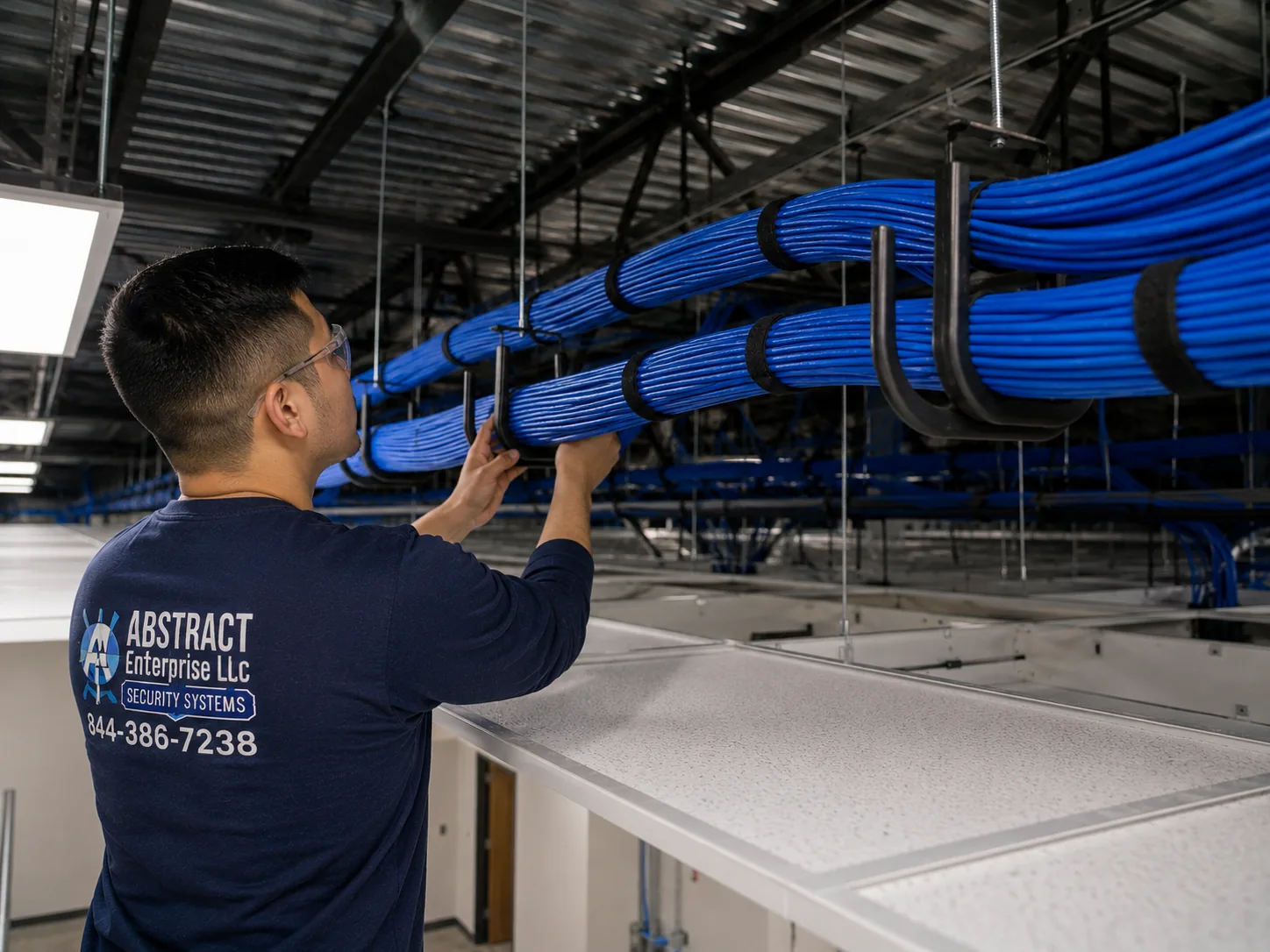

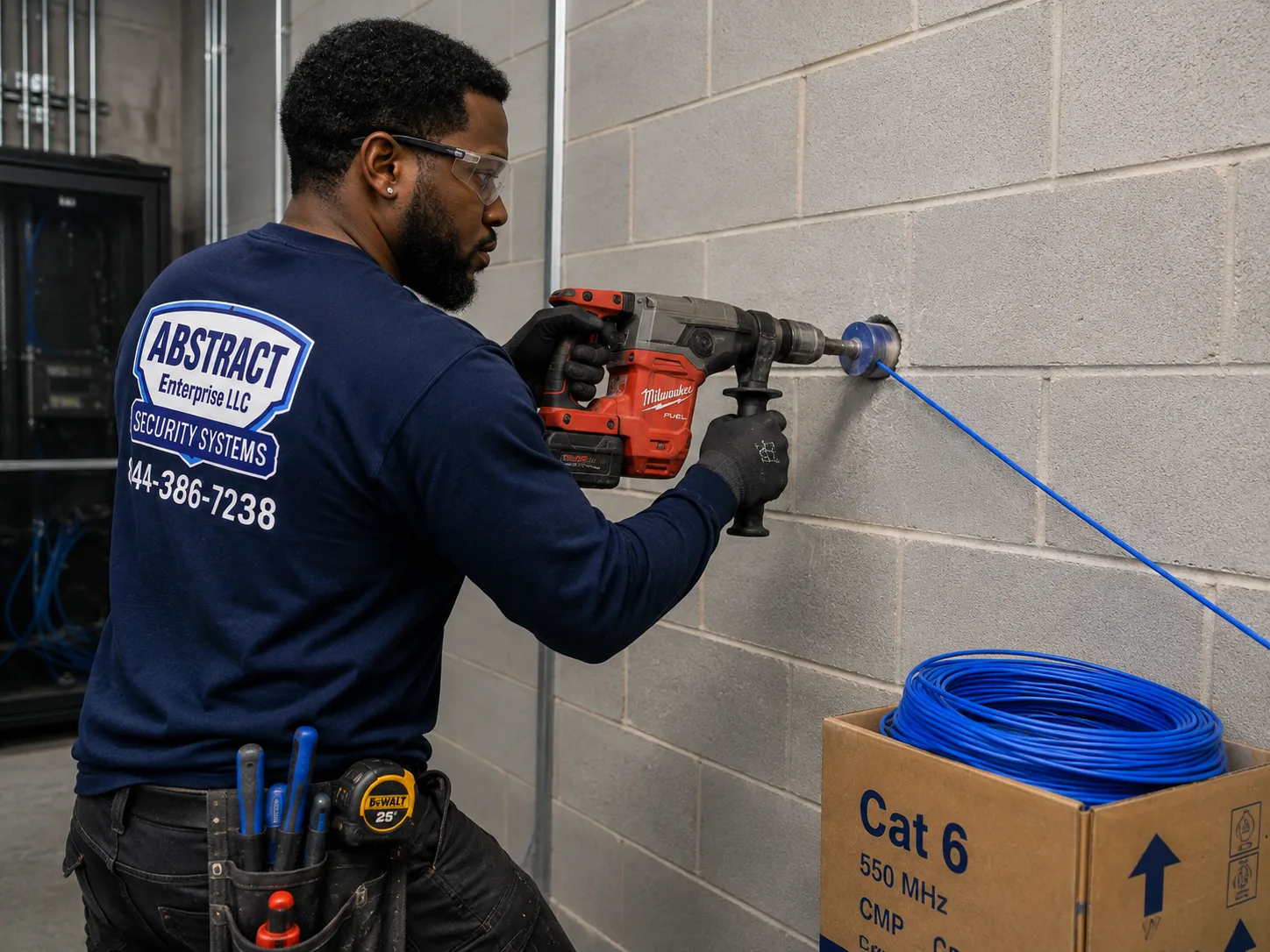

• The plant. Cable on supported pathway, plenum-rated where a ceiling serves as a return, firestopped at rated penetrations, terminated on matched components and certified across every run.
• The closet. Network rack or cabinet, panels, managers, protected power and battery backup, dressed and tagged at both ends.

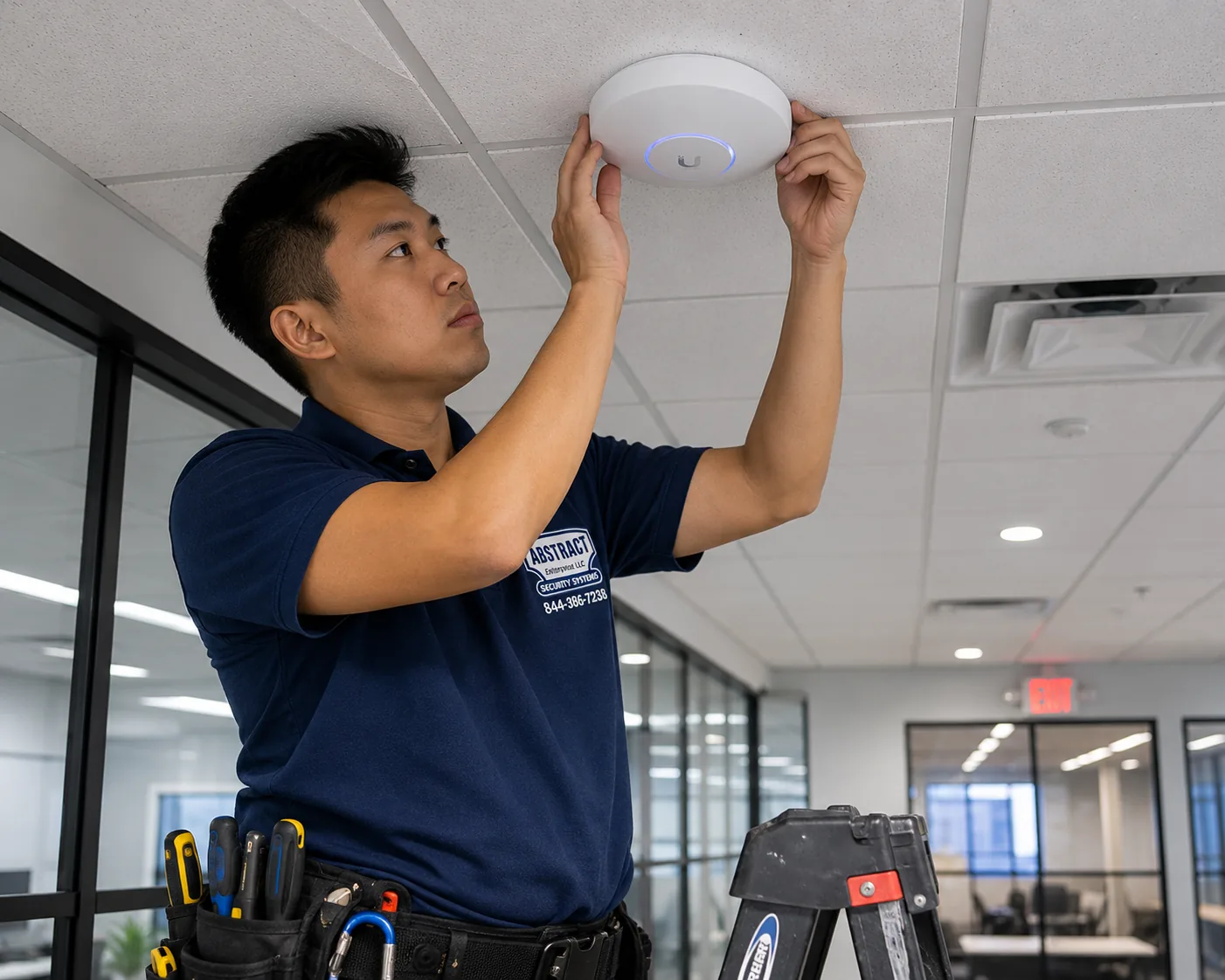

• The active layer. Switches, the edge firewall and the radios — installed, configured, tuned and shown working.
• Handover. Port map, as-built, addressing record, equipment list with serials, and the administrative credentials.

Itemised rather than absorbed: rack hardware, panels, switches and firewalls where we furnish them, conduit where the house standard demands it, firestop materials, coring, removal of abandoned cable where the landlord requires it, and evening crews. That last removal line is a genuine Westchester cost and one that surprises tenants who never installed the cable in question.

Four kinds of Westchester commercial property

The address tells you the construction, and the construction tells you how the job runs.

Corporate towers and office parks

White Plains along Westchester Avenue and the Bloomingdale Road corridor, the Platinum Mile, Purchase, Rye Brook and Harrison. Purpose-built commercial with real telecom rooms on each floor, stacked closets, proper risers, drawings that match the building and drop ceilings designed as HVAC returns. Technically the easiest work in the county. The overhead is administrative: certificates of insurance to a managing agent's wording, coordinated access, and in the larger White Plains buildings the same freight and after-hours arrangements a Midtown tower would impose.

Suburban flex and light industrial

Elmsford, Greenburgh, Hawthorne and the Saw Mill River Road and Route 9A corridors. Single-story buildings with an office front and shop or warehouse behind, which means two designs under one roof: conventional coverage in the front, high-bay wireless and an operations segment at the back. Slab construction, provider circuits entering wherever the utility found it convenient, and a demarc extension on most jobs.

Prewar downtown and mixed-use

Yonkers along South Broadway and Nepperhan Avenue, downtown New Rochelle, Mount Vernon, Port Chester. Masonry construction, some substantial and old, retail below with offices, clinics and community organisations above. Thick walls, plaster in the older stock, no dedicated telecom space, and pathway created rather than found. Radio behaves considerably worse than the floor area implies.

Village main street and converted residential

Tarrytown, Sleepy Hollow, Larchmont, Scarsdale, Bronxville, Katonah. Small professional offices, medical and dental practices in older buildings, frequently converted from houses. Tight tenancies, plaster over lath, no equipment room, and a handful of decisions carrying disproportionate weight because there is no space for spare hardware.

Institutional and medical campus

Hospital corridors, county facilities, colleges and school districts across the county. Multiple buildings, infrastructure of mixed vintage, documented standards to work within, and procurement expecting certification results, drawings and insurance paperwork as contract deliverables.

VLANs in a leased corporate suite

Segmentation costs an hour on a switch you were buying anyway, and it is the single most common omission in a network somebody inherited with a suite.

On an unsegmented network, any device that connects can reach any other. In a corporate tenancy that puts a visiting client's laptop, the conference room display, the building's own thermostat if it landed on your subnet, and the machine holding privileged files on the same street. None of that requires bad intent to become a real exposure.

That final row is specific to this county. In a suite with layers from previous tenancies there is often equipment nobody can fully account for that somebody insists must keep running. Fencing it onto its own segment is a better answer than either removing it blindly or leaving it on the staff network.

When a survey earns its cost in this county

A survey is a measurement rather than a sales instrument, and Westchester splits neatly into buildings that need one and buildings that do not.

A predictive survey works out likely coverage from drawings and the stated construction. On a modern corporate floor with accurate plans that is close enough to design against. An on-site survey puts a meter in the space and records actual signal, the neighbouring networks you will compete with, and how the specific walls in front of you behave.

Worth paying for

• Any prewar building. Masonry and plaster over lath cannot be modelled honestly, and getting the count wrong is the most common reason a wireless job here gets done twice.
• Multi-tenant floors in the White Plains stack, where the spectrum you share has to be measured before channels can be planned sensibly.
• Flex buildings with a warehouse portion, because racking and stock cannot be predicted from a floor plan.
• Any suite where a previous WiFi installation already failed, since the survey establishes whether the fault was count, placement, spectrum or the building — which decides whether the existing radios can be reused.

Not worth paying for

A modern corporate suite under roughly 4,000 square feet with glass partitions and a normal device count does not need a paid survey to reach a defensible radio count. We say so rather than sell one, and the fee buys another radio instead. The survey is $450 and comes off the project price. The validation walk after installation — a meter carried across the finished floor and into every enclosed room — is part of every project regardless.

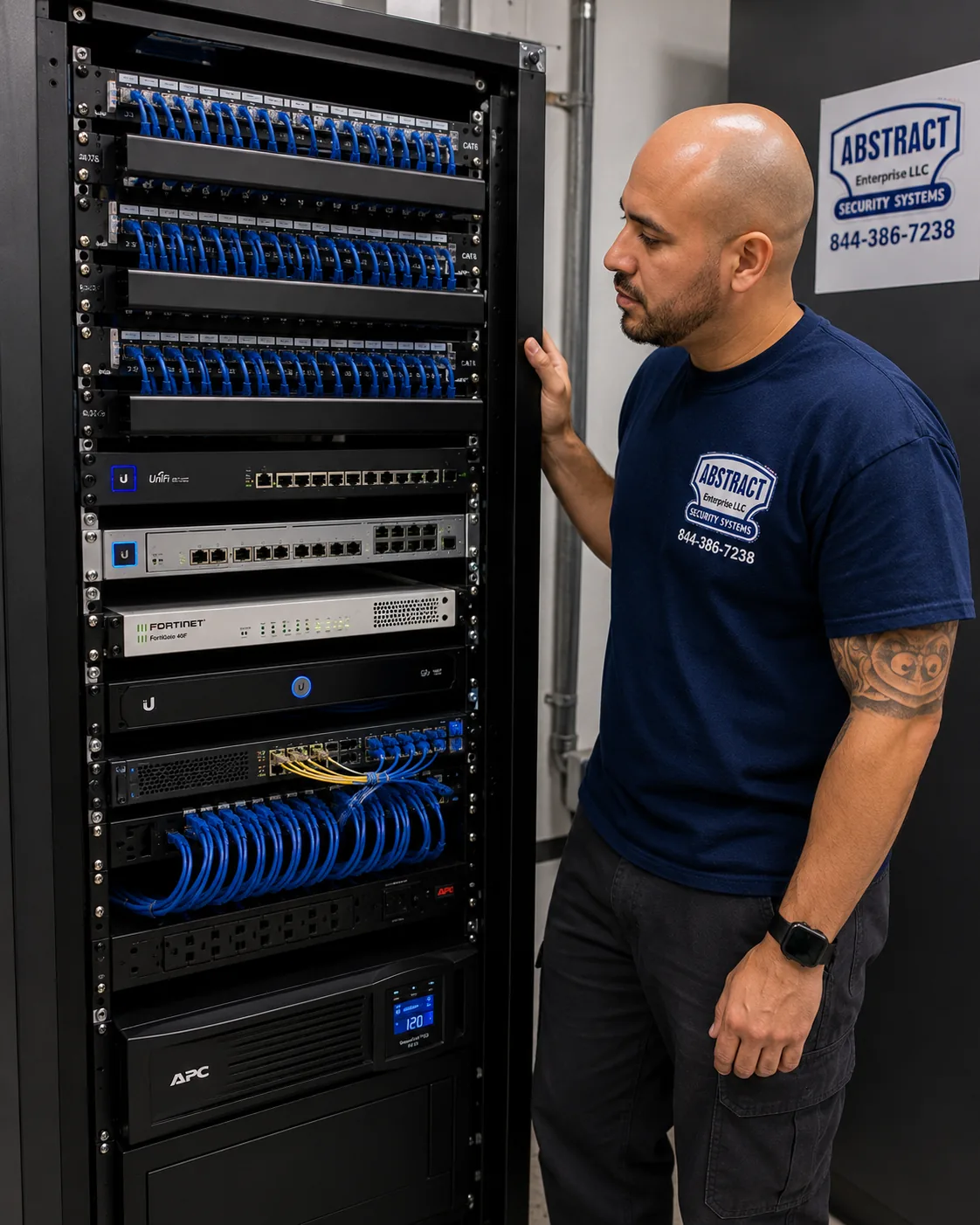

The network rack, and leaving it better than you found it

In a leased suite the closet is the one piece of the installation the next tenant inherits. That is a reason to build it properly rather than merely adequately.

A good result is unremarkable to look at: panels at the top, switching below, short cords in consistent colours through managers, tagged throughout, with space left to grow. A poor one is equipment stacked on itself with a nest of cords in the middle, a power strip on the floor and nothing marked — which costs an hour of somebody's time on every future fault, in a building where that visit needs insurance on file and access arranged.

What belongs in it

• Network rack or wall cabinet sized for the tenancy and for the space the landlord actually provided, which is frequently smaller than the design assumed.
• Patch panels with ports in reserve, because panel capacity is the hardest element to add once a suite is occupied.
• Managers horizontally and vertically, which separate a rack somebody can service from one that is merely populated.
• Power. A dedicated circuit where the building permits, a PDU in the rack, and battery backup sized to the load.
• Bonding to building ground at every point the installation calls for it.
• Tagging on every port, panel and cable end, agreeing exactly with the port map.

Heat in a landlord's closet

The space provided for tenant equipment is often an interior room with no supply air and a door that stays shut. A sealed cabinet holding a switch delivering three hundred watts becomes an oven by August, and heat produces the intermittent, temperature-correlated faults that take days to pin down. Venting the door and adding a fan kit handles most of it. Where it does not, the conversation belongs with the building about air rather than with the tenant about tolerating it, and it is worth having at design stage rather than in the second summer.

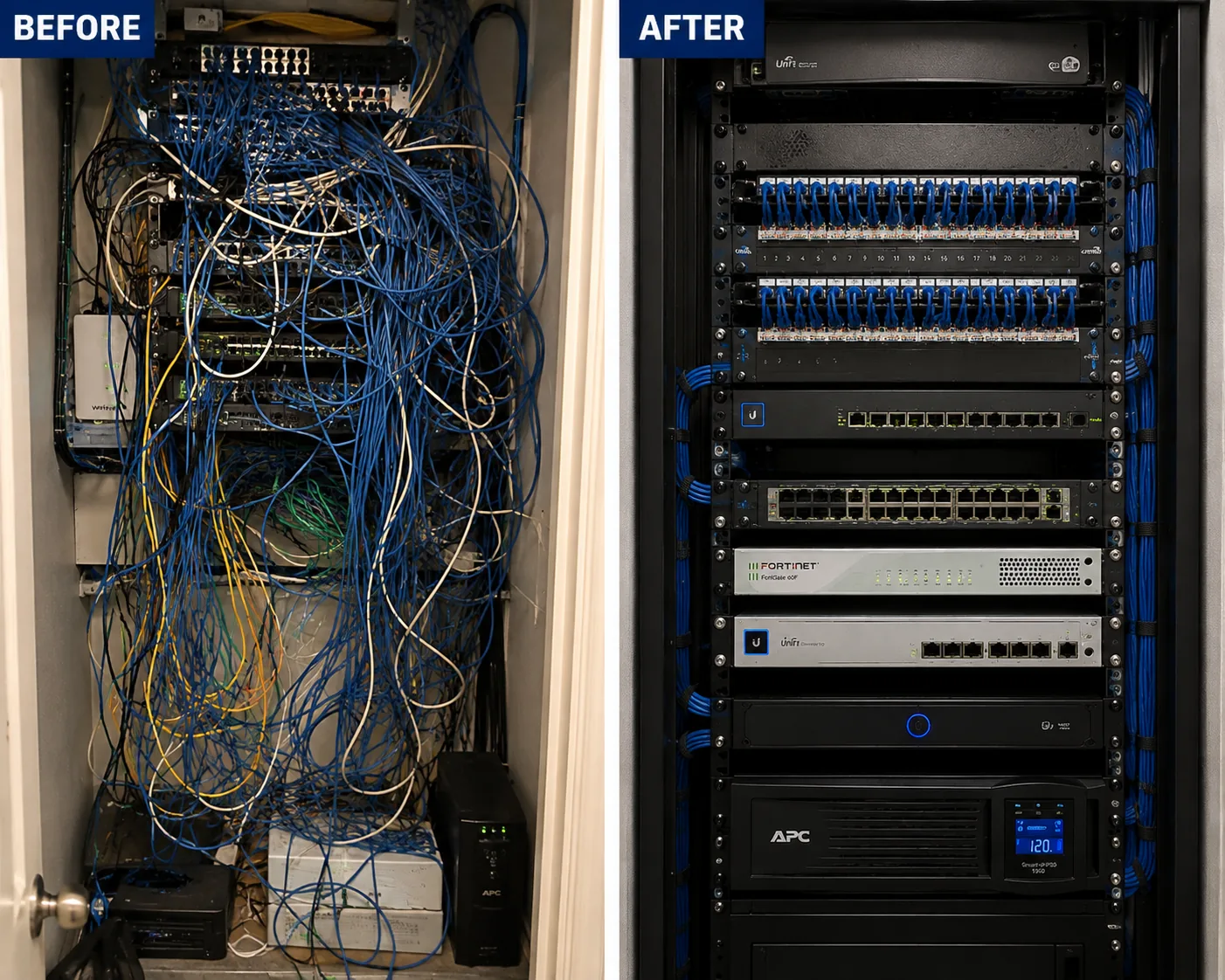

Cleanup as a project of its own

A large share of our county work is not a fit-out at all. It is a closet several tenancies contributed to, where nobody can say what is live. We trace, agree what comes out, remove it, re-route, re-terminate, dress, tag and produce a map. On a leased floor that day converts every future fault from an investigation into a lookup, and it is the work landlords most often ask about at lease end.

Documentation, and what survives a lease change

The reason so much Westchester plant is undocumented is that each tenant assumed the next would start fresh. The records are the only part of an installation that breaks that cycle.

Every project closes with the same set, whether the client has an IT director or an office manager who has never logged into a switch.

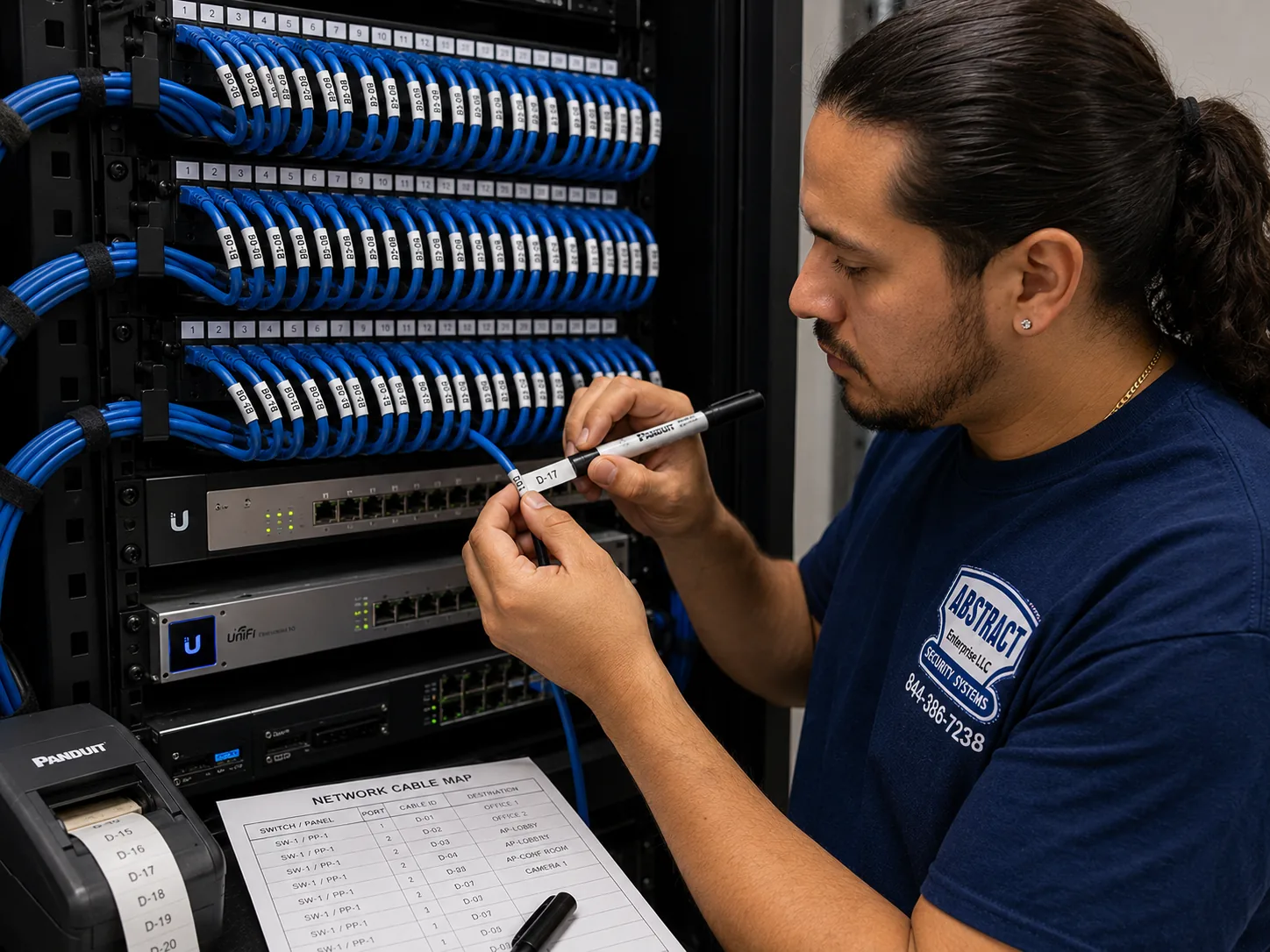

• A port map linking every panel port to the outlet and room it serves. In a suite with layered history this becomes the first accurate record the space has ever had.
• Tagging at both ends of every run, in a scheme that still reads after the floor plan changes — which in leased space it will.
• Certification results across the whole drop count rather than a sample.
• As-built showing closet position, pathway, riser entry and radio locations.
• The addressing and VLAN plan written down: subnets, scopes, reservations, SSIDs and the segment each belongs to.
• Equipment list with models, serials and firmware at handover.
• Administrative credentials for everything we configured, transferred at completion.

One item earns its place specifically in leased space: a record of what was found and what was left. If the lease requires abandoned cable removal at the end of the term, the tenant who can show what was already there when they arrived is in a considerably better position than the one who cannot.

On credentials, plainly: some contractors retain administrative access to their own work so that changing vendors means rebuilding from nothing. We do not, and it is a question worth putting to every firm you ask. It is your network. You get the keys.

What network installation costs in Westchester

Published line items at our New York City labour rates. Westchester carries no mileage allowance — it is a core market. Switches, firewalls and radios are quoted separately or supplied by you.

Design and survey

Installation and configuration

Leased-space lines

Listed separately because they are what leased corporate space actually involves, and because a bid that assumes an empty shell will not include any of them. The found-condition record is inexpensive and repeatedly useful at lease end, when a landlord asks who installed what.

Whole-network packages

What moves the number

• How many previous fit-outs the suite has had. The most consistently underestimated variable in this county.
• Construction age. Prewar masonry raises the radio count and the labour on every drop.
• House standards for pathway, firestopping and abandoned cable, which vary considerably between managing agents.

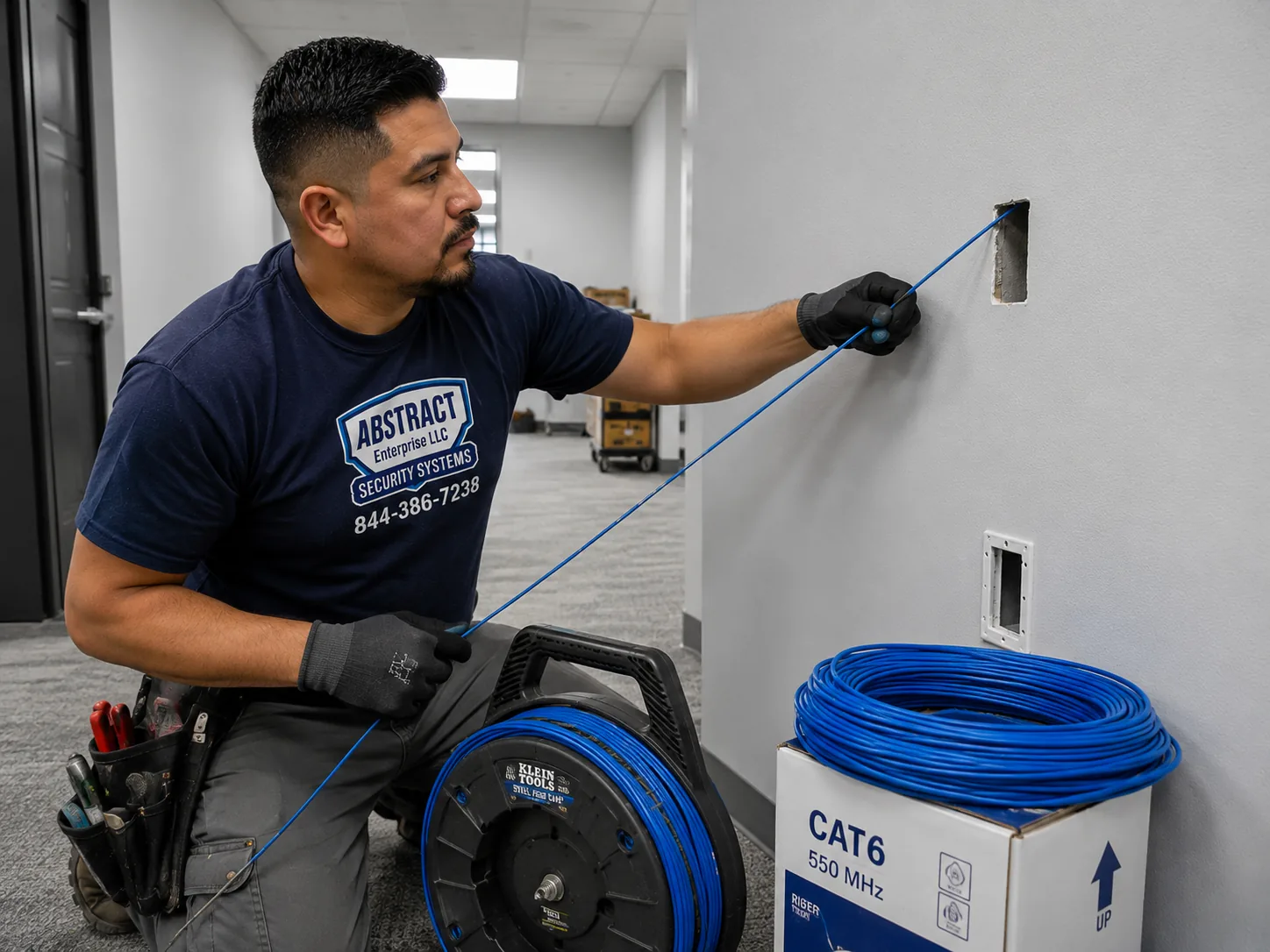

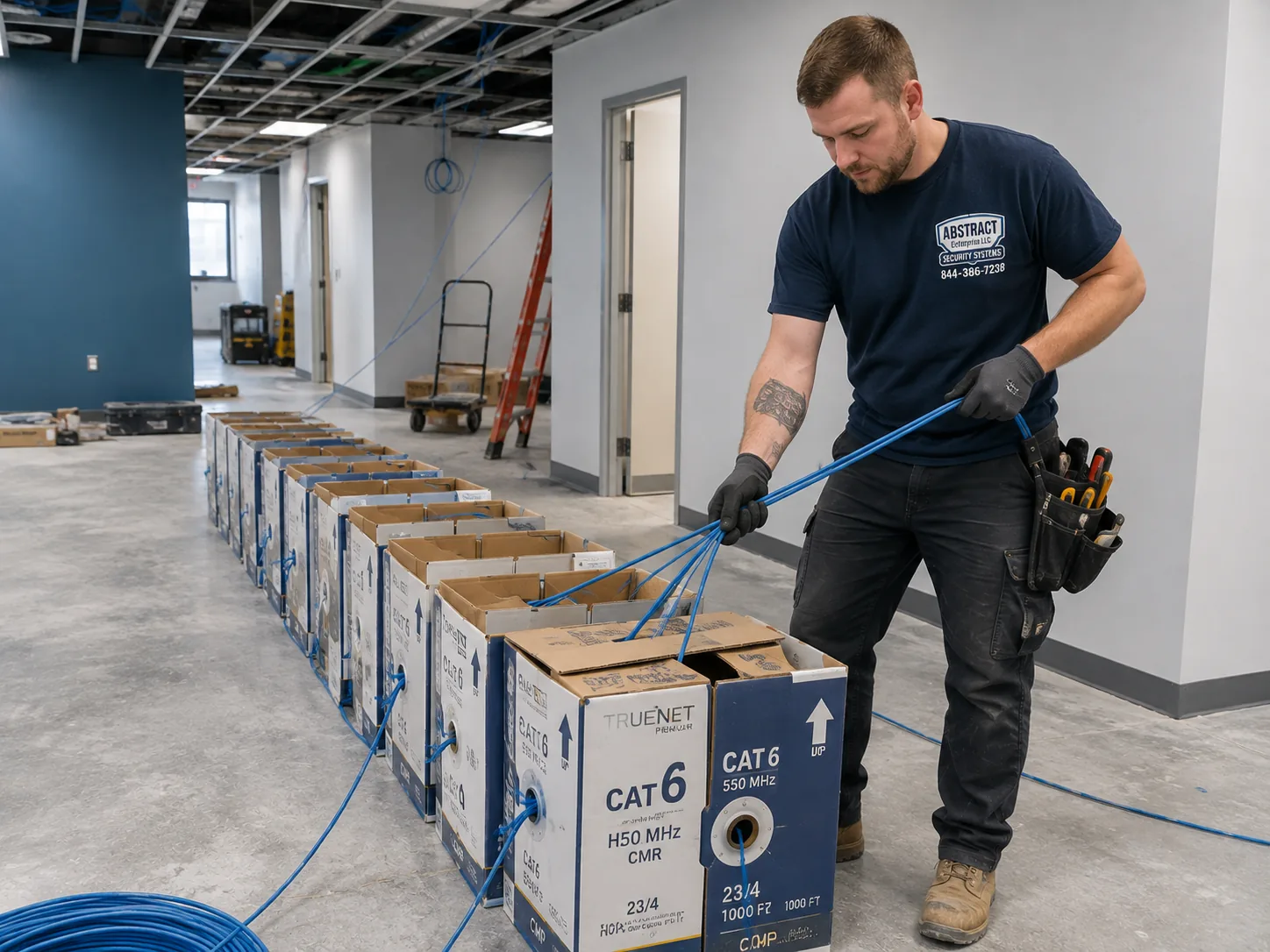

• Cable installed before drywall closes versus fished afterwards, which is the largest single saving available on a fit-out.
• Ceiling height, since a warehouse portion above fourteen feet needs a lift.
• Occupied space, which pushes work to evenings and Saturdays.

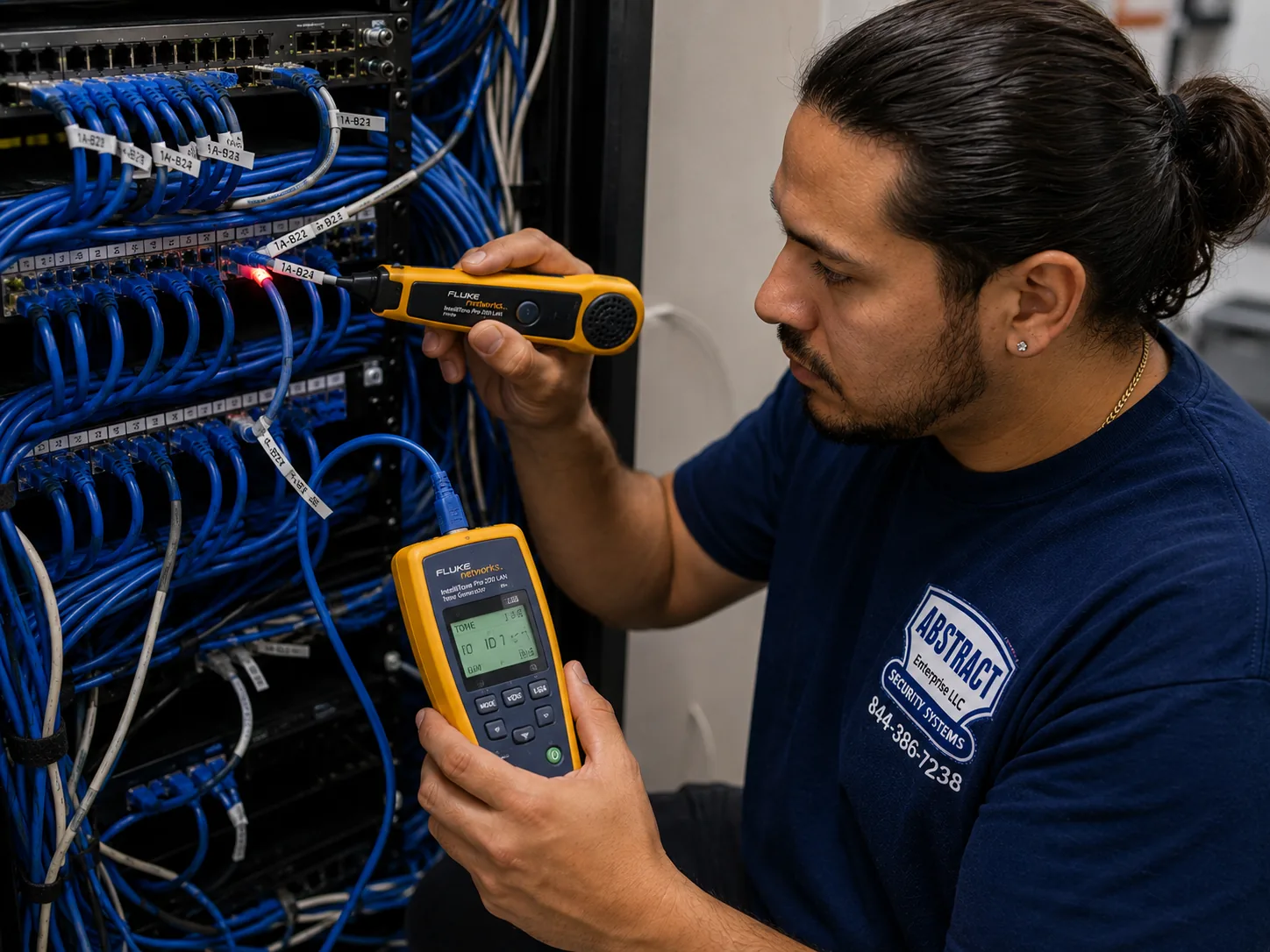

Repair and service

Diagnostic and repair work on an existing network runs at $195 per hour with a three-hour minimum. Same-day dispatch across the county for outages, subject to building access. If the attendance becomes a quoted project, the hours are credited to it.

Network installation, structured cabling and Cat6

Three terms used interchangeably in proposals that describe very different amounts of work.

The Westchester consequence of splitting them is specific to leased space. A cabling contractor working from a scope written by somebody who never opened the ceiling will install a new layer on top of the existing three rather than resolving them, because resolving them was not in their scope. The suite then has four layers instead of three, and the next tenant inherits a worse problem than you did.

This is the Westchester county page. It sits under network installation Hudson Valley, and the citywide hub is network installation NYC. The neighbouring county to the west is covered on network installation Rockland County.

From walkthrough to closeout

Five stages, and the first one involves a ladder and a ceiling tile before it involves a drawing.

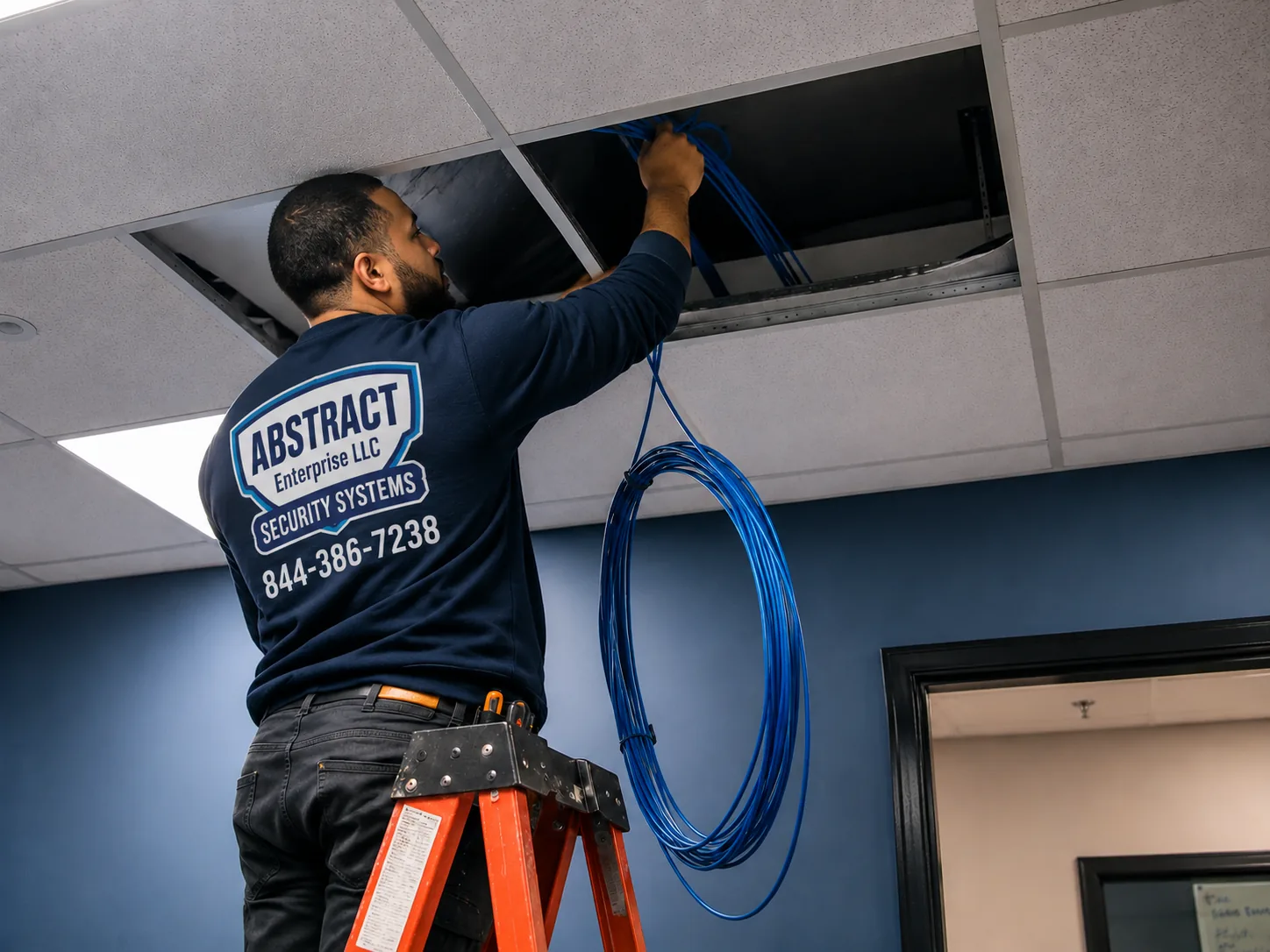

1. Open the ceiling and inventory what is there

   What previous tenancies left, how much of it is live, where the closet is and what is already in it, how the circuit reaches the floor, and what the walls are made of. In parallel we contact property management about insurance, access and house standards. The inventory produces the scope; a scope written without one is a guess.

2. Design and quote against what was found

   Addressing, the VLAN plan, switches sized for a lease term rather than an opening-day count, radio positions for the construction actually present, the equipment list, and a line-item price with the leased-space lines shown separately. Anything proposed for removal is listed explicitly.

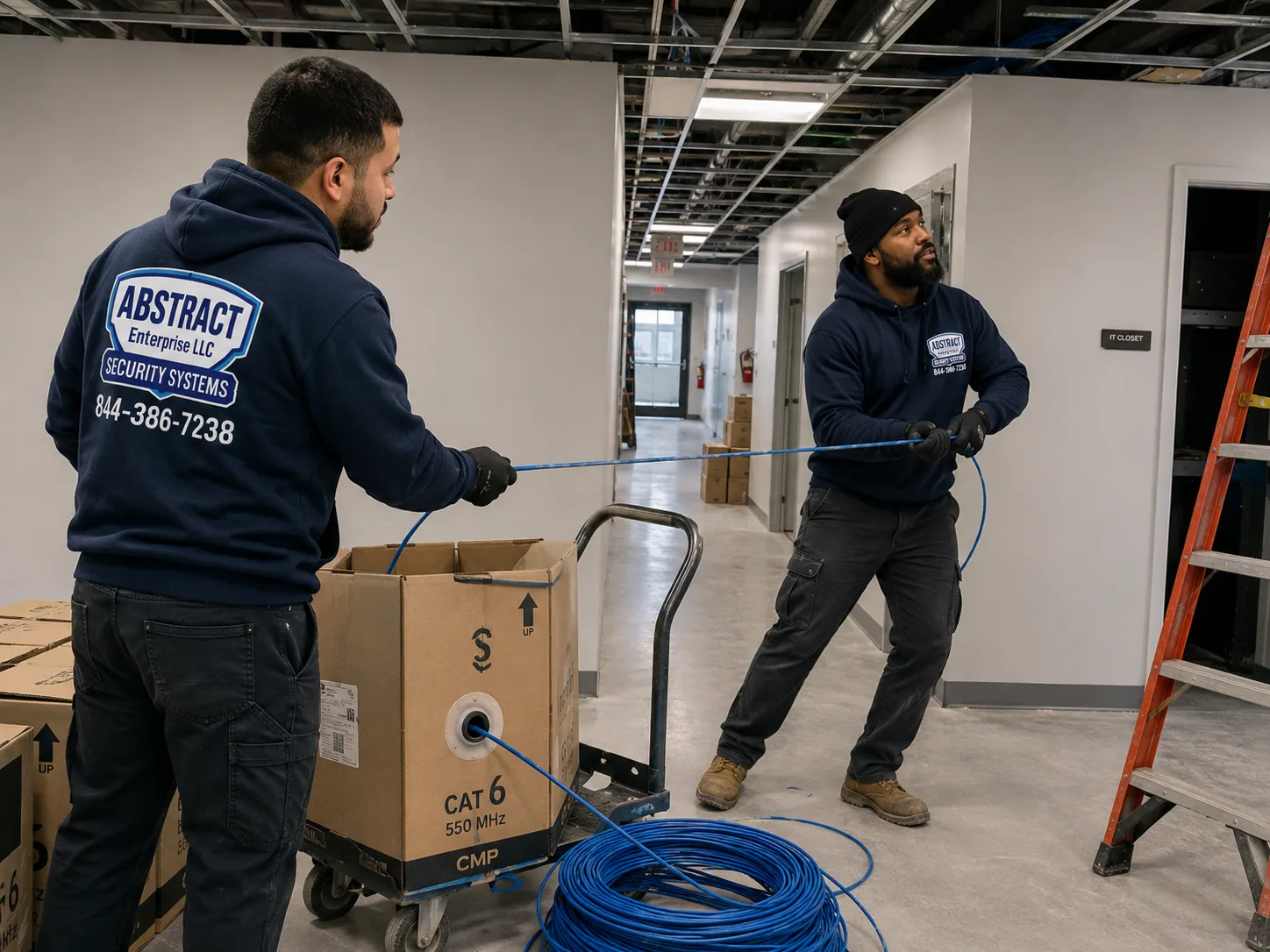

3. Clear, then install

   Agreed removals come out first so the pathway is available, then cable on supported pathway, plenum-rated where the ceiling is a return, firestopped at rated penetrations. On a fit-out this happens before drywall closes; in an occupied suite it happens after hours with the floor restored each night.

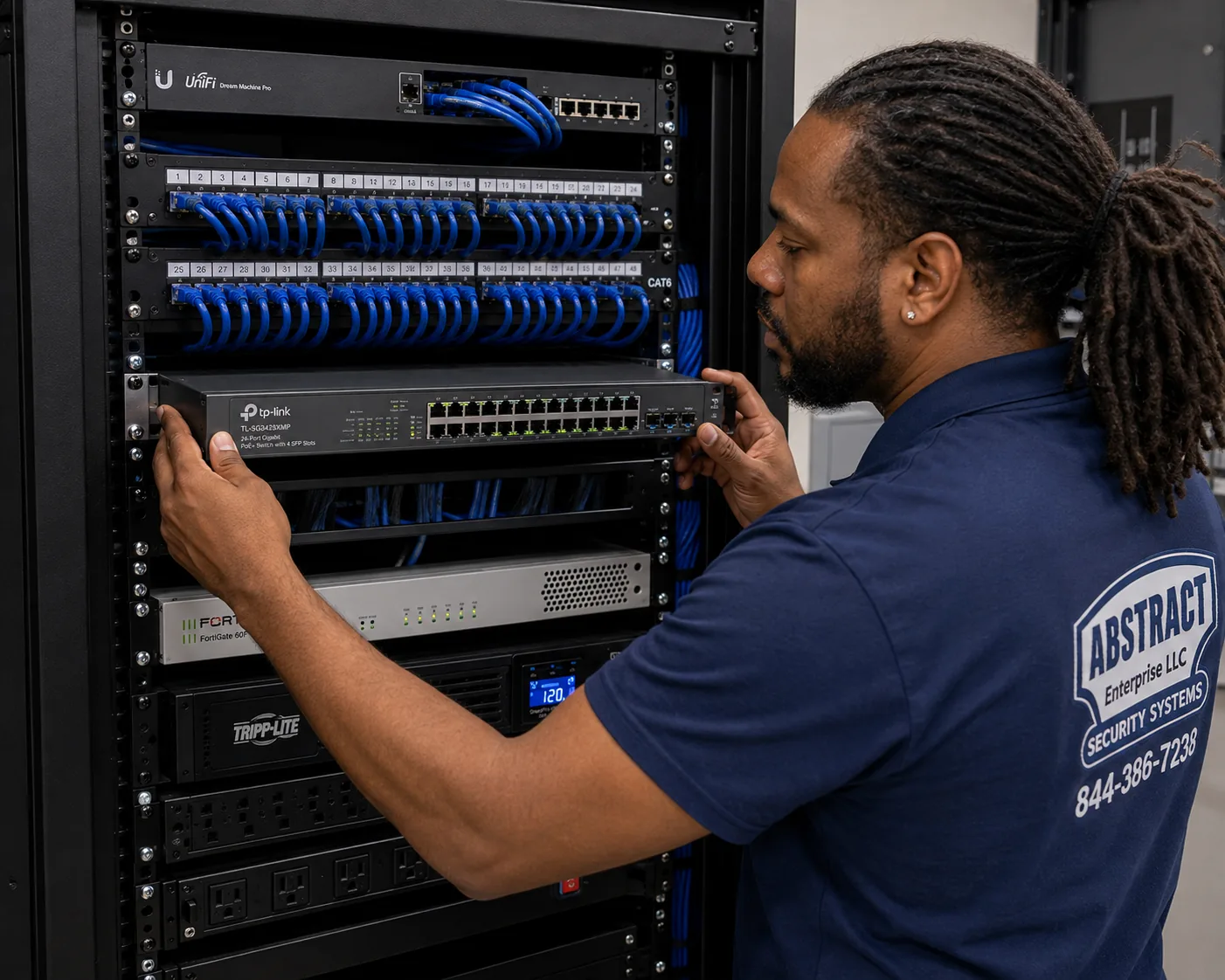

4. Closet and equipment

   The frame or cabinet goes in with its panels, managers, power feed and UPS. Switching, the edge firewall and radios mounted, configured and tuned — VLANs, SSIDs, a deliberate channel plan rather than automatic selection, DHCP, firewall policy, and the power budget verified under real load.

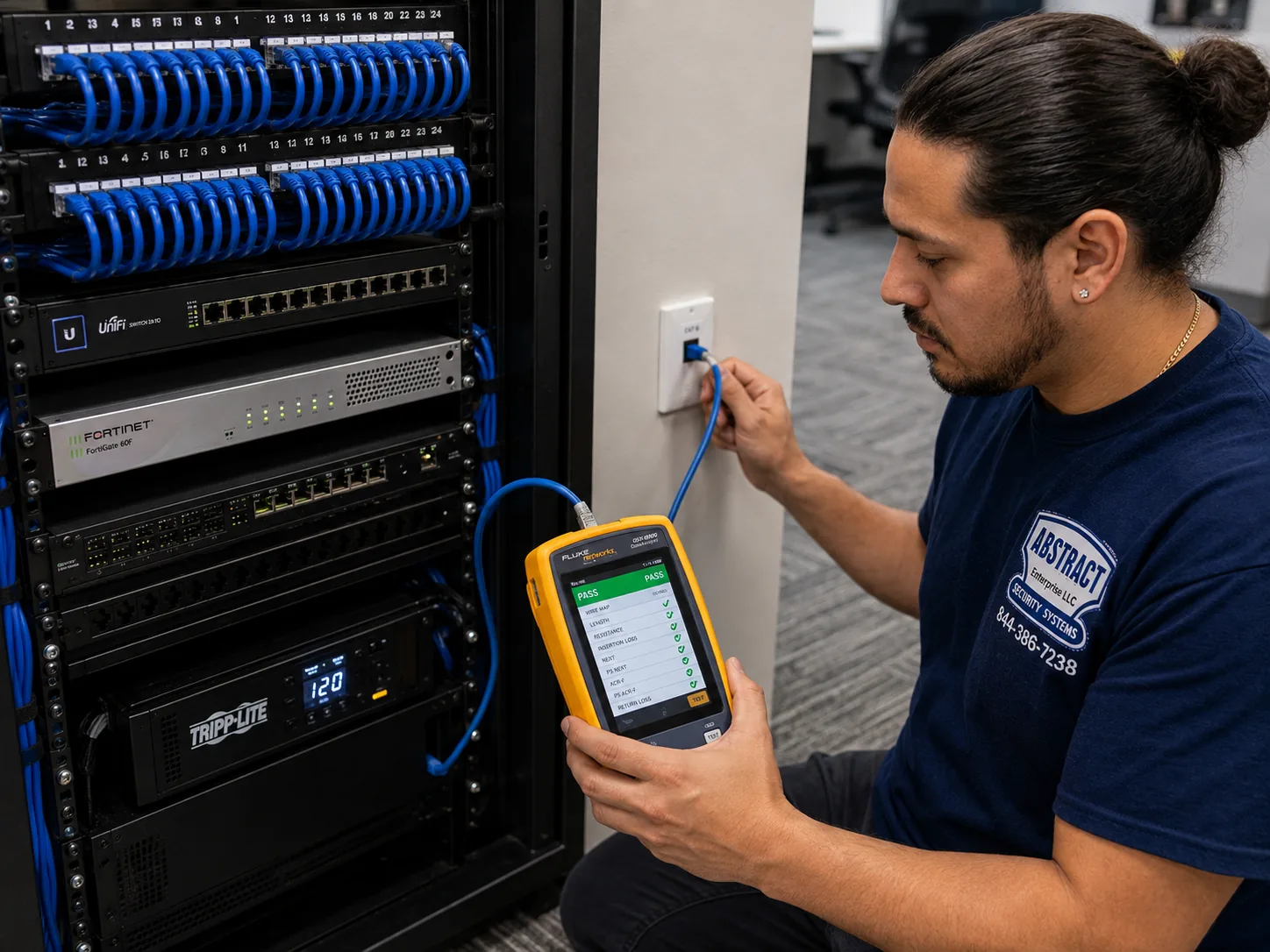

5. Certify, validate and hand over

   Certification runs across the whole drop count. A validation walk with a meter across the finished floor, including the rooms behind older walls where a design is most likely to have been optimistic. Then the package — port map, as-built, addressing plan, equipment list, found-condition record and administrative credentials — walked through with whoever will support it.

Westchester network installation questions we get

Where we install networks in Westchester County

The whole county. What changes between corridors is the building age, and the building age is the job.

White Plains and the corporate core

Downtown White Plains — Westchester Avenue, Main Street and the Court Street district. The county's largest concentration of corporate office space. Towers with proper telecom rooms and stacked closets, managing agents with exacting insurance requirements, and multi-tenant floors where channel planning matters as much as coverage.

The Platinum Mile and the Bloomingdale Road corridor. Purpose-built office parks along and either side of the Cross Westchester Expressway. Modern construction, accurate drawings, real risers — and a very high rate of tenancy turnover, which is where the layered-plant problem is at its most pronounced.

Purchase, Rye Brook and Harrison. Corporate campus territory: low-rise office buildings on landscaped parcels, frequently several structures under one tenant. Existing infrastructure of varying vintage that usually needs surveying before anything new is designed.

The river corridor

Yonkers — South Broadway, Nepperhan Avenue and the waterfront. The widest range in the county within the smallest area: converted industrial buildings along the waterfront, modern retail and office at Ridge Hill, and older mixed-use along the main commercial streets. The masonry conversions behave like mill buildings and need the radio count to match.

Tarrytown and Sleepy Hollow. Professional offices and medical practices along the river corridor and around the Metro-North stations, in a blend of modern suites and older village buildings frequently within the same block.

Elmsford, Greenburgh and Hawthorne. Westchester's flex and light industrial strip, running along Saw Mill River Road and beside Route 9A. Single-story buildings with an office front and shop behind, slab construction, and a demarc extension on most jobs.

Ardsley, Dobbs Ferry and Irvington. Small professional and medical tenancies in village commercial buildings, plus school and municipal property.

The Sound Shore and the south

New Rochelle. Downtown commercial and professional space in a mix of prewar and newer construction, with substantial redevelopment alongside older masonry stock.

Mount Vernon and Pelham. Older commercial and mixed-use, light industrial, and community and institutional organisations. Masonry construction and pathway created rather than found.

Larchmont, Mamaroneck, Rye and Port Chester. Village main-street commercial, professional and medical practices, and retail. Port Chester adds a working industrial and service component the other Sound Shore villages do not have.

The north

Scarsdale, Bronxville and Eastchester. Professional and medical practices in village commercial buildings, many converted from residential. Small tenancies where placement carries disproportionate weight.

Mount Kisco, Bedford, Katonah and Chappaqua. Village offices, clinics and small commercial along the northern corridors, with the pathway problems of older small buildings.

Yorktown, Somers and the Route 6 corridor. Retail, service businesses and professional offices at the county's northern edge, plus school and municipal property.

This page sits under network installation Hudson Valley. The cable plant these networks run on is covered on structured cabling installation Westchester, and cable grade and per-drop pricing on Cat6 installation Westchester.
