Network Installation Brooklyn

What a Brooklyn network installation covers

More than half the commercial space we work in across this borough was built for something else entirely. That fact shapes every line of the estimate.

• A structural walk, not just a floor walk. What the building was originally, what it is made of, what has already been run through it, and where a pathway can honestly go. In a converted warehouse none of that is on a drawing.
• An honest pathway plan. Where cable can be concealed, where it cannot, and what the visible sections will look like — agreed before anything is pulled, because in an exposed-ceiling building the pathway is part of the interior.
• A written design. Addressing, VLAN scheme, switches sized with power to spare, radio count and positions, and the equipment list.
• The plant. Cable on supported pathway, plenum-rated where a ceiling is a return, firestopped at rated penetrations, category-matched terminations, certified across the full drop count.
• The rack. A cabinet or floor-standing network rack with panels, managers, protected power and battery backup, dressed and labelled end to end.

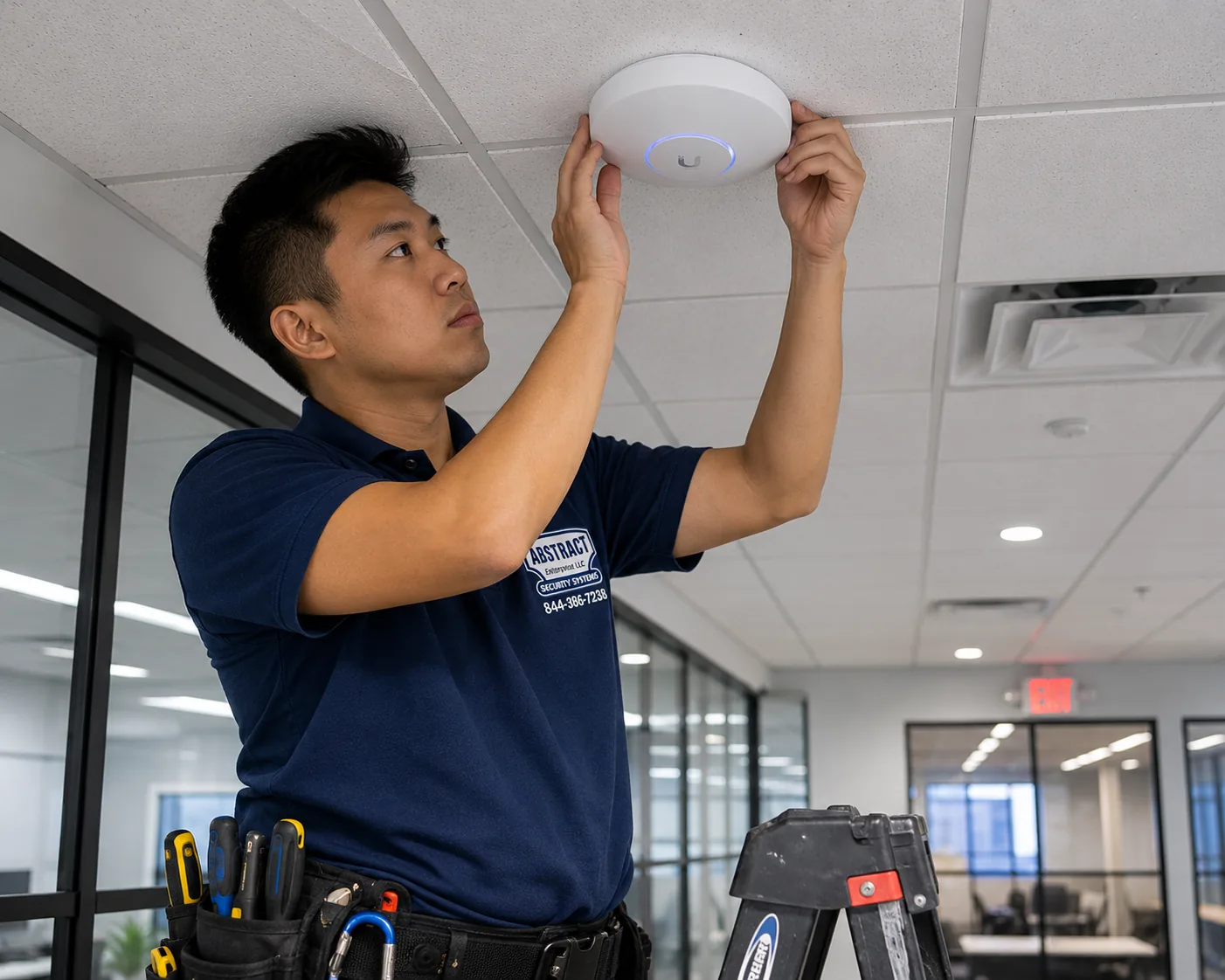

• The active layer. Switching, edge firewall, wireless — fitted, configured, tuned and proven.
• Handover. Port map, as-built, addressing scheme, equipment schedule with serials, administrative access.

Itemised separately rather than absorbed: rack hardware, panels, switches and firewalls where we furnish them, conduit and surface raceway where concealment is impossible, firestop materials, core drilling through brick or timber, lift work under high ceilings, and evening crews. In converted stock these lines are larger than they would be in a purpose-built office, and pretending otherwise is how a bid comes in low and finishes high.

Five Brooklyn building types and what each one demands

The neighbourhood tells you the construction, and the construction tells you the job.

Downtown Class A and B office

MetroTech, Court Street, Livingston Street, Jay Street. Conventional commercial buildings with telecom rooms, risers, drop ceilings and building management that expects insurance on file and freight coordinated. Plenum-rated cable across most horizontal runs. Straightforward work with administrative overhead closer to Manhattan's than to the rest of the borough's.

Converted manufacturing loft

DUMBO, Gowanus, Williamsburg, Bushwick, Greenpoint. Heavy timber or reinforced concrete, brick perimeter and party walls, high exposed ceilings, column grids instead of partitions. Everything is visible, wireless carries well through open volume but stops dead at masonry, and the pathway plan is the design. Sprinkler and structure both compete for the space cable wants.

Large campus and industrial

Brooklyn Navy Yard, Industry City, Bush Terminal, Sunset Park. Enormous floor plates, multiple buildings on one site, concrete and steel throughout, and distances that break the hundred-metre copper limit inside a single structure. These sites need a closet plan and fiber between rooms before anyone discusses drops, and frequently a link between buildings on the same campus.

Mixed-use and main-street commercial

Atlantic Avenue, Flatbush Avenue, Fifth Avenue in Park Slope, Bay Ridge's Third and Fifth Avenues, Brighton Beach Avenue. Retail below with offices or practices above, masonry party walls, plaster in the older buildings, no dedicated telecom space, and pathway created with raceway or coring. Small jobs where placement matters disproportionately because there is no room for extra hardware.

Institutional and medical

Hospital corridors, clinics, schools and non-profits across the borough, plus the medical concentration around Downtown and Midwood. Documented standards, segmentation as a requirement rather than a preference, and scheduling dictated by service hours.

VLANs for mixed-use Brooklyn businesses

A lot of Brooklyn companies do more than one thing under one roof — an office and a workshop, a studio and a shop, a kitchen and a dining room. Segmentation is how those coexist on one circuit without interfering with each other.

Left flat, a network lets anything on it reach anything else on it. In a building where a retail terminal, a fabrication machine, a visitor's laptop and the drive holding client work all share one segment, a single unpatched or misbehaving device reaches everything. Nothing has to be malicious for that to become a problem.

A ten-person Gowanus design studio needs staff, guest and probably voice. A Bushwick maker business with a retail front needs payment and production fenced as well, because the shop must keep taking money when somebody upstairs saturates the connection. The conversation is about which fences earn their keep.

When a survey is worth paying for in Brooklyn

A survey is a measurement rather than a sales instrument, and in this borough there is a clear line between the buildings that need one and the buildings that do not.

A predictive survey works out likely coverage from the drawings and whatever the construction is stated to be. On a Downtown office floor with accurate plans that is close enough to work from. An on-site survey puts a meter in the space and records what is actually there — signal, neighbouring networks, and how far radio genuinely travels through the specific walls in front of you.

Justified

• Any converted industrial building. Brick and heavy timber cannot be modelled honestly, and the combination of open volume and hard masonry edges produces coverage maps nobody predicts correctly.
• Large industrial floor plates. Navy Yard and Sunset Park scale spaces where racking, stock and distance all interact.
• Anywhere the floor plan and the reality differ, which in conversion stock is most of the time — walls get added and removed without drawings following.
• Anywhere a previous WiFi installation already failed, since the survey establishes whether the fault was count, placement, spectrum or the building itself.

Not justified

A Downtown office suite under roughly 4,000 square feet with conventional partitions and a normal device count does not need a paid survey to reach a defensible count, and we will say so rather than sell one. The fee is $450, credited against the project. The validation walk after installation — a meter carried across the finished floor and into every enclosed room — comes with the project either way, and in a masonry building it is the step that catches the room somebody assumed would be fine.

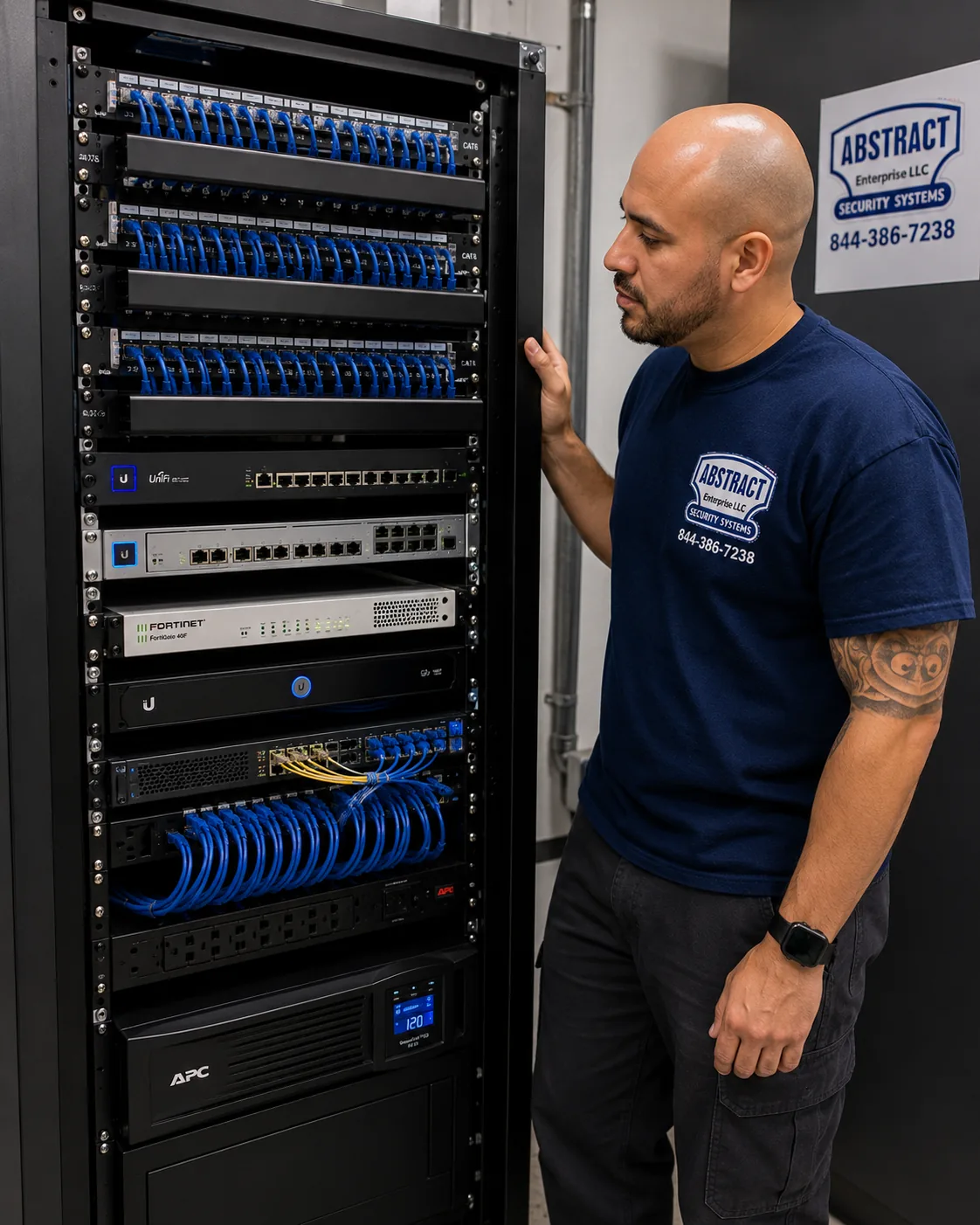

Building a network rack where the building never provided one

In conversion stock the rack is not installed into a room. The room is created around the rack.

A good result looks deliberate: an enclosure or wall cabinet in a considered position, panels at the top, switching below, short cords in consistent colours through managers, labelled throughout, with air and space to grow. A poor result is equipment stacked on a shelf in a corner with a knot of cords behind it and no labels, which costs somebody an hour every time anything needs tracing for the next decade.

What belongs in it

• Network rack or wall cabinet sized for the tenancy and positioned by distance to the furthest outlet rather than by what was left over.
• Patch panels with spare ports, because panel capacity is the hardest thing to add afterwards.
• Managers horizontally and vertically, which separate a rack somebody can service from one that is merely full.
• Power. Its own circuit where the building permits, a PDU in the rack, and battery backup matched to the draw.
• Bonding back to building ground wherever the installation calls for it.
• Labelling on each port, panel and cable end, agreeing exactly with the port map.

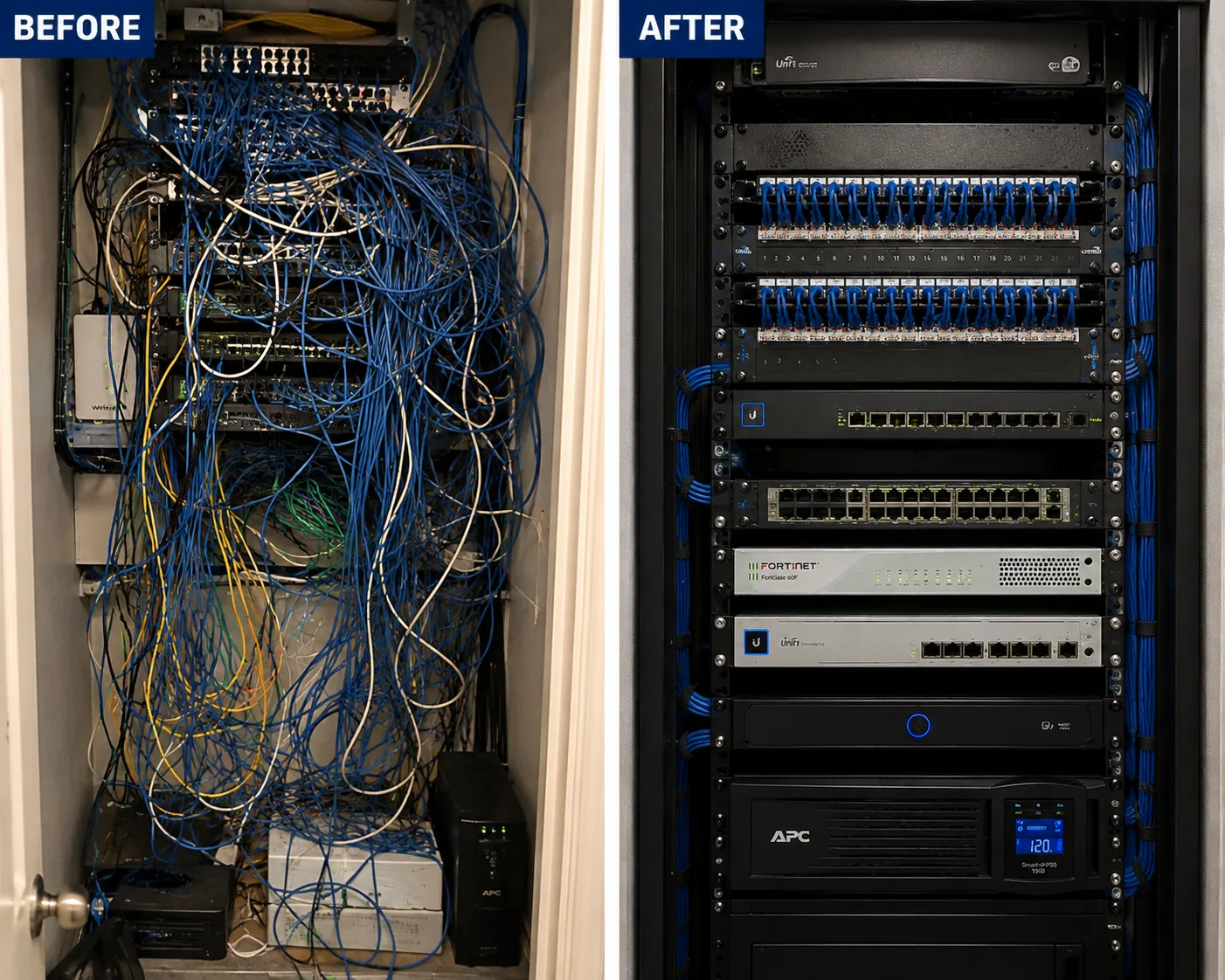

Cleanup as its own project

A large share of the borough's network work is not construction at all — it is a rack that four tenants and their vendors added to over a decade, in a building where nobody documented anything and several runs go somewhere nobody can name. We trace, remove what is genuinely dead, re-route, re-terminate where necessary, dress, label and produce a map. It is unglamorous and it is usually the most valuable day anybody spends on that network.

Documentation, and breaking the Brooklyn cycle

The reason so much conversion-stock cabling is undocumented is that each tenant assumed the next one would start over. Somebody has to stop doing that.

Every project finishes with a package, identical whether the client has an IT director or an office manager who has never opened a switch.

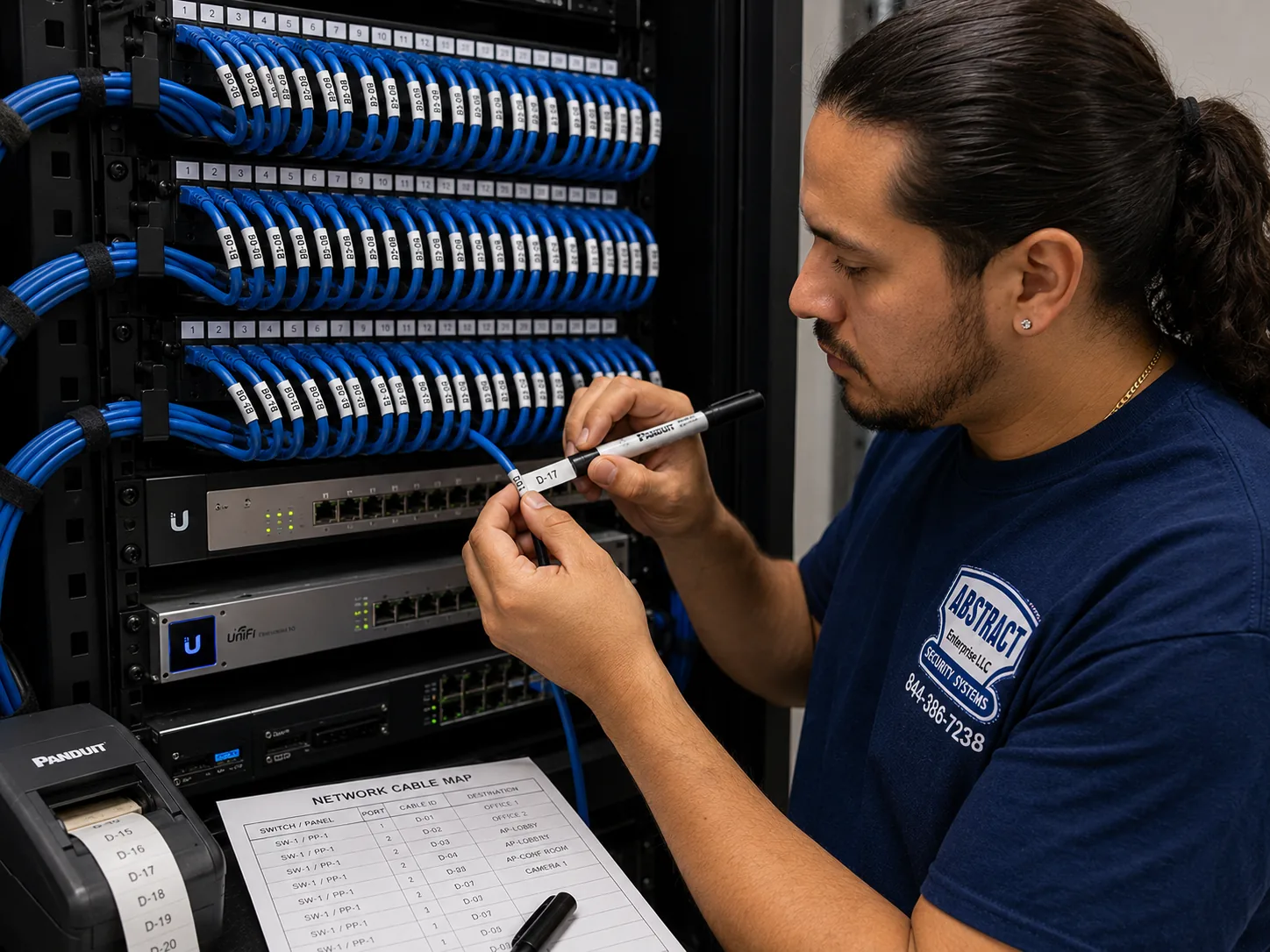

• Port map tying each panel port to its outlet and area. In a building with no drawings this becomes the building's only accurate record.
• Both-end labelling in a scheme that still reads after the floor is reconfigured — which in a flexible loft it will be, repeatedly.
• Certification data across the full drop count rather than a sample.
• As-built showing rack position, the pathway as it actually runs, any coring between floors, and access point locations.
• The addressing and VLAN scheme recorded: subnets, scopes, reservations, SSIDs, and where each one sits.
• An equipment list giving model, serial and firmware as handed over.
• Admin credentials for each device we configured, transferred on the final day.

The pathway drawing matters more in this borough than in newer stock, because in an exposed building the cable route is a physical fact somebody will eventually need to work around — a wall going in, a mezzanine, a sprinkler alteration. A route nobody recorded is a route somebody cuts.

On credentials, plainly: some contractors keep admin access to their own work so that changing vendors means starting again. We do not, and anyone comparing proposals should ask outright before signing. It is your network. You get the keys.

What network installation costs in Brooklyn

Published line items, with the conversion-stock costs shown rather than absorbed. Hardware is priced on its own or provided by you.

Design and survey

Installation and configuration

Conversion-stock lines

Shown on their own lines because they are the difference between a converted building and a purpose-built one, and because a bid that omits them is not cheaper — it is incomplete. Downtown Class A and B floors rarely need any of them.

Whole-network packages

What moves the number

• Whether anything can be concealed. The single largest variable in conversion stock, and the one most visible in the finished space.
• Ceiling height. Everything above fourteen feet needs a lift, and lift work is slower than ladder work in both directions.

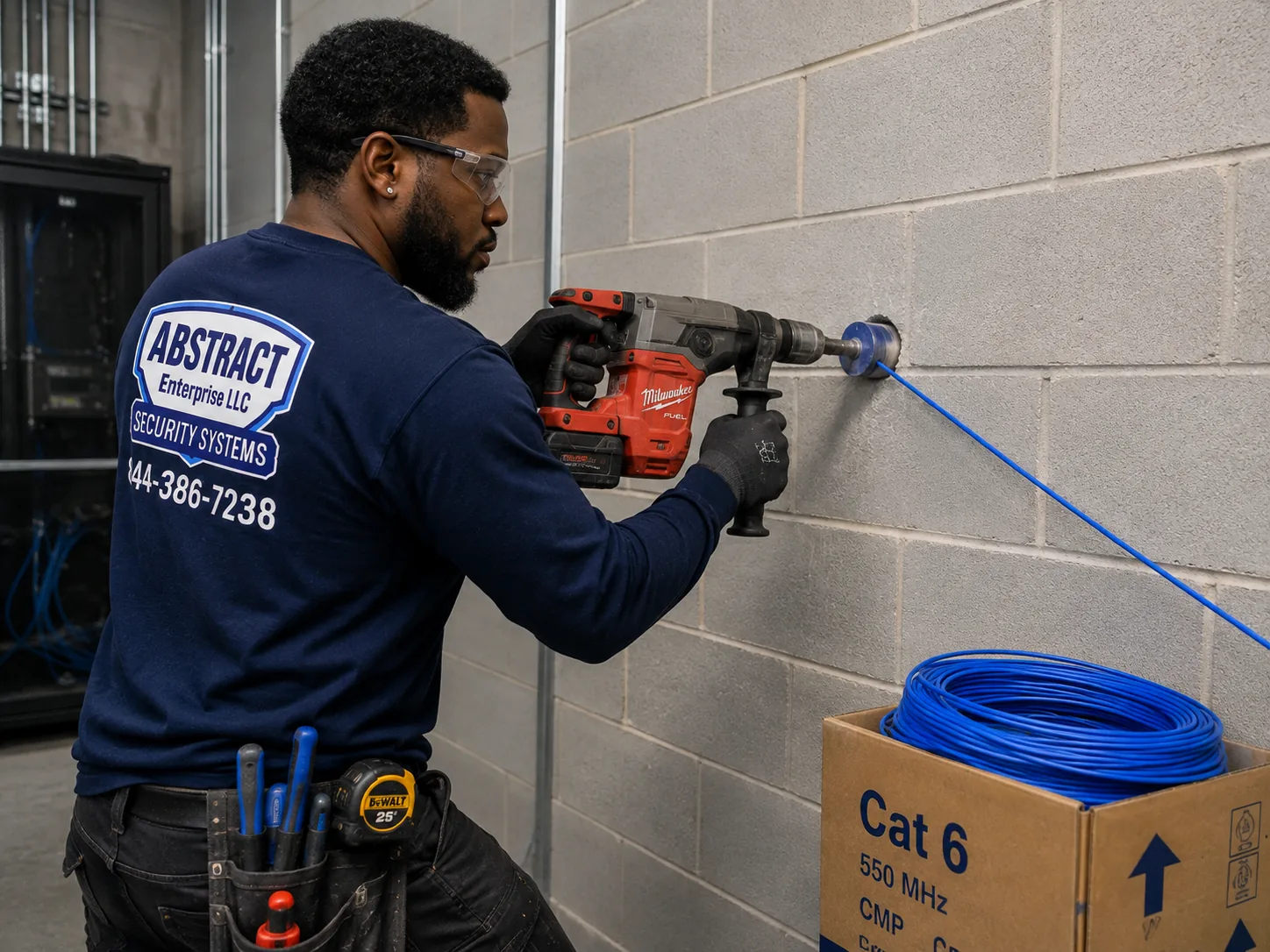

• Vertical routes between floors. Coring a deck is real work and needs the landlord's agreement.
• How much is already in the ceiling and whether any of it can be identified.

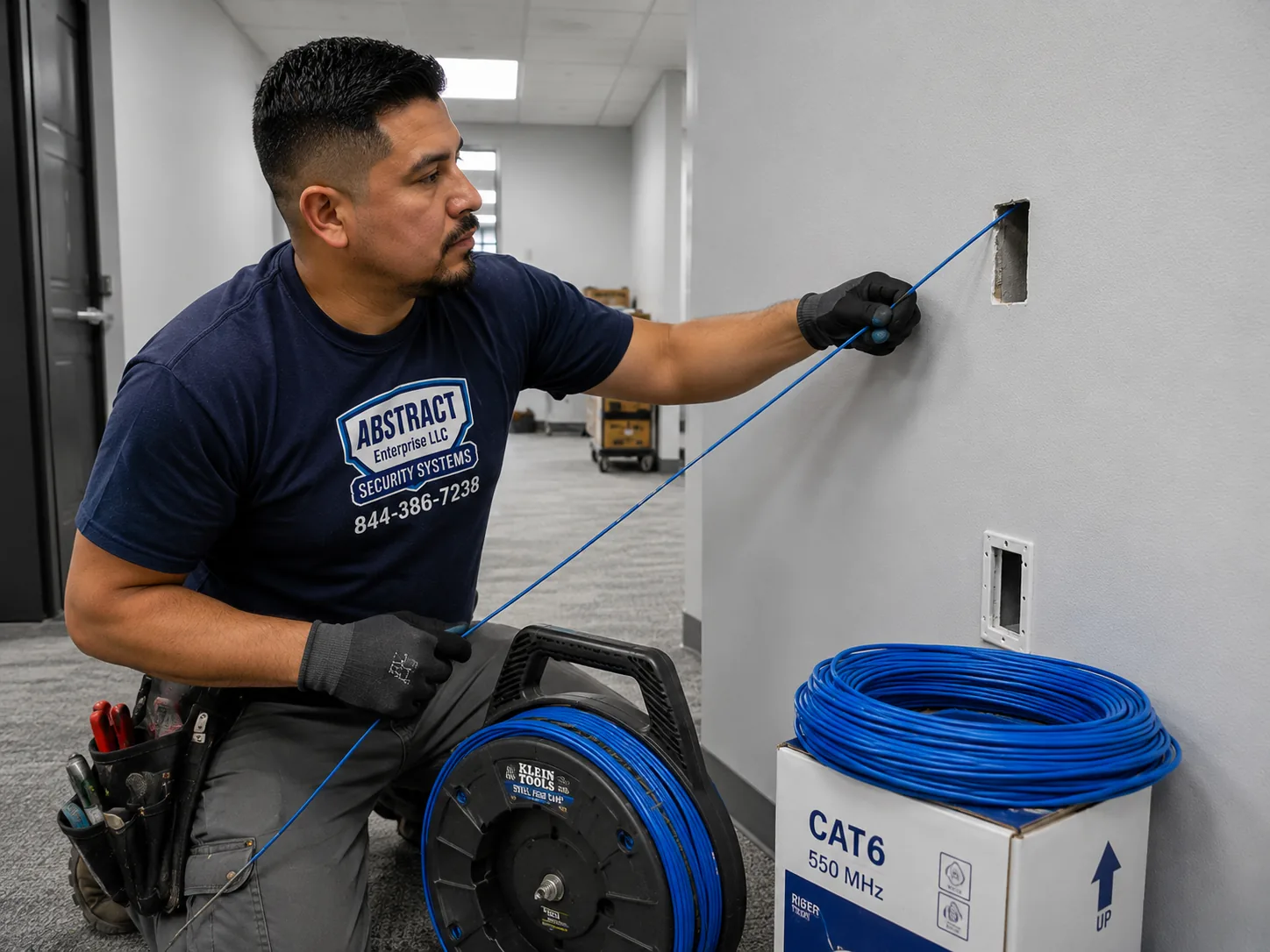

• Rough-in versus retrofit. A run made while a wall is open costs a fraction of the identical run fished later.
• Floor plate size. Large industrial plates need a second room rather than a stretched run.

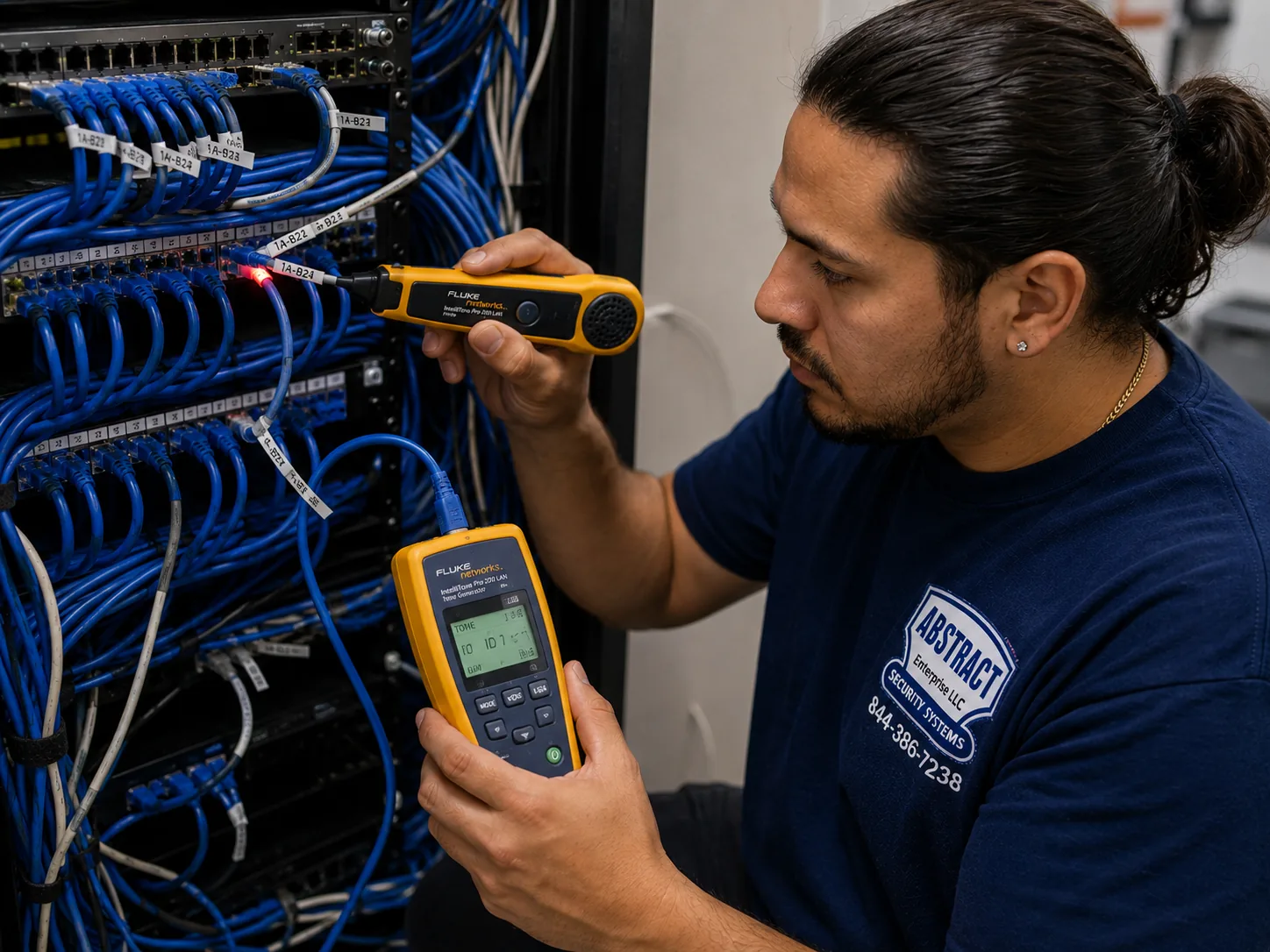

Repair and service

Diagnosis and repair on an existing network is $195 hourly, three hours minimum. Same-day dispatch across the borough for outages. If the call turns into a quoted project, those hours come off it.

Network installation, structured cabling and Cat6

Three overlapping terms that describe genuinely different scopes of work.

The Brooklyn consequence of splitting them is specific. In a building with no drawings and no concealed pathway, the person deciding where cable runs is making a visible, permanent decision about the space. When that person is a subcontractor working from a scope written by somebody who never walked the floor, the result is what you see stapled across the ceilings of half the converted buildings in this borough.

This is the Brooklyn borough page. The citywide hub is network installation NYC; the neighbouring boroughs are Manhattan and Queens.

From walkthrough to closeout

Five stages, and in conversion stock the first one takes longer than people expect.

1. Walk the building and read the ceiling

   What the structure is, what is already run through it, where a rack can honestly live, how far the furthest planned outlet sits from it, and which sections of pathway will be visible. In a converted building none of this is on a drawing, so the walk produces the drawing rather than confirming one.

2. Design, quote and agree the appearance

   Addressing, VLAN plan, switch sizing with power headroom, access point count including the enclosed rooms behind masonry, equipment schedule, a line-item price with the conversion lines shown separately — and a pathway plan you sign off on, because in an exposed building that plan is a decision about how the office looks.

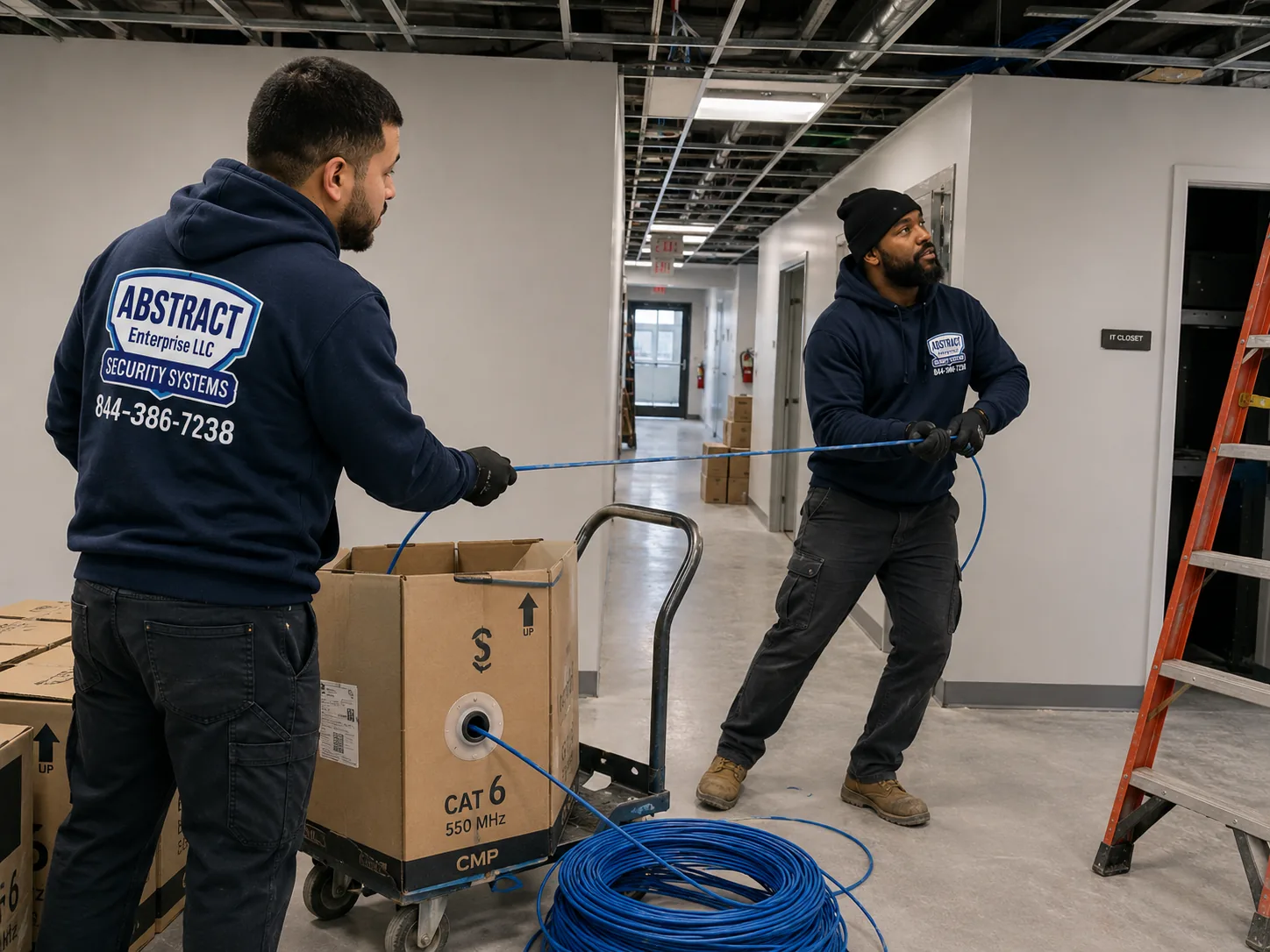

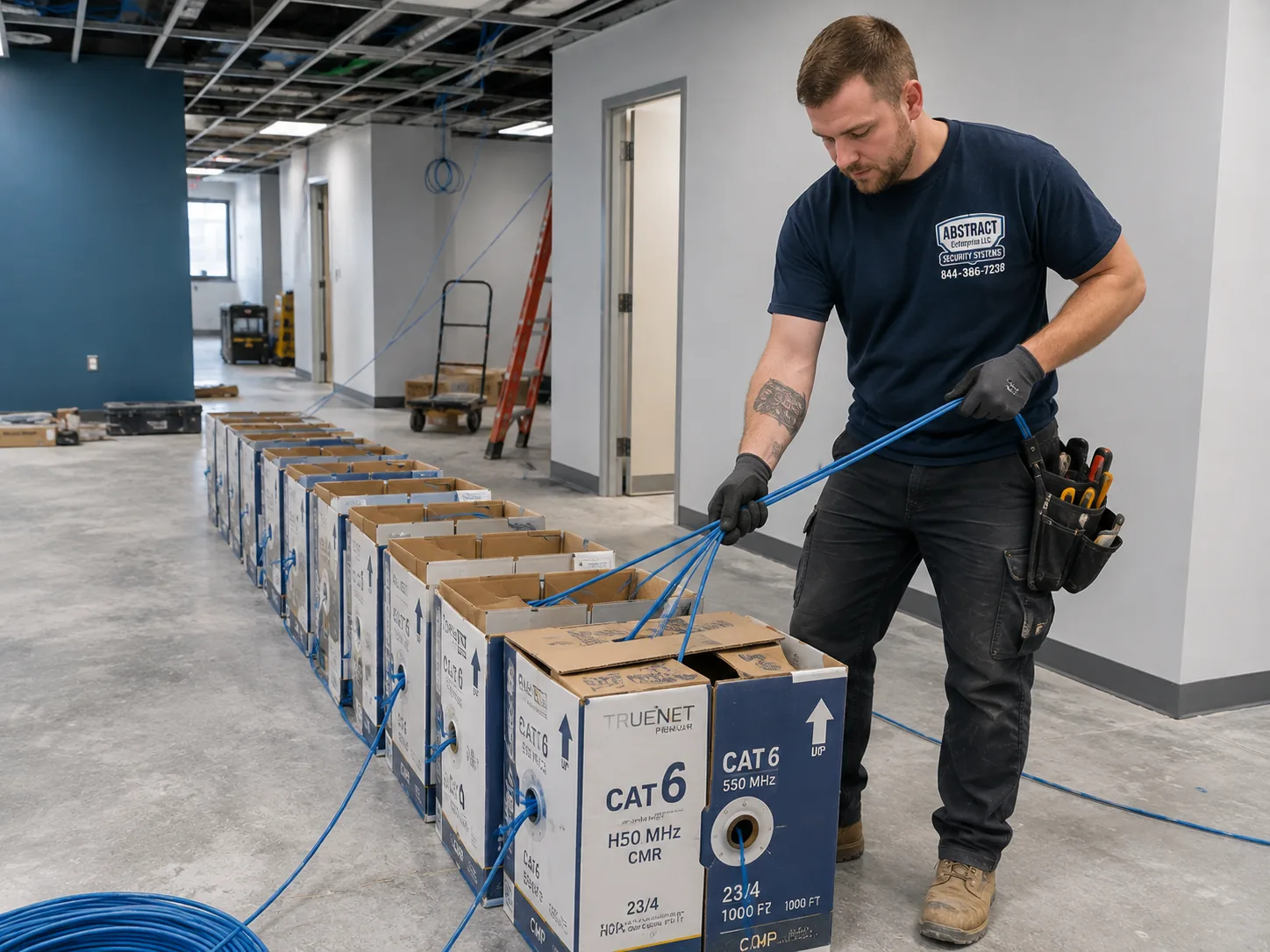

3. Pathway and plant

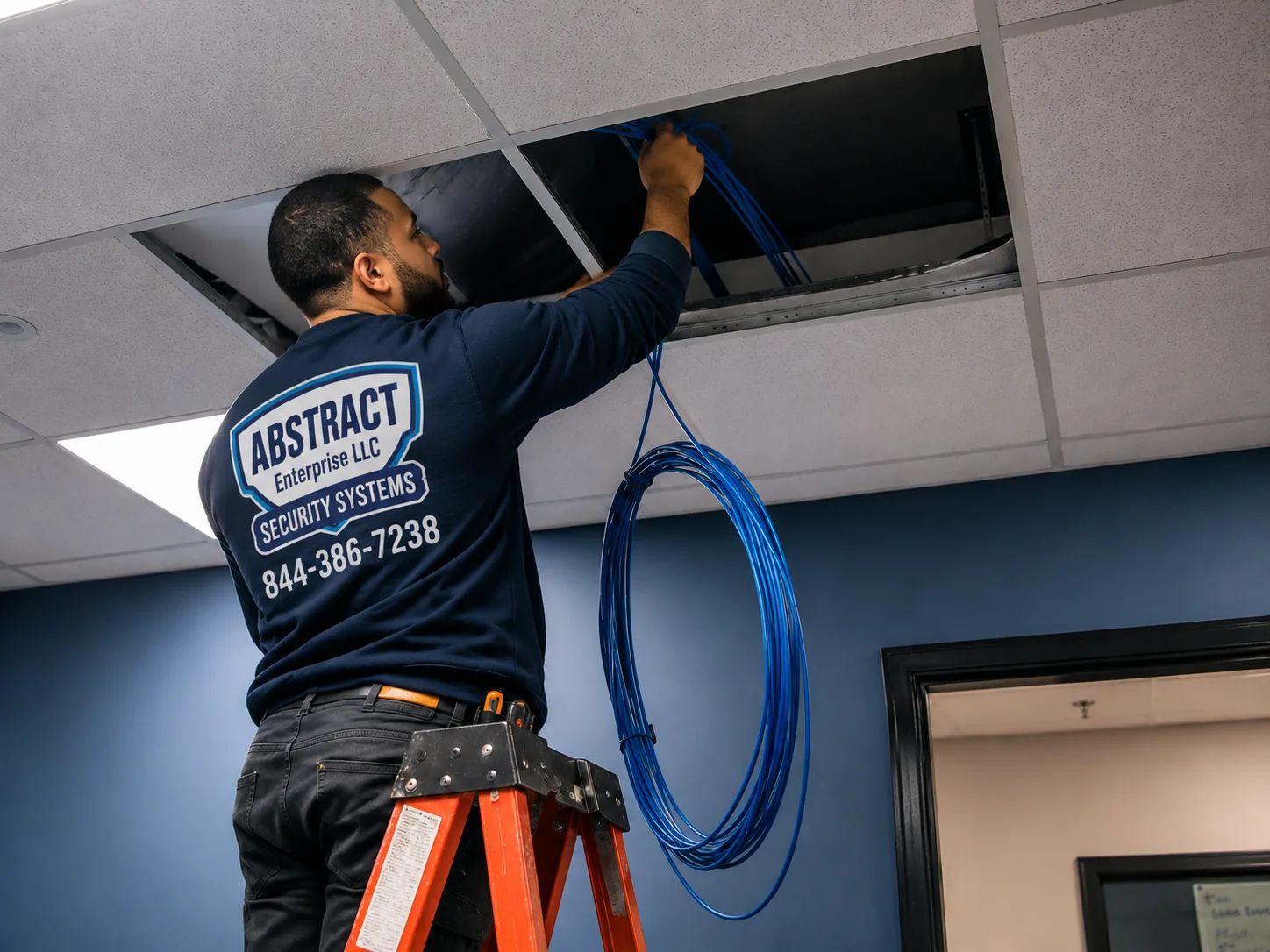

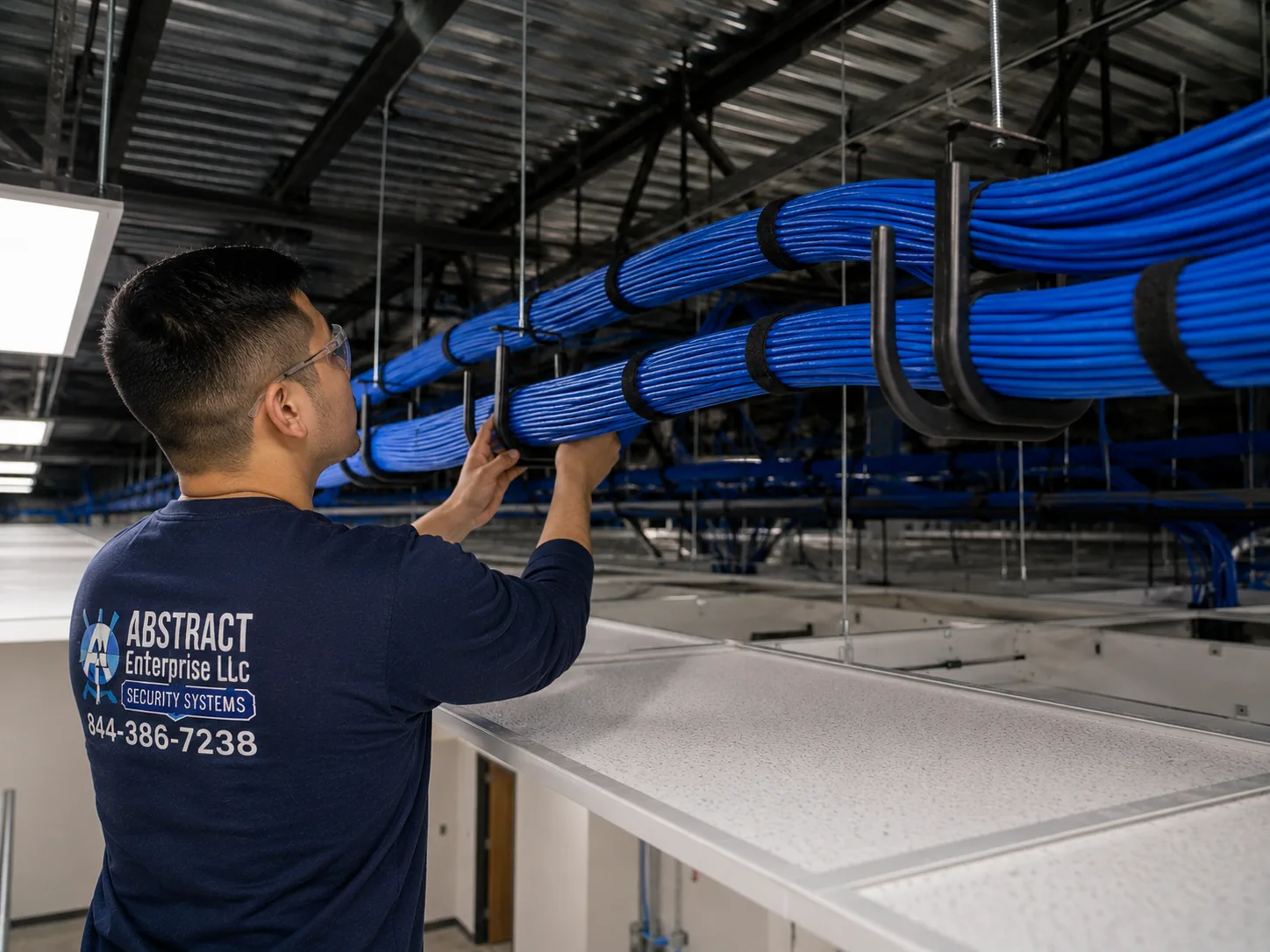

   Supports first, then cable: dressed bundles at consistent heights, straight parallel runs, plenum-rated where a ceiling is a return, firestopped at every rated penetration, and coring between floors where the design calls for it.

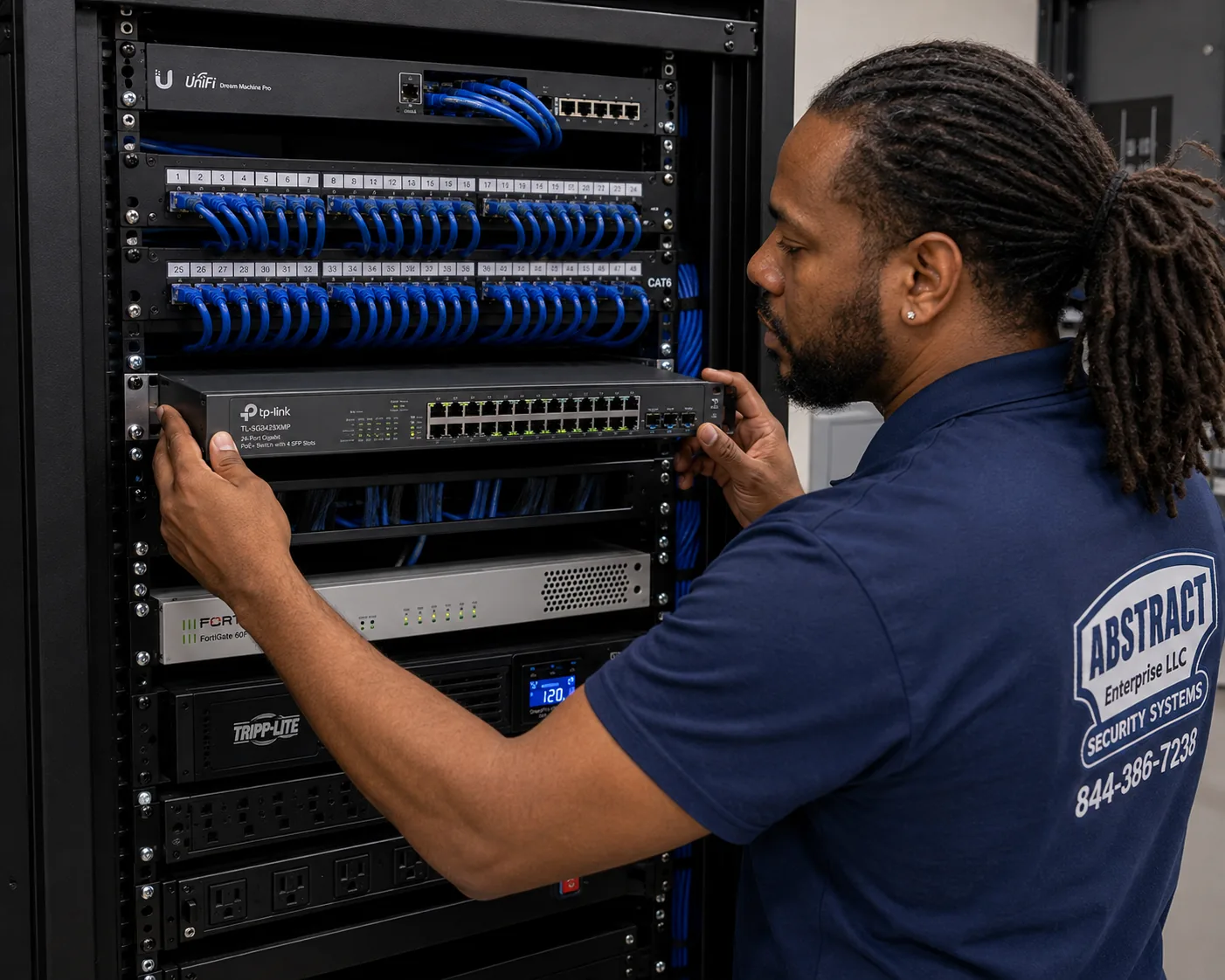

4. Rack and equipment

   Network rack or cabinet in the position the design chose, with panels, managers, power and battery backup. Switching, edge firewall and access points fitted, configured and tuned, with the power budget proven under real load including anything mounted high.

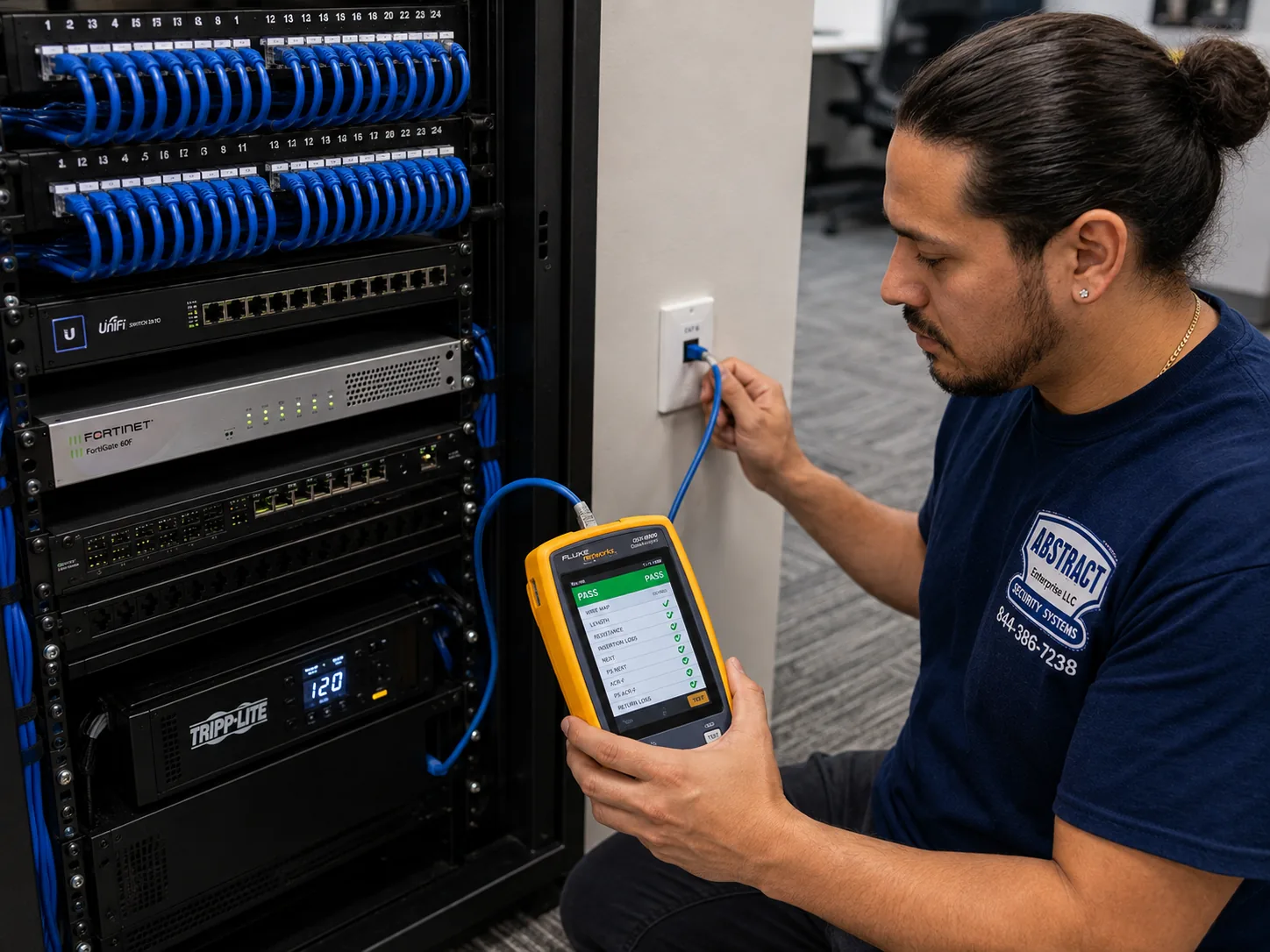

5. Certify, validate and hand over

   Certification across every drop. A validation walk with a meter across the open floor and into every enclosed room behind masonry, which is where an optimistic design shows itself. Then the package — port map, pathway as-built, addressing scheme, equipment schedule and administrative access — walked through with whoever will support it.

Brooklyn network installation questions we get

Where we install networks in Brooklyn

The whole borough. What changes from neighbourhood to neighbourhood is the construction, and the construction is the job.

Downtown Brooklyn

MetroTech, Court Street, Livingston Street and Jay Street. The borough's conventional office core — Class A and B buildings with real telecom rooms, stacked closets, drop ceilings that serve as return plenums and building management that expects insurance on file and freight coordinated. Legal, financial, institutional and back-office tenancies. Work here resembles Midtown, including the administrative overhead, and is the exception to almost everything else on this page.

Boerum Hill, Cobble Hill and the Atlantic Avenue corridor. Smaller professional offices and medical practices in older mixed-use buildings, retail below and offices above, with masonry party walls and pathway that has to be created.

The waterfront and the conversion belt

DUMBO — Water, Front, Jay and Pearl Streets. The definitive Brooklyn conversion neighbourhood. Heavy timber and brick warehouses turned into technology and creative offices, high exposed ceilings, columns rather than partitions, and cable that is visible by definition. Excellent open-floor wireless and hard masonry edges in the same tenancy.

Brooklyn Navy Yard. A campus rather than a building — industrial and manufacturing space alongside modern office buildings on one site, which regularly means two entirely different designs for a single tenant and a link between structures. Large plates, long distances and building standards to work within.

Industry City, Bush Terminal and Sunset Park. Enormous concrete and steel floor plates where the hundred-metre copper limit is exceeded inside a single building. These sites need a room plan and fiber between rooms before drop counts are discussed at all.

Red Hook and Gowanus. Low-rise industrial and warehouse conversion, workshops, studios and light manufacturing. Ground-floor space, older electrical service, and layered legacy cabling from a long series of previous occupants.

North Brooklyn

Williamsburg — Kent Avenue, Wythe Avenue and North Sixth Street. Converted manufacturing alongside newer construction, with hospitality, agency and technology tenants. Mixed stock in the same few blocks, so two jobs a mile apart can be completely different projects.

Greenpoint and Bushwick. Former industrial buildings holding studios, production space, workshops and small offices. Masonry throughout, exposed ceilings, and the borough's heaviest concentration of undocumented existing cable.

Central and southern Brooklyn

Park Slope and Prospect Heights — Fifth Avenue, Seventh Avenue and Flatbush Avenue. Professional and medical practices above retail in older buildings. Small tenancies, thick walls, no dedicated telecom space, and placement that matters disproportionately.

Crown Heights, Bedford-Stuyvesant and Flatbush. Mixed-use commercial corridors, non-profits, clinics and community organisations, plus institutional buildings of varying vintage. Budgets are tighter and the requirement that a design lasts is stronger.

Bay Ridge, Sunset Park's Fifth Avenue and Borough Park. Dense main-street commercial, medical suites and family businesses in older buildings. Retail below, practices above, and trading hours dictating the schedule.

Coney Island, Brighton Beach and Sheepshead Bay. Retail, hospitality and medical along the avenues, with coastal proximity making anything exterior a specification question rather than an afterthought.

The citywide hub is network installation NYC. The cable plant these networks run on is covered on structured cabling installation Brooklyn, and cable category and per-drop pricing on Cat6 installation Brooklyn.
