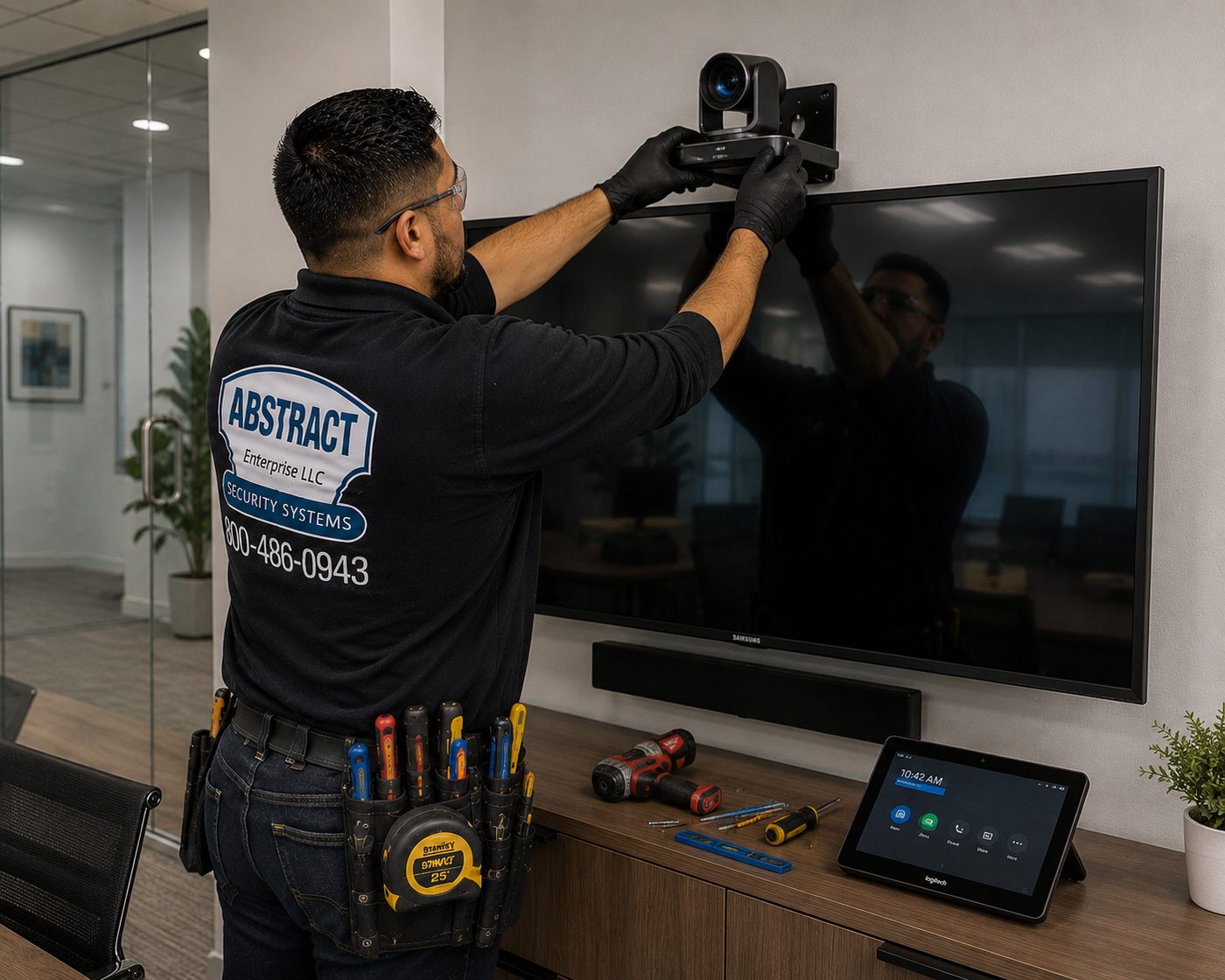

Low voltage installation in Orange County: a conference camera mounted and cabled in-wall, one of the small jobs between the big ones.
Serving Newburgh, Middletown, Montgomery, Goshen, Monroe and the Stewart Airport corridor. Part of our Hudson Valley low voltage coverage.
Reviewed and updated August 12, 2026.
Request a Free Orange County Low Voltage Survey
THE NEIGHBORHOOD
In Orange County NY the Building Is Bigger Than the Cable
Every other page in this silo deals with distance between buildings. Orange County is the one where the distance problem sits inside a single building, and it changes the design before anything else does.
The reason is geography. Orange sits where the New York State Thruway, Interstate 84 and Route 17 converge, alongside New York Stewart International Airport — a 2,400-acre Port Authority facility at the I-87 and I-84 intersection handling oversized freight, express packages and daily FedEx and UPS operations, with Kalitta Air moving 747 and 767 freighter operations there from JFK in 2019. County materials describe one of the most effective transportation systems in the country and rank Orange as the second-fastest growing county in the state.
That convergence produced distribution buildings at a scale nothing else in this region matches. A single project filed in the Town of Newburgh across from Stewart is 595,900 square feet with 116 loading docks on both sides of the building, 224 parking spaces and 167 trailer storage positions on a 58-acre parcel. A five-warehouse complex proposed in Cornwall runs to 1.7 million square feet. Mega-warehouse and last-mile facilities have gone up across Montgomery, Newburgh and Wallkill.
Here is what that means technically. A copper run is limited to one hundred metres end to end including patch cords. On a 595,900 square foot floorplate, a single closet cannot reach the building. You do not have one telecom room with a backbone leaving it; you have a network of intermediate frames placed so that every dock position, every office, every scanner and access point falls inside the channel from one of them. Getting that layout right is the job. Getting it wrong means a second mobilization and a second set of terminations.
Alongside the industrial base sit Woodbury Common Premium Outlets and Legoland New York in Goshen, the West Point campus, healthcare serving the mid-Hudson, and downtown commercial in Newburgh, Middletown and Port Jervis. Those are conventional buildings with conventional constraints — but the county’s defining low-voltage problem is the big ones.
One practical note before anything else. There are Orange Counties in California, Florida, Texas, North Carolina, Virginia and Indiana, and search engines mix them freely — a search for a low voltage contractor in Orange County will return California companies unless you add NY. This page is about Orange County, New York: Newburgh, Middletown, Montgomery, Goshen, Monroe, Warwick and Port Jervis, in the Hudson Valley.
Abstract Enterprises Security Systems is a licensed low voltage contractor in Orange County NY and a structured cabling contractor across the region, under NYS licence #12000287431. Every proposal follows a free on-site survey.
No monthly fees and a three-year warranty on equipment we install.

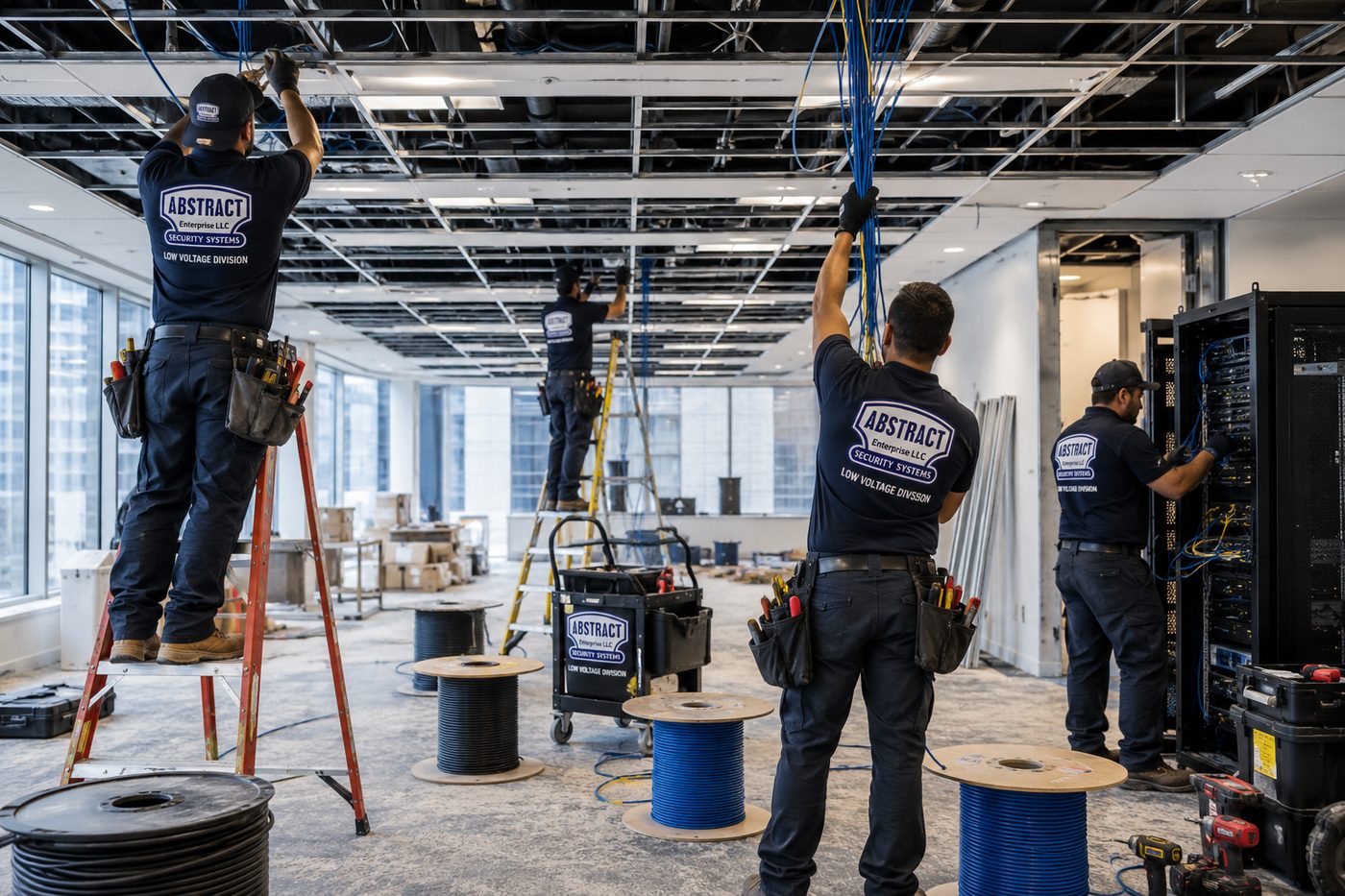

A full crew pulling and racking in one mobilisation on an Orange County job.
WHAT WE INSTALL
Commercial Low Voltage in Orange County NY: Systems We Cable
Each of these gets scoped against the same question first on a large building here: where do the closets go, and does every device fall inside a channel from one of them.
Multi-IDF Backbone Design
The defining Orange County NY job, and the fiber optic installation in Orange County NY that comes with it. Closet positions plotted against the hundred-metre limit across the whole footprint, with fiber optic cabling in Orange County linking each intermediate frame to the main one.
Voice and Data Cabling
Commercial data cabling in Orange County NY from workstation to closet, including VoIP handset drops — Cat6 and Cat6A, with Cat5e touched only where an existing plant is being extended rather than replaced. Panel-terminated, wiremapped and labelled at both ends. Cat6 installation in Orange County covers office and suite work, and office network cabling in Orange County is the everyday version of it.
Dock, Gate and Yard Runs
Cabling out to dock positions, guard posts, gates and trailer storage areas on outdoor-rated cable in conduit, with spare capacity put in while the ground is open.
High-Bay and Warehouse Cabling

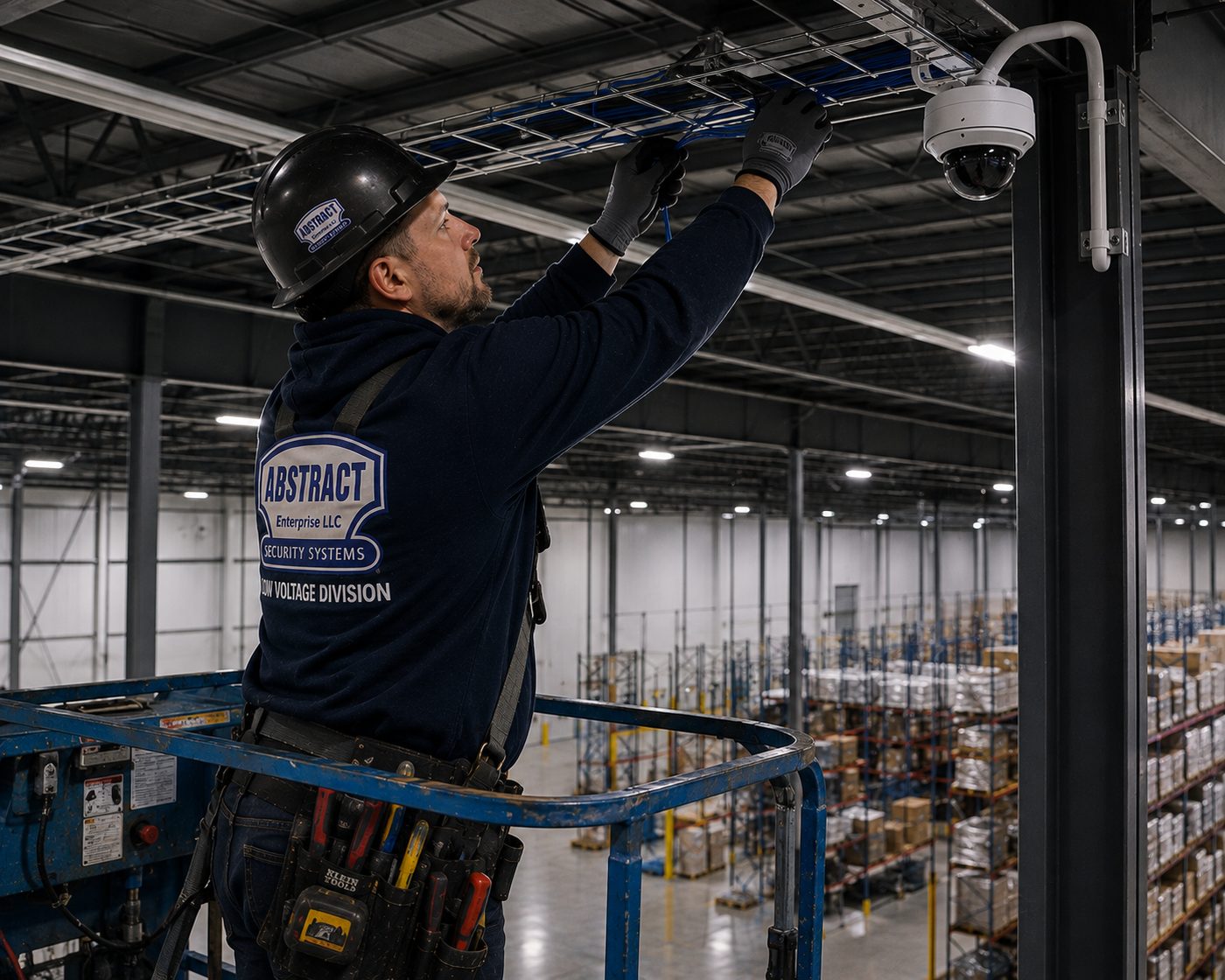

Tray pathway worked from a lift, mounting heights set clear of vehicle traffic, and cable rated for the environment rather than for a carpeted suite.
Wireless Coverage for Scanning
Access point drops placed for coverage across racked aisles rather than for an empty floor, on cable rated for the PoE class the device actually draws.
Camera Cabling
Home runs from each position back to the recorder or PoE switch, with distance and switch power budget confirmed first. Security camera installation in Orange County is handled by the same crew.

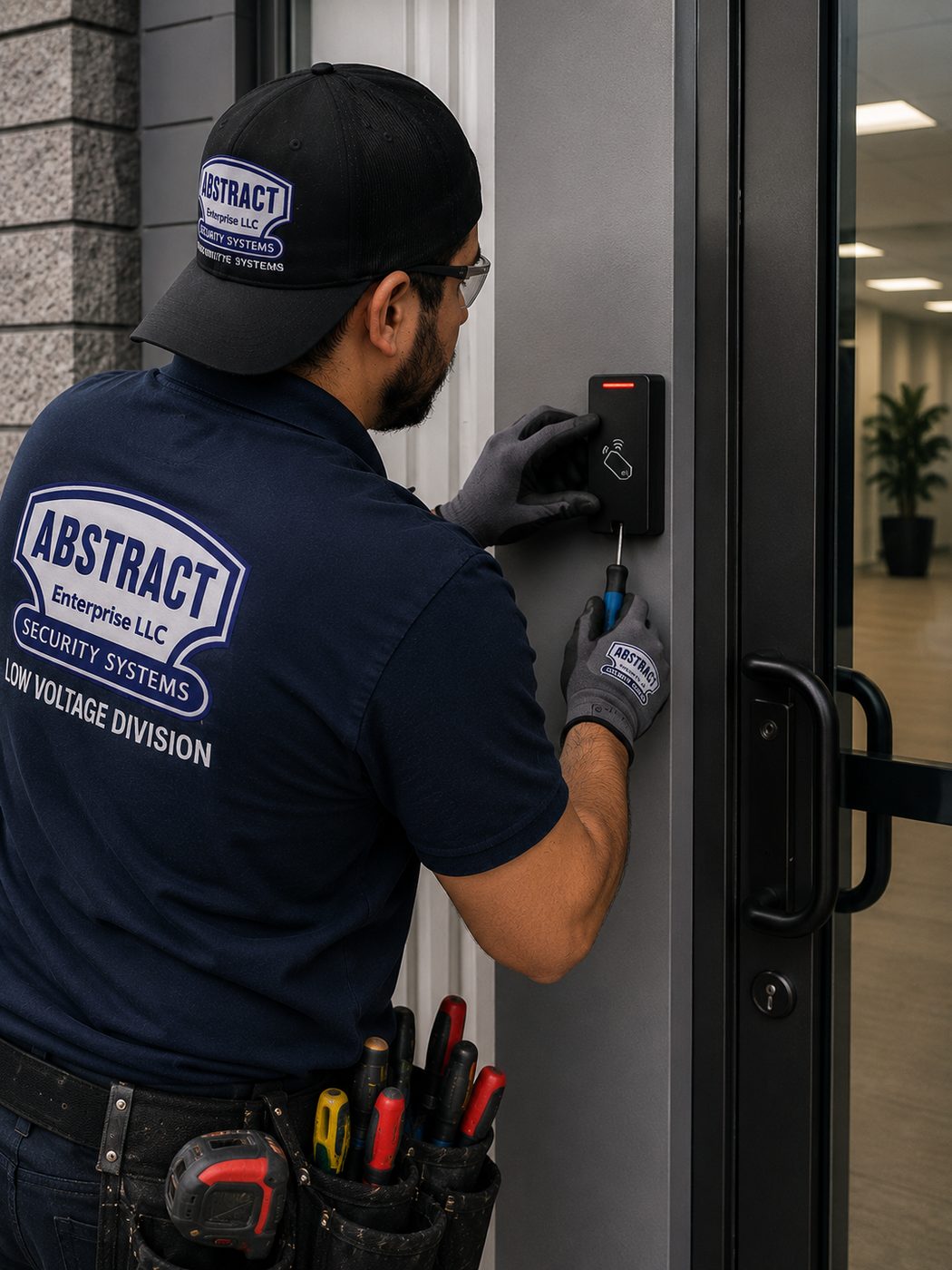

Access Control Door Wiring
Access control installation in Orange County shares the data plant’s pathway: reader-to-controller runs, lock power home runs, request-to-exit and door position pulled as one door bundle.
Server room cabling in Orange County starts with the rack: two-post builds, panel and switch mounting, management, UPS, grounding, and the same standard repeated at every IDF so the building is maintainable.
Low voltage security systems in Orange County share the same pathway as the data plant, so one company can handle cabling, cameras and access control on a single mobilization.

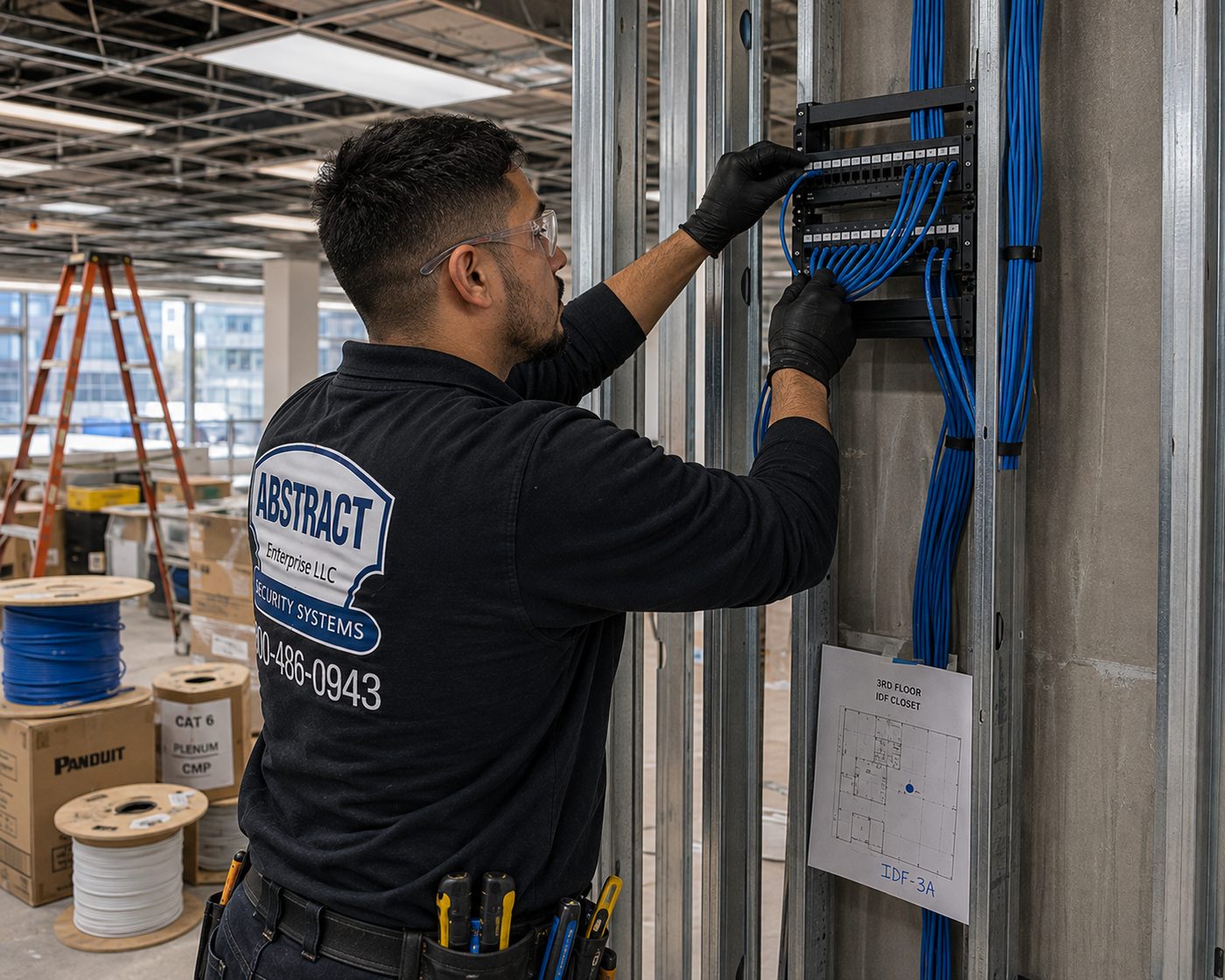

One of several intermediate frames a distribution floorplate needs, built to the same standard.
BUILDING SPECIALISTS
Cabling for the Way Orange County Buildings Are Actually Built
Distribution and fulfilment at scale
Structured cabling in Montgomery and network cabling in Montgomery cover the county’s signature building type — footprints where a single telecom room cannot reach the walls. Filings across from Stewart describe buildings near six hundred thousand square feet with over a hundred loading docks; a Cornwall proposal runs to 1.7 million square feet across five buildings. The work is IDF placement first, horizontal cabling second, and dock-level device density throughout.
Last-mile and cross-dock facilities
Smaller than the mega-boxes and turned over more often. Data cabling in Wallkill and structured cabling in Wallkill frequently means fitting out or re-fitting a building whose previous occupant left plant behind, where certifying what is there saves more than it costs.
The Stewart Airport corridor
A low voltage contractor in New Windsor works the airport corridor along Route 747, Drury Lane and International Boulevard — freight handling, air cargo support, and the office and flex property serving it. Network cabling in New Windsor here runs on operational hours rather than an office day.
Destination retail and hospitality
Structured cabling in Woodbury covers Woodbury Common Premium Outlets and the commercial property around it, and data cabling in Goshen serves the Legoland New York area plus the village commercial core. Both are trading-hours environments where work goes into windows the operator will actually grant.
Downtown commercial and healthcare
Network cabling in Newburgh and data cabling in Middletown cover downtown redevelopment, professional suites, medical office and the healthcare base serving the mid-Hudson. Structured cabling in Middletown along Route 211 and in Newburgh along Broadway means older buildings with conventional constraints — a different job from the warehouses ten minutes away.
Municipal, institutional and rural western county
A low voltage contractor in Port Jervis or Warwick works village commercial, municipal buildings, school district property and agricultural operations toward the Pennsylvania and New Jersey lines. Structured cabling in Warwick and network cabling in Port Jervis run to smaller drop counts on longer drives.

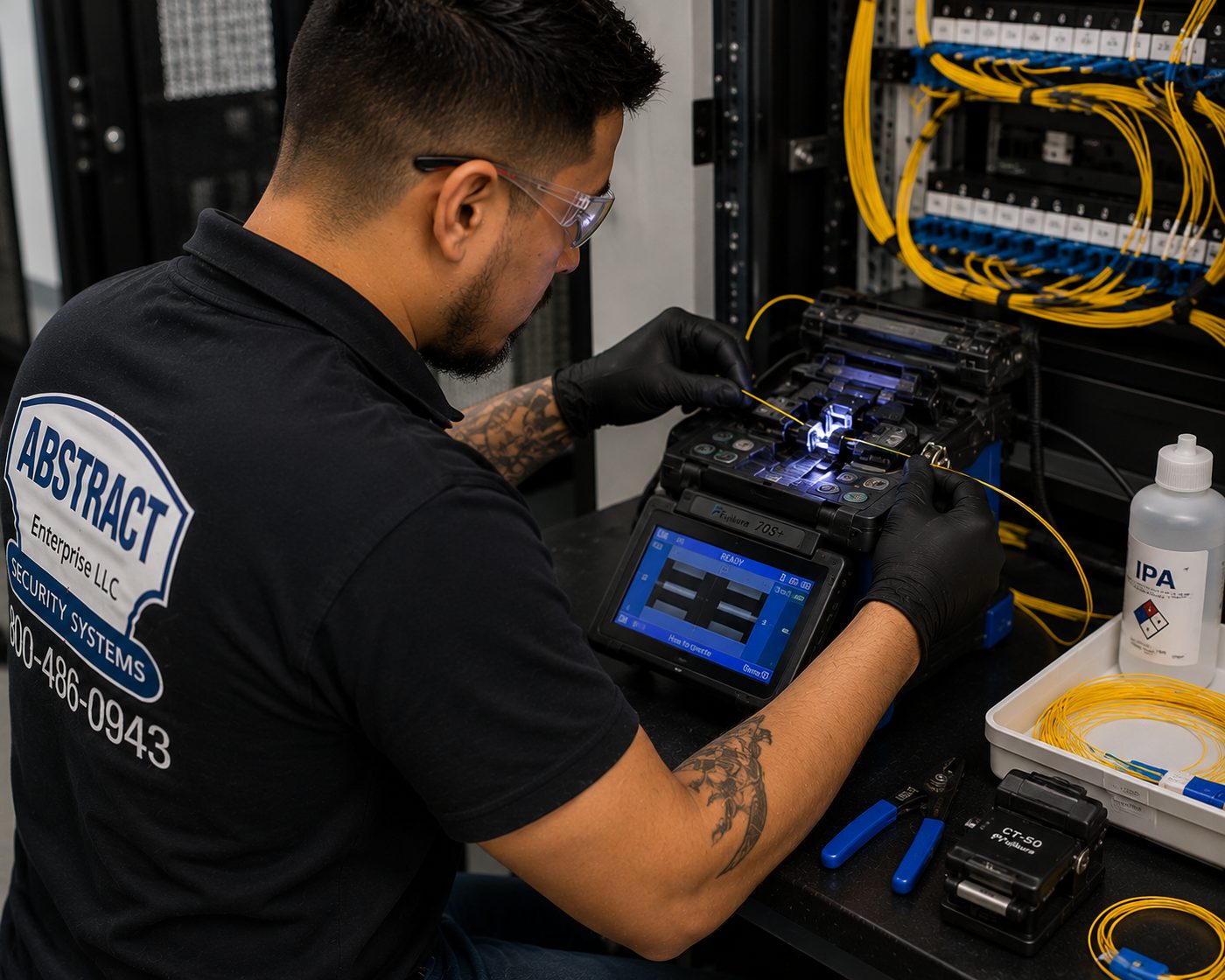

Backbone fibre between frames, which on a large footprint is most of the plant.
EQUIPMENT
Cable, Racks and Hardware We Standardize On
Solid copper only. Copper-clad aluminium marked as Cat6 runs hot under power and fails certification, and in a building with a dozen intermediate frames a cable that will not certify is a fault you will be chasing across a floorplate the size of ten football fields.
Cat6A Horizontal Cable
Usually the right call on a large floorplate. Cat6A installation carries 10 Gigabit to the full hundred-metre channel and handles higher PoE classes with less heat in a dense bundle — and on this building type the full channel is genuinely used rather than theoretical.
Cat6 Horizontal Cable
The working default for office, retail and suite work across the county. Dependable for gigabit and shorter 10G runs.
Multimode and Single-Mode Fiber
The backbone between every intermediate frame and the main one. On a building this size the internal fibre plant is larger than the entire copper plant of a normal commercial job.
Outdoor and Direct-Burial Cable
For dock, gate, guard post and trailer yard runs. Jacket rating and conduit decide whether the run is healthy in five years, and spare capacity in the trench decides what the next addition costs.
Tray, Strut and Industrial Pathway
Tray and strut across open high-bay ceilings, supported for vibration and mounted clear of forklift and trailer traffic.
Plenum, Riser and Shielded Jackets
Plenum CMP in air-handling ceilings, riser CMR in shafts, shielded where a run parallels heavy electrical or conveyor drives. Code requirement rather than an upgrade tier.
Patch Panels, Racks and Management
The same rack standard repeated at every IDF, with panels, keystones, plates, management, UPS and grounding specified identically so a technician can work any closet in the building.
Managed PoE Switches
Sized against total simultaneous draw rather than port count. A yard of exterior cameras with heaters plus scanning access points will find the ceiling of an undersized switch quickly.
Certification Testing
Wiremap and length on every drop as standard, with full TIA-568 certification on a Fluke DSX-class analyser — and on long runs the length result is not a formality, it is the point.

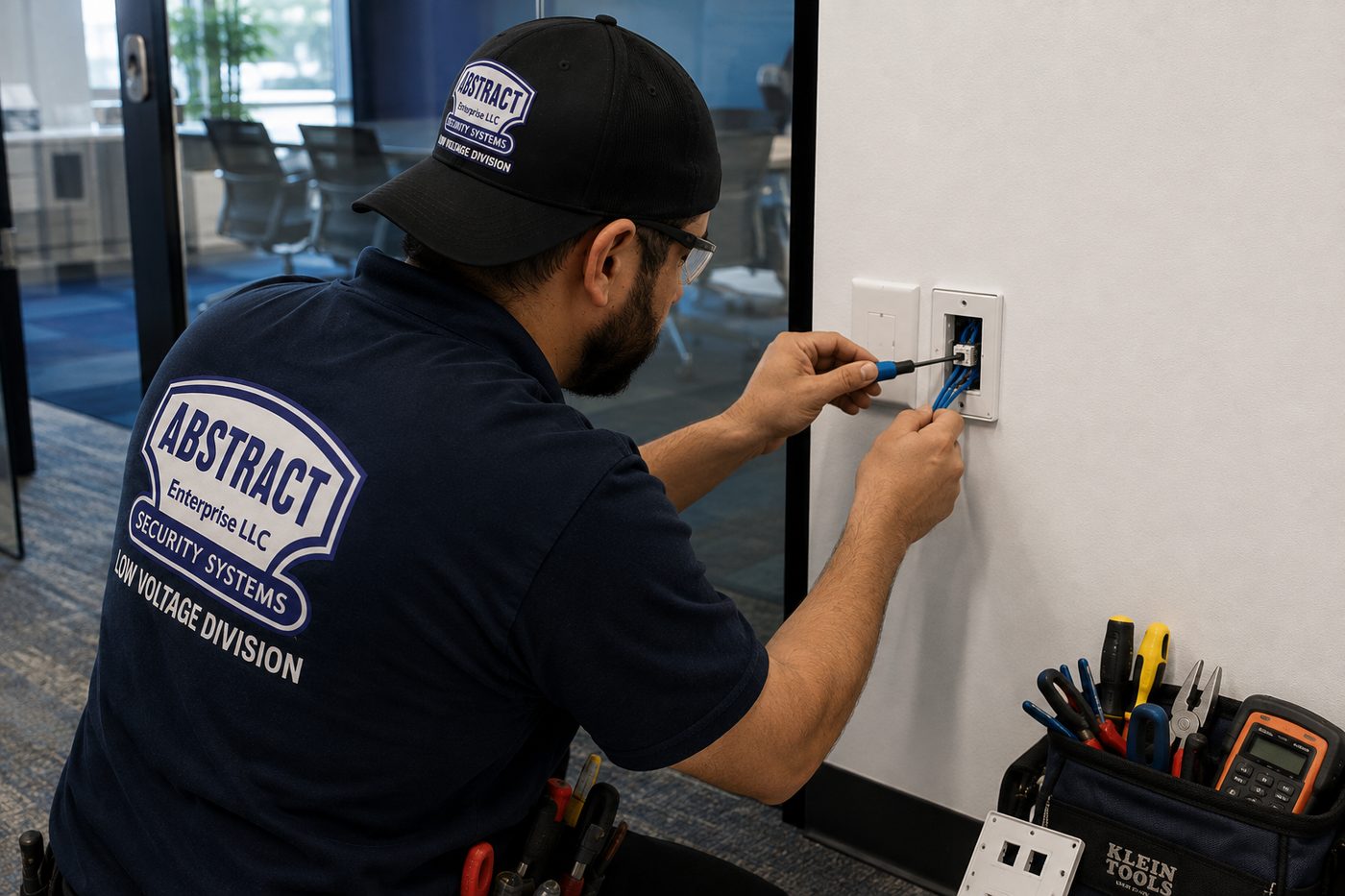

The user end of a drop, terminated and plated.
TERMINOLOGY
Orange County Low Voltage Terms, Translated
Most disagreements over a cabling quote come from two parties using the same words differently. This is the vocabulary you need here, weighted toward the terms that matter on a very large building.
The hundred-metre channel. The end-to-end distance limit on a copper run, patch cords included. On this county’s distribution buildings it is not a footnote, it is the constraint the whole design is built around.
IDF placement. Deciding where each intermediate frame sits so that every device in the building falls inside a channel from one of them. The single most consequential decision on a large-footprint job.
Horizontal versus backbone. Horizontal is closet to outlet. Backbone is frame to frame. On a small building the backbone is trivial; on a six-hundred-thousand-square-foot floorplate it is most of the design.
Dock position. One loading bay. A building with 116 of them has 116 places that may want a camera, a reader, a scanner or a light stack.
Drop. One run from closet to outlet, terminated both ends. Cabling is priced per drop, not per foot.
Home run. One cable from one device back to the closet with nothing shared along the way.
MDF and IDF. Main distribution frame where service enters; intermediate frames distributed through the building. Large buildings here run many IDFs and one MDF.
Patch panel. Where permanent cable ends and short patch cords take over, so a switch can be swapped without re-terminating anything.
Punch-down. Seating each conductor into its contact. Done carelessly the drop works and never certifies clean.
Wiremap versus certification. A wiremap answers whether every conductor is on the right pin. Certification measures length, crosstalk, return loss and delay against TIA-568 and issues a result per drop.
Spare capacity. Conduit and pathway installed beyond current need. On a building with a trailer yard, the trench is the expensive part and it is already paid for.
As-built. The closeout drawing and port map. On a multi-IDF building this is not paperwork — it is the only way anyone finds a fault later.

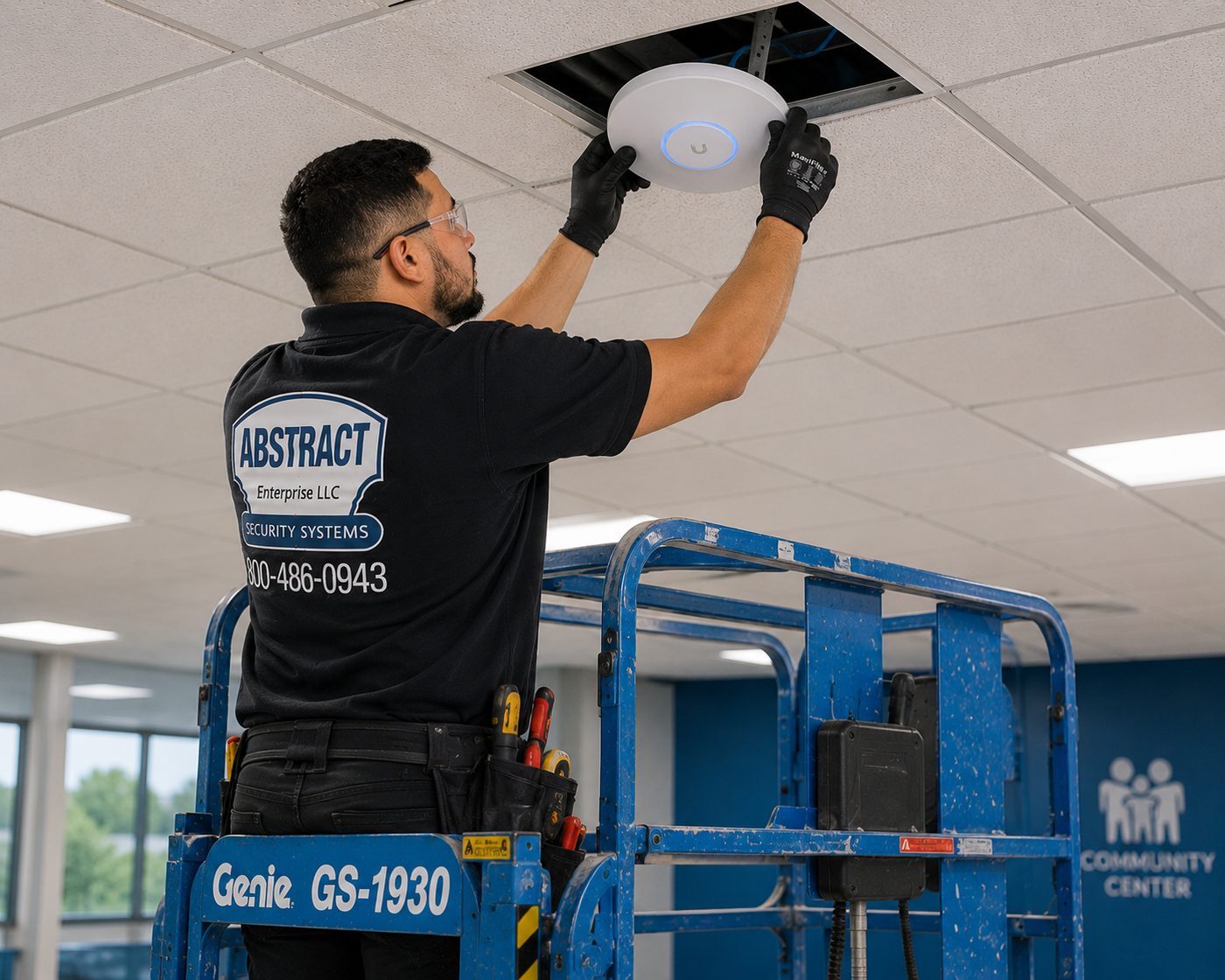

An access point set in a high ceiling, placed for coverage across racked aisles rather than an empty floor.
COMMERCIAL LOW VOLTAGE
Where We Work Across Orange County NY
Network cabling in Orange County NY runs from the Hudson at Newburgh west to the Pennsylvania line, and the building types change completely along the way.
Newburgh and the I-84 / I-87 interchange
A low voltage contractor in the Hudson Valley meets both halves of this county here. Structured cabling in Newburgh NY spans two very different jobs, and network wiring in Newburgh NY covers the same ground under the name most people use for it. North and west of the city sit the distribution buildings along Route 17K and Route 300, including filings across from Stewart describing 595,900 square feet with 116 loading docks. In the city itself, data cabling in Newburgh means downtown redevelopment, professional suites and older commercial stock along Broadway. A low voltage contractor in Newburgh needs both approaches.
Montgomery, Maybrook and Walden
Network cabling in Montgomery and structured cabling in Montgomery cover the mega-warehouse belt plus Orange County Airport, a 528-acre general aviation facility in the town. Data cabling in Maybrook, network cabling in Maybrook and a low voltage contractor in Maybrook serve the rail-adjacent industrial stock, while structured cabling in Walden and data cabling in Walden cover village commercial and flex property along the Wallkill River corridor. Structured cabling in Cornwall and network cabling in Cornwall reach the eastern towns toward the river, and data cabling in Wawayanda plus a low voltage contractor in Wawayanda serve the Route 6 and Route 284 industrial corridor west of Middletown.
New Windsor and the Stewart corridor
Data cabling in New Windsor and structured cabling in New Windsor follow the airport access roads — Route 747, Drury Lane and International Boulevard. New York Stewart International Airport covers 2,400 acres under Port Authority operation and handles oversized freight, express packages and daily FedEx and UPS flights, which sets the operational tempo for everything around it.
Middletown, Wallkill and Goshen
A low voltage contractor in Middletown NY works the Route 211 corridor, and network cabling in Middletown along Route 211 covers downtown commercial, retail and the healthcare base, while structured cabling in Wallkill and data cabling in Wallkill serve last-mile and cross-dock facilities. A low voltage contractor in Goshen, network cabling in Goshen and network wiring in Goshen NY take in the village core, county government property and the Legoland New York area off Route 17M.
Woodbury, Monroe, Harriman and Chester
Structured cabling in Woodbury and network cabling in Woodbury cover Woodbury Common Premium Outlets and the commercial property around the Route 32 and Route 17 junction. Data cabling in Monroe, structured cabling in Monroe and network wiring in Monroe NY serve village commercial and professional suites, network cabling in Harriman and data cabling in Harriman the Route 17 corridor and Harriman Business Park area, and structured cabling in Chester plus a low voltage contractor in Chester the light industrial and village stock along Route 17M.
Warwick, Port Jervis and the western county
A low voltage contractor in Warwick works village commercial, agricultural operations and school district property along Route 94, with network wiring in Warwick NY covering the same stock, with structured cabling in Florida and data cabling in Florida serving the black dirt agricultural belt and its packing and storage operations, and data cabling in Port Jervis covers the city’s downtown and municipal stock near the Pennsylvania and New Jersey lines. Structured cabling in Port Jervis and network cabling in Warwick mean smaller drop counts on longer drives, which we group geographically rather than pricing one at a time.

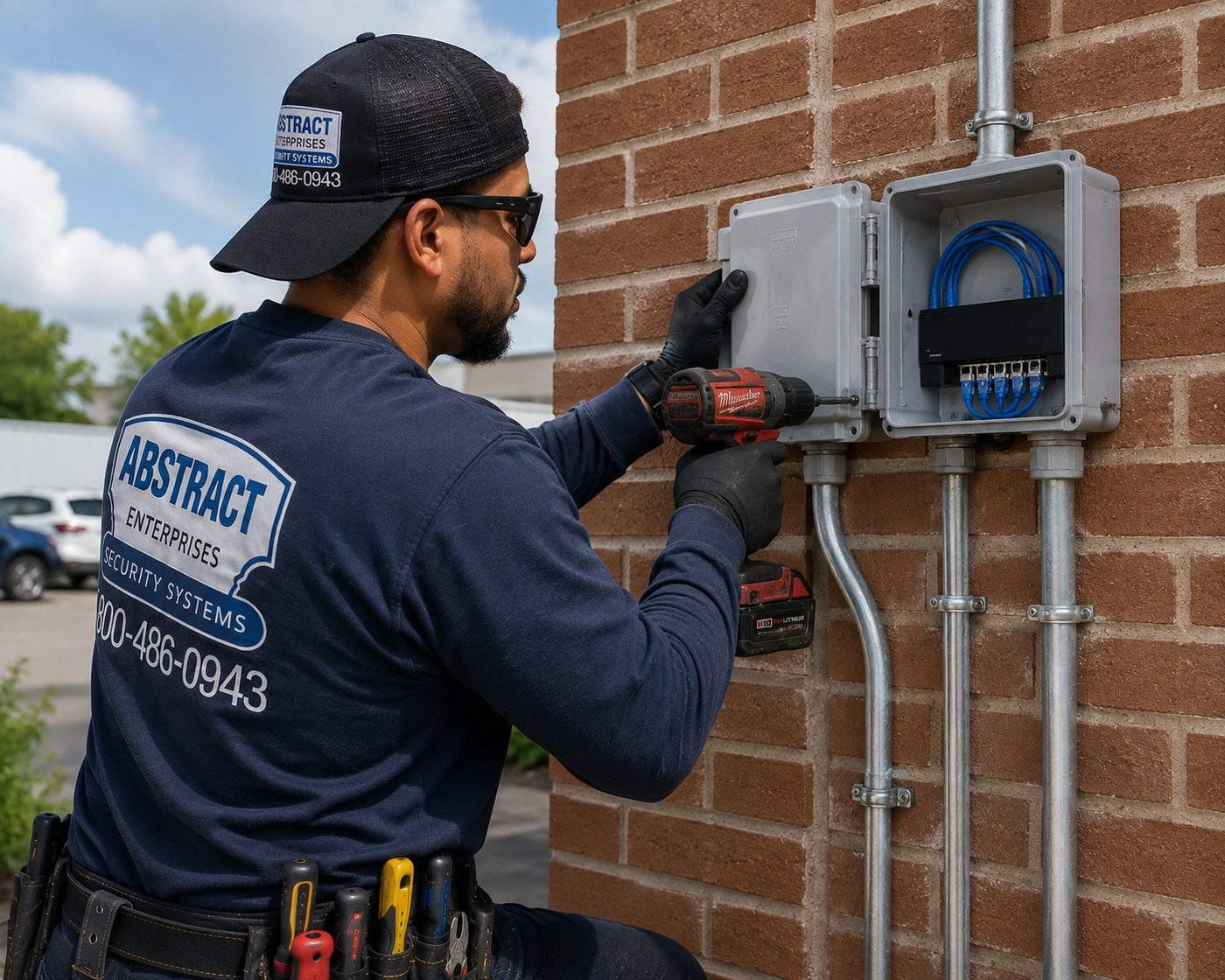

A rated exterior enclosure serving a gate or yard position, fibre-fed from the building.
INDUSTRIES
Who We Cable For in Orange County
Distribution and Fulfilment
Multi-IDF backbone, dock-level device density, yard and gate runs.
Last-Mile and Cross-Dock
Faster turnover, inherited plant, and certification before replacement.
Air Cargo and Freight Support
Operational-hours work around the Stewart corridor.
Destination Retail and Hospitality
Outlet and attraction property, POS reliability, trading-hours windows.
Newburgh, Middletown and Port Jervis redevelopment and professional suites.
Schools and Municipal
Recess and summer windows, district and county documentation standards.
Light Industrial and Flex
Tray pathway, dock runs and environment-rated cable at smaller scale.
General Contractors
Low voltage as a subcontracted trade, with COI, schedule discipline and a closeout package.

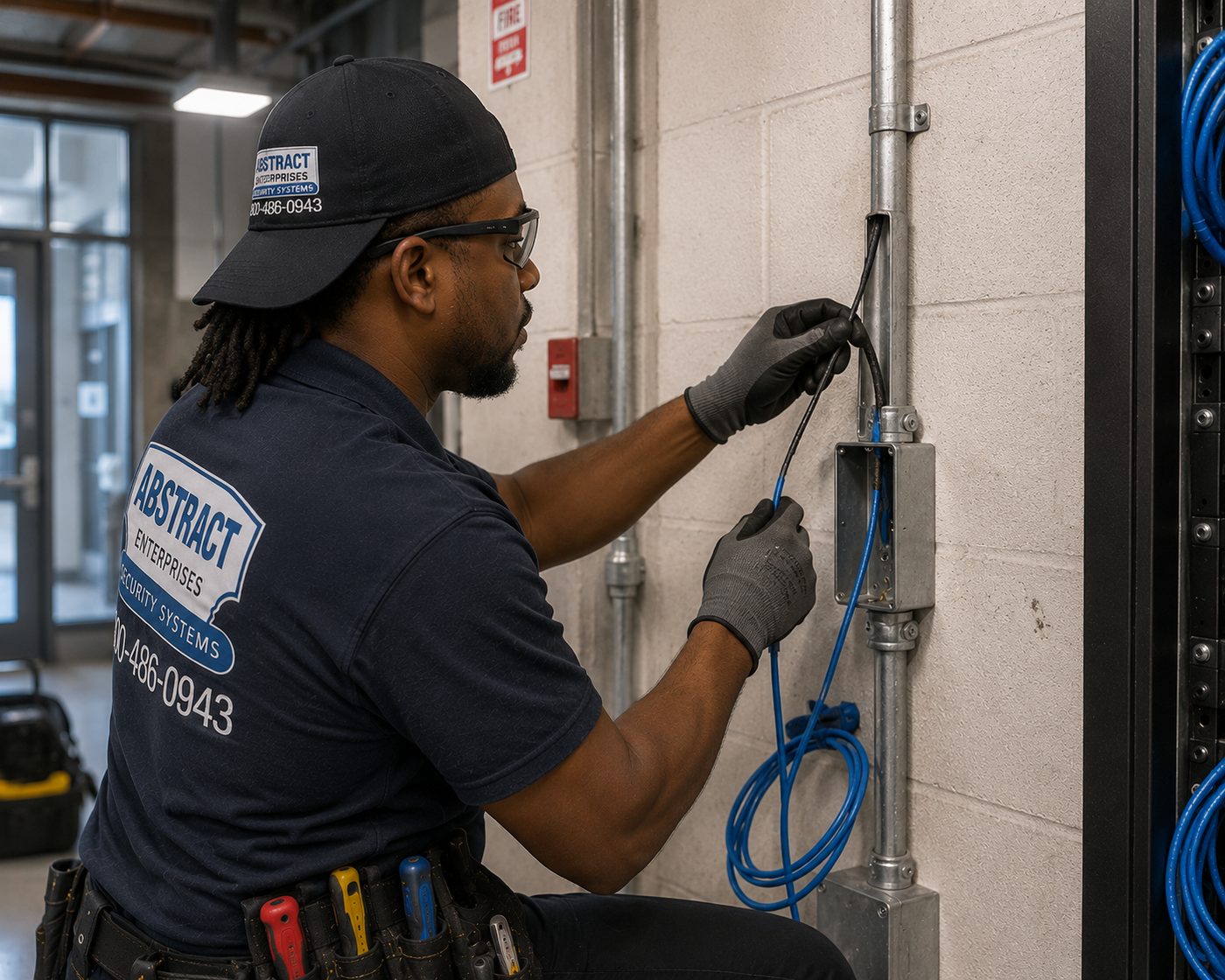

Cable drawn through conduit, the slow half of any run that leaves open ceiling.
HOW IT WORKS
How an Orange County Low Voltage Project Runs
Measure the footprint. On a large building this comes before anything else. The building is walked or the drawings are scaled, and the hundred-metre reach from each candidate closet position is plotted.
Fix the IDF layout. How many intermediate frames, where each sits, and which devices each serves. Everything downstream depends on this being right.
Backbone plan. Fibre from each IDF to the main frame, routed and sized with spare strands, plus any run leaving the building to a gatehouse or yard.
Written scope and proposal. Drop count and locations, closet count stated explicitly, cable category and jacket rating per space, pathway method, testing level, labelling standard, documentation deliverable, the municipal position and a written exclusions list.
Rough-in. Tray and pathway installed clear of traffic, cable pulled with the correct jacket for each space.
Termination. Keystones at the outlet, patch panel punch-down at each closet, every rack built to the same standard.
Testing. Wiremap and length on one hundred percent of drops, with full TIA-568 certification where specified — and on long runs the length result gets read, not filed.
Labelling, as-built and closeout. Every cable labelled both ends, a drawing showing every closet and what it serves, and a port map per frame.
Start and completion timing turns on building conditions, equipment availability, access to the property, permitting where it applies, and how large the project is.

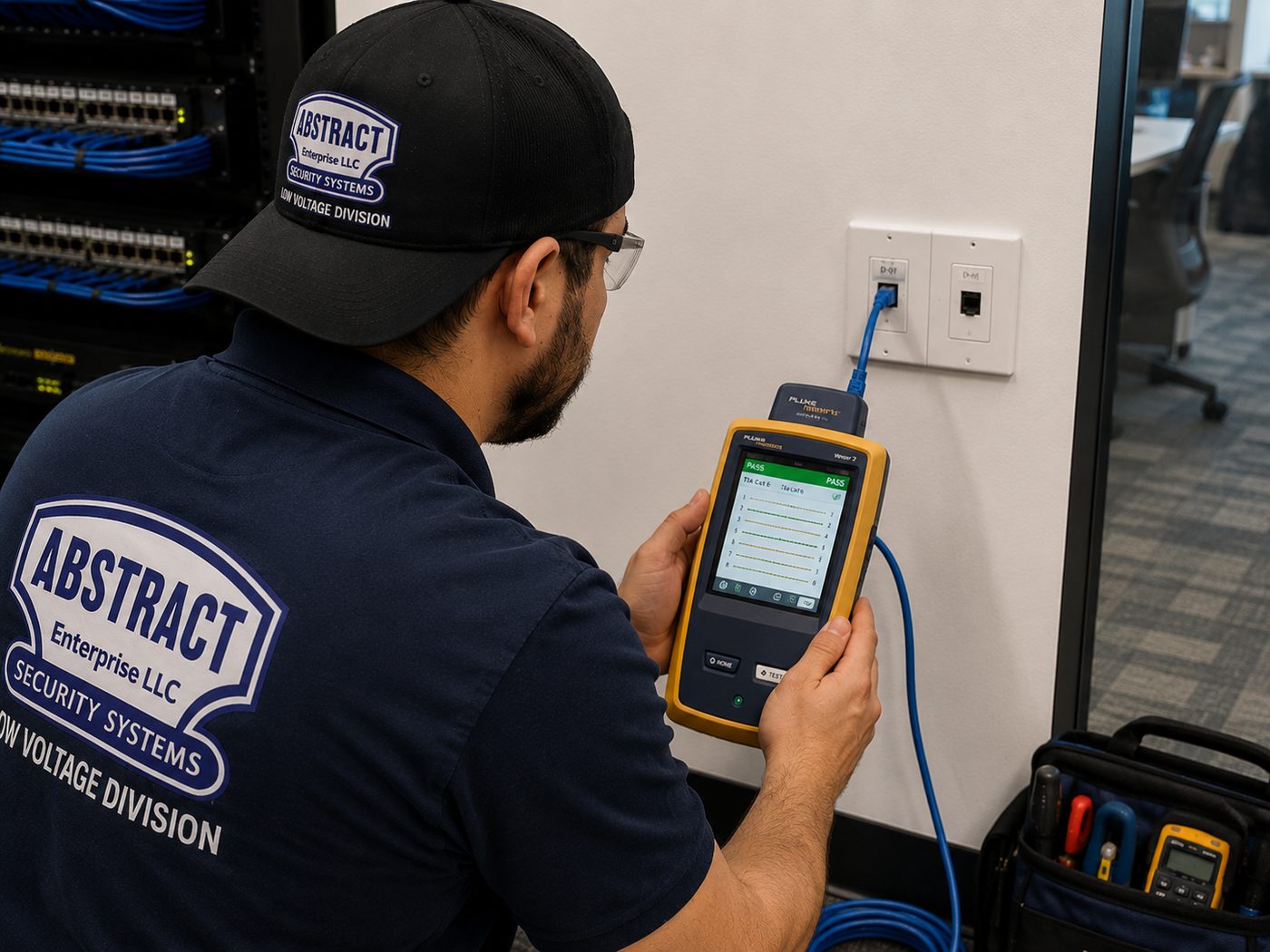

On long runs the length column is the whole reason to certify.
YOUR QUESTIONS ANSWERED
Low Voltage Installation in Orange County: Your Questions Answered
How many telecom closets does a large warehouse actually need?
More than most people expect, and the number comes from geometry rather than opinion. A copper run is limited to one hundred metres end to end including patch cords, so each closet serves a circle roughly ninety metres in working radius once you allow for routing that is never straight. On a six-hundred-thousand-square-foot floorplate that means several intermediate frames, not one telecom room. We plot the reach from each candidate position at survey and tell you the closet count before quoting the drops, because the closet count drives the price far more than the per-drop rate does.
Can we save money by putting one big closet in the middle?
Not on a building this size, and it is worth understanding why rather than taking it on trust. One central closet on a very large footprint leaves the corners past the channel limit. Runs terminated slightly over distance work perfectly at gigabit idle and start failing once a powered device draws on them — so the fault appears months later, in the corners, intermittently, and gets blamed on the equipment. The cheaper path is the correct closet count on day one.
How much does low voltage installation cost in Orange County?
Structured cabling cost in Orange County starts from published per-drop rates rather than a range. Cat6 installation cost in Orange County begins at $175 for a data or voice drop, $250 for Cat6A, with a $500 minimum job. Independent industry guides put commercial Cat6 in a national band of roughly $125 to $400 per drop fully installed and tested, and note that labour rather than cable drives the number. On a large building here the bigger variable is not the drop rate at all — it is how many closets and how much internal fibre backbone the footprint requires.
Why is the fibre bill so large on a warehouse?
Because on this building type the backbone is the plant. Every intermediate frame needs fibre back to the main frame, routed on supported pathway across the building, terminated and tested at both ends. On a normal commercial job the backbone is a short run between two rooms. On a six-hundred-thousand-square-foot floorplate the internal fibre can exceed the entire copper plant of an ordinary office job, and it is the line most often missing from a quote written by somebody who has not measured.
We have 116 dock positions. Does each one need cabling?
That depends on what goes at them, and it is worth deciding early because dock-level density drives both the drop count and the closet layout. Cameras, readers, scanners, light stacks and dock controls all consume ports and all sit at the building perimeter — the part furthest from any central position. A building with a hundred-plus docks frequently needs frames placed specifically to serve the dock line rather than the office core.
Can you cable the trailer yard and gatehouse?
Yes, on outdoor-rated cable in conduit. Anything leaving the building needs an appropriate jacket, and any run crossing open ground should go in with spare capacity because reopening a trench costs what it cost the first time. Gate positions, guard posts, yard cameras and trailer storage areas all sit well outside copper distance from the building core, so they are usually a fibre-fed remote enclosure rather than a long copper run.
Do I need a permit for low voltage work in Orange County?
The low voltage permit position in Orange County is municipal rather than county-wide. The county holds cities, towns and villages each running their own building department, so the answer that applies is your municipality’s. Pure structured cabling frequently does not trigger a permit, and that changes once work involves opening walls or ceilings, penetrating rated assemblies, or anything tied to a fire alarm panel. On a large new-build there are also the project’s own filings, which is a question for the general contractor and design team. We establish the position before quoting.
Is a low voltage licence required in Orange County?
The low voltage license question in Orange County does not have a single published county-level answer of the kind Suffolk maintains. Requirements sit with the municipality, and separately, security and fire alarm work is licensed at state level by New York regardless of which town the building is in — commonly referred to as the NYS Department of State security and fire alarm installer licence, and cited as Article 6-D of the General Business Law, which covers monitored alarm, camera and access control work rather than plain data cabling. It is also worth knowing that New York does not issue a single statewide low voltage contractor licence for basic data cabling — that is why the answer keeps coming back to your municipality and to the type of system rather than to one credential. Confirm the current scope with the Department of State for your specific work. Ask any bidder which specific jurisdictions they hold rather than whether they are “licensed in Orange,” and confirm the current requirement with your building department.
Can you work while the facility is running?
Yes, and on a distribution building it is usually the only option. Work is staged aisle by aisle or dock line by dock line rather than shutting a floor, tray goes in around live operations, and anything needing an area clear is identified at survey and booked rather than discovered mid-shift. On the airport corridor the tempo is operational rather than nine to five, and we schedule to it.
The previous tenant left cabling behind. Is it usable?
Frequently, and on last-mile and cross-dock buildings this comes up constantly because they turn over faster than the mega-boxes. Certify a representative sample before ordering anything. The pathway — tray, conduit, sleeves — is the expensive half and usually survives fine; the copper is the question. Anything that certifies clean and lands where you need it stays, named in the proposal.
Can the electrician on our project just pull the data cable too?
Low voltage vs electrician in Orange County has an extra dimension on a large building. An electrician is the right trade for line voltage and many will pull Cat6 competently. The question here is whether they will do the distance work — plotting closet positions against the channel limit across the whole footprint before anything is pulled — and whether they carry a certification analyser, work to TIA-568, and hand over a labelled port map per frame. On a small suite the difference is modest. On six hundred thousand square feet it is the whole job.
If you are comparing several structured cabling companies rather than choosing a trade, ask any data cabling installers you shortlist for the same nine lines — drop count and locations, cable category and jacket rating per space, pathway method and who firestops, closet and rack scope, testing level, labelling standard, documentation deliverable, access assumptions and a written exclusions list — plus the closet count and the backbone. Searching for a low voltage contractor near me in Orange County, or for the best low voltage company, returns whoever ranks or pays rather than whoever measured your building.
Scanners drop out in certain aisles. Is that the cabling?
Often it is coverage rather than cable. Access points placed against an empty floorplate behave differently once racking is up and stock is in, because product absorbs signal. After that, check the switch — a PoE budget exceeded once every port is populated makes equipment restart in rotation. Cable faults and over-distance runs are third. A site walk with the racking in place plus the switch statistics normally separates the three.
Do you work with general contractors on Orange County projects?
Yes, and on new distribution construction it is most of what we do. Certificate of insurance up front naming whoever the project requires, dates committed and held, rough-in sequenced with the other trades before anything closes, and a closeout set with drawings and a port map per frame. On a permitted project we confirm the municipal position with the GC early rather than assuming the low-voltage scope is covered by the project filing.

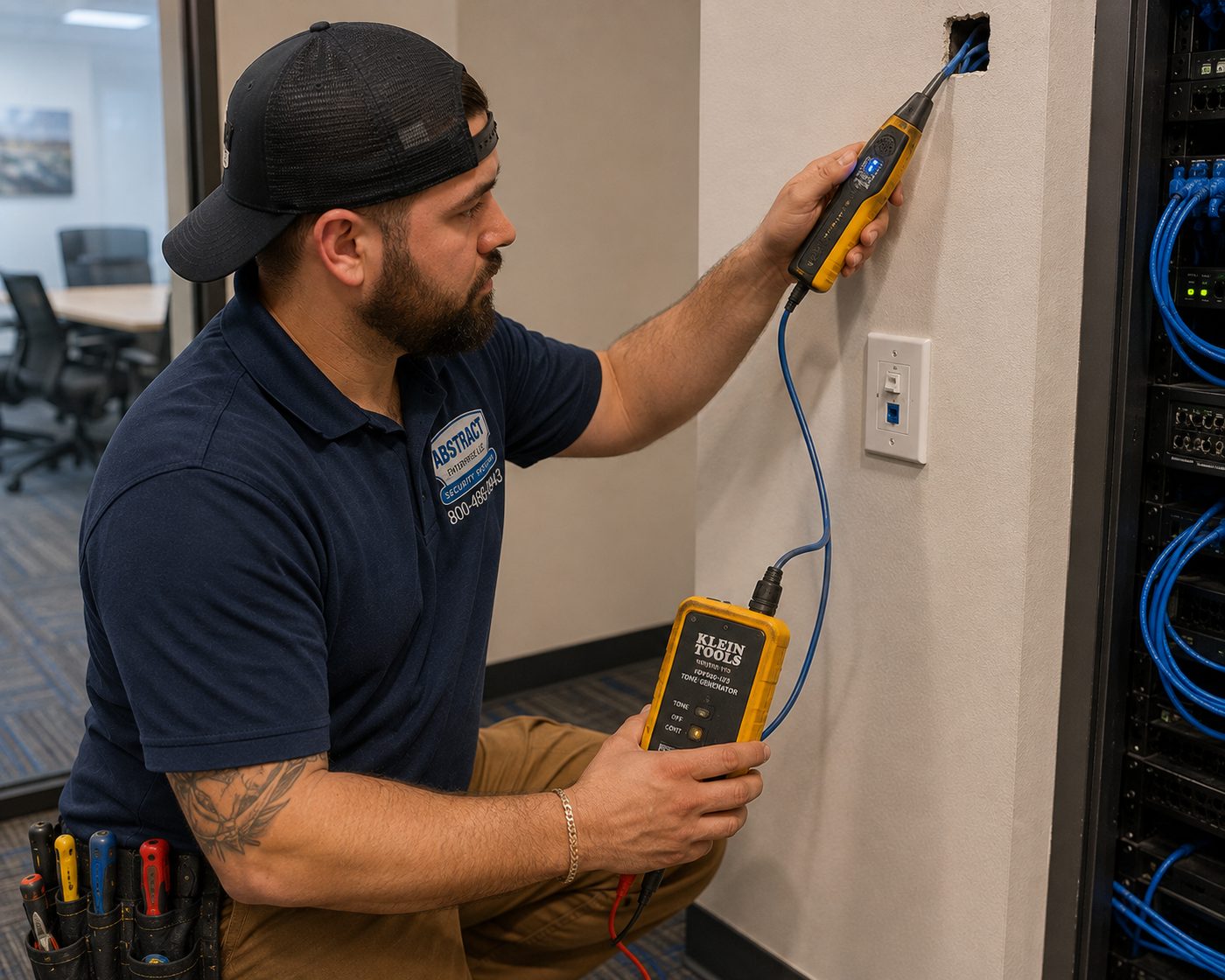

Toning an unlabelled run, common on buildings that changed tenant quickly.
AI OVERVIEW REALITY CHECK
What AI Answers Get Wrong About Orange County Low Voltage
Every answer prices a building that fits in one closet
Generated answers about this county are genuinely good, and the best of them are better than most contractors’ own websites. They name Article 6-D correctly, they know New York issues no statewide low voltage contractor licence for data cabling, they list IDF and MDF closet buildouts as a service, and they name warehouses and distribution centres as a customer type. Very little of that is wrong.
Here is the gap, and it is narrower and more interesting than simply being wrong. The same answer that lists IDF closets as a service, and warehouses as a customer, then prices large projects on “drop count, cable type and accessibility” — exactly as it prices a small office. It knows intermediate frames exist and it knows distribution buildings exist, and it never connects the two. Filings across from Stewart describe warehouses near six hundred thousand square feet with over a hundred loading docks; a Cornwall proposal runs to 1.7 million square feet across five buildings. On those footprints a single telecom room physically cannot reach the walls, and the closet count is not a detail inside the price — it is the price.
The number that matters is not the drop rate. It is the closet count, and no summary produces one because no summary knows how big your building is. That is not a criticism of the tool so much as a limit of the format: a general answer has to describe a general building, and this county’s signature building is not general.
The hundred-metre limit is the design, not a footnote
A copper run is limited to one hundred metres end to end including patch cords. Every general answer that mentions it treats it as a specification detail. On a distribution floorplate it is the constraint the entire layout is built around.
Each closet effectively serves a working radius closer to ninety metres once routing is accounted for, because cable never travels in a straight line. Plotting those circles across a large footprint is what determines how many intermediate frames the building needs and where each one goes.
Get it wrong and the failure is nasty: runs slightly over distance work perfectly at gigabit idle and start dropping once a powered device draws on them. The symptom appears months later, in the corners, intermittently — and gets blamed on the equipment.
Backbone treated as an afterthought when it is most of the plant
On an ordinary commercial job the backbone is a short fibre run between two rooms and barely registers in a quote. On a six-hundred-thousand-square-foot building it is fibre from every intermediate frame to the main one, routed on supported pathway across the whole footprint, terminated and tested at both ends.
That internal fibre can exceed the entire copper plant of a normal office job. It is also the line most often missing from a quote written by somebody who never measured the building.
If you are comparing bids on a large building, the honest test is simple: which of them states a closet count and a backbone scope, and which quotes a drop rate and leaves both to be discovered.
Dock-level density does not exist in any generated answer
A building with a hundred-plus loading docks has a hundred-plus positions that may want a camera, a reader, a scanner, a light stack or dock controls — all at the building perimeter, the part furthest from any central position.
That density frequently forces frames placed specifically to serve the dock line rather than the office core, which is the opposite of how a conventional building is laid out. Generated answers describe an office core with drops radiating outward, because that is what most commercial buildings look like.
It is also why a per-drop quote on this building type can be wildly wrong in either direction without anybody noticing until the walk-through.
Racking changes wireless coverage, and no answer says so
Access points placed against an empty floorplate behave differently once racking is installed and stock is in, because product absorbs signal. A coverage plan drawn on a bare drawing can be genuinely wrong by the time the building is operating.
The practical consequence is that scanner dropouts in specific aisles are usually a coverage problem rather than a cable problem, and chasing the cabling first wastes weeks.
No general summary raises it, because it sits at the intersection of cabling and operations rather than inside either one.
Yard, gate and trailer positions left out entirely
These buildings come with trailer storage, gatehouses, guard posts and yard cameras, all sitting well outside copper distance from the building core.
Those are fibre-fed remote positions in conduit, not long copper runs, and the trench across open ground is the expensive part of reaching them. Spare capacity goes in while the ground is open or the next addition pays the excavation again.
An answer describing a building as a sealed box with drops inside it has left out a whole category of work that is standard on this county’s largest sites.
What an honest Orange County proposal contains
Nine lines, plus two this county adds on any large building. Drop count and locations. Cable category and jacket rating per space. Pathway method and who firestops. Closet and rack scope. Testing level, stated as wiremap or full certification. Labelling standard. Documentation deliverable. Access assumptions. A written exclusions list. Then: the closet count and where each frame sits, and the internal fibre backbone scope.
Drop those last two and the number is not comparable to anything. The contractor who looks expensive is usually the only one who walked the footprint and counted the frames the building actually needs.
Send the list to every bidder, ourselves among them. On a building this size, a contractor who will not state a closet count before starting has not yet measured it.
Big building? We will give you the closet count before the price.
Loading out for the day: spools, hand tools and test gear.
PRICING
Orange County Low Voltage Installation Pricing
These are the figures we publish, not a band we hide behind. What a drop includes on an Orange County job: solid copper cable, the jack and plate at the workstation end, the panel termination at the closet end, a wiremap test, labels at both ends and a patch cable.
Item
Starting price
Notes
Cat6 data or voice drop
From $175
Gigabit, standard PoE, solid copper
Cat6A drop
From $250
10G to the full channel, higher PoE classes
Additional IDF closet build
Itemized per frame
Rack, panels, management, UPS, grounding
Internal fiber backbone
Custom quote
Frame to frame, terminated and tested both ends
Dock, gate and yard runs
Quoted per run
Outdoor-rated cable and conduit, spare capacity included
Minimum job size
$500
Mobilization floor
Service, troubleshooting and callbacks
$195/hr, 3-hour minimum
Service work only, not initial installation
What moves the number up: footprint that forces additional closets, internal fibre backbone between frames, dock-level device density, trenching to gates and trailer yards, high-bay lift work, live-operation staging, plenum jacket, and any municipal requirement attached to the work.
What moves the number down: accessible pathway already in place, pre-drywall or pre-racking rough-in, grouping drops rather than scattering them, bundling multiple systems into one mobilization, and geographically grouped multi-site work across the county.
Owner-supplied materials are welcome. Solid copper and a jacket rated for the space are the only two conditions, and we will say so before installation if a delivery does not meet them. Every per-drop figure sits on our structured cabling pricing page.
Need Low Voltage Repair in Orange County?
Dead drops, cameras offline at the dock line, scanners dropping in specific aisles, or a closet nobody can trace. On a multi-frame building we start with the port map and the switch statistics rather than guessing. Service is billed at $195/hr with a three-hour minimum.
One closet, roughly five Cat6 drops, panel-terminated and tested. Suits a Goshen village office, a dock office or a small professional suite. Arithmetic on the published $175 rate.
Standard
From $1,750 installed
Around ten drops with a wall-mount rack build, panel and closet dress-out. The common shape for a Middletown or Newburgh office fit-out. Arithmetic on the published $175 rate; Cat6A from $250.
Premium
From $5,250 installed
Twenty-one Cat6A drops or more, plus additional IDF frames, internal fibre backbone and certification with drawings. Where distribution-scale work starts. Arithmetic on the published $250 rate.
Each figure above is the published rate times the drop count next to it — no hidden assumptions and no quote implied. On a large building the closet count and the internal fibre backbone move the total far more than the drop rate does, and both come out of the survey. The floor on any job is $500.
Already bought your cable and hardware? Ask about a bring-your-own-equipment (BYOE) install — labour-only pathway, pulling, termination, testing and labelling of materials you supply, provided the cable is solid copper and correctly jacket-rated for the space.
Nothing is leased and nothing recurs — the installation belongs to the property. Products we supply carry three years. Return visits and callbacks are $195/hour with a three-hour minimum, so $585.
Reader, lock power and request-to-exit pulled as one door bundle.
LOCAL PROBLEMS
Low Voltage Problems Specific to Orange County
One closet specified for a building that needs five. The most common and most expensive Orange County error, and it is usually made on a drawing rather than on site.
Corner runs terminated over distance. They pass a wiremap, work at idle, and start failing months later once powered devices draw on them.
Backbone missing from the quote. The frame-to-frame fibre on a large footprint can exceed a normal job’s entire copper plant, and it is the line most often absent.
Dock line treated as an afterthought. A hundred-plus perimeter positions scoped after the office core, when they should have driven the frame placement.
Coverage planned on an empty floorplate. Access points laid out before racking, then scanners dropping in specific aisles once stock absorbs the signal.
Trenches dug without spare conduit. The excavation to a gatehouse or trailer yard is the expensive part and it is already paid for.
Inherited plant carried forward untested. Common on last-mile buildings that turn over quickly, and it is how a new system inherits somebody else’s fault.
Growth past the switch’s power ceiling. Yard cameras with heaters plus scanning access points, combined draw crossing the PoE budget, everything cycling, and the cabling blamed.
FIELD NOTES
Field Notes from Orange County
Walk the footprint before you price anything. On this county’s big buildings the closet count is the number that matters, and it cannot be guessed from a drop schedule. An hour walking the slab saves a second mobilization.
Start at the dock line, not the office. On a building with a hundred-plus docks the perimeter has more devices than the core, and frame placement should follow the devices rather than the floor plan’s centre of gravity.
Read the length results. On short runs certification is a formality. On these buildings the length column is the whole reason to test, and a run at ninety-eight metres is a problem waiting for a powered device.
Put spare conduit in the trench. Reaching a gatehouse or yard costs mostly excavation. Doing it twice costs mostly excavation twice.

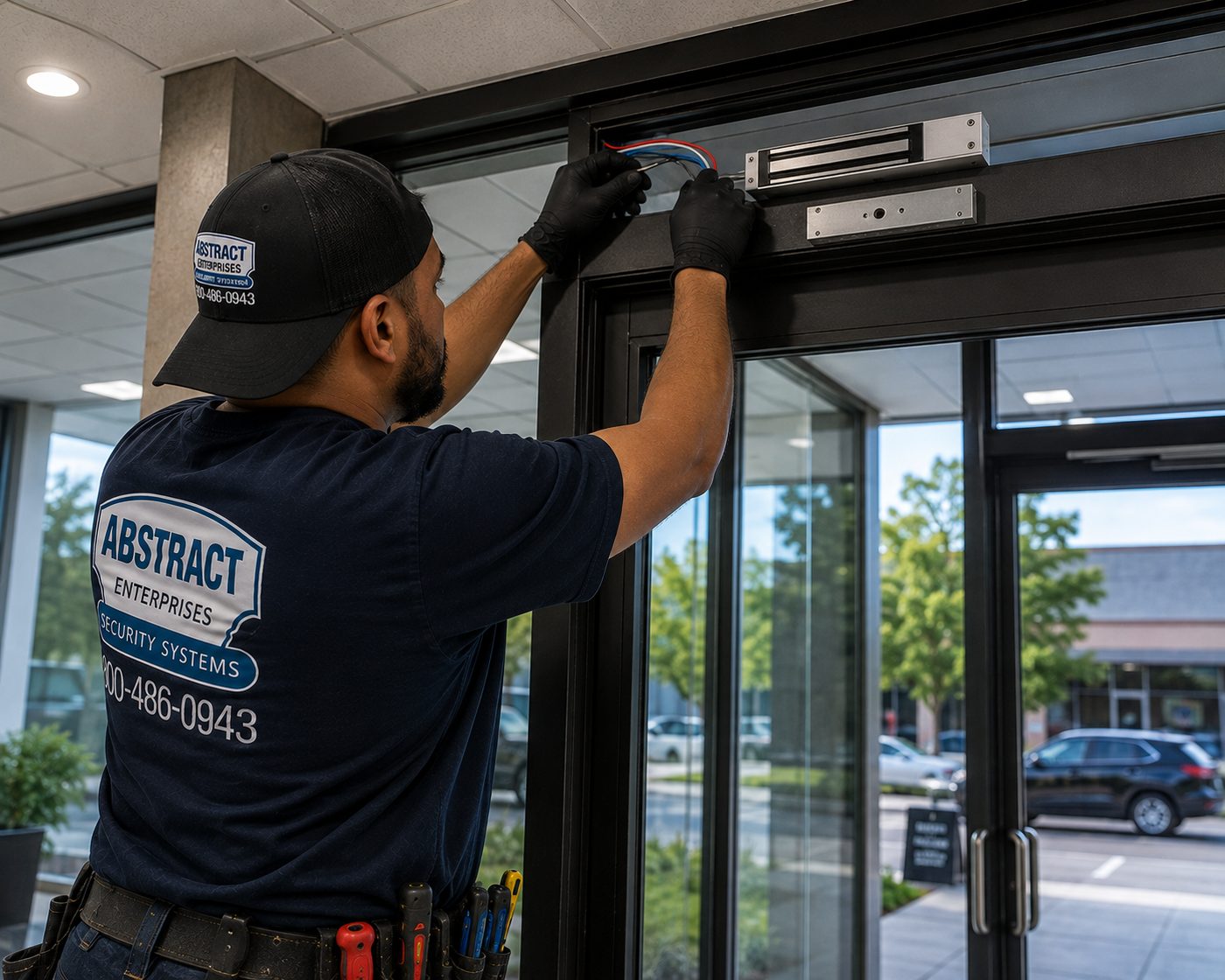

Maglock at the header with power and monitoring in the same bundle.
COVERAGE AREA
Orange County Low Voltage Coverage
We install and service low-voltage systems across Orange County, from the Hudson at Newburgh west to Port Jervis.
Newburgh and New Windsor
Downtown commercial plus the I-84, I-87 and Stewart Airport corridor.
Montgomery, Maybrook and Walden
The mega-warehouse belt and Orange County Airport.
Middletown and Wallkill
Downtown retail, healthcare, last-mile and cross-dock facilities.
Goshen, Chester and Florida
Village commercial, county government and the Legoland New York area.
Woodbury, Monroe and Harriman
Woodbury Common and the Route 17 and Route 32 corridor.
Warwick and Port Jervis
Western county village, municipal, school and agricultural property.
High-bay tray across a distribution floor, where the run lengths decide the closet count.
FAQ
Orange County Low Voltage Installation FAQ
What counts as low voltage wiring in Orange County?
Limited-energy circuits carrying signalling, communication, alarm and data rather than line power: structured data and voice cabling, camera wiring, access control wiring, intercom and entry runs, intrusion alarm circuits, audio-visual and paging, signage and building control wiring. Most of the industry works to a fifty-volt dividing line; what applies to your specific scope is set by your municipality.
Will you tell us the closet count before quoting?
Yes, and on any building over about 100,000 square feet we treat it as the first deliverable rather than a detail. We plot the hundred-metre reach from each candidate frame position across the footprint and state how many intermediate frames the building needs and where they sit, before pricing the drops.
Do you handle new distribution construction with a GC?
Yes. Certificate of insurance up front naming whoever the project requires, dates committed and held, rough-in sequenced with the other trades before ceilings and racking close, and a closeout set with drawings and a port map for every frame.
Can you cable outdoor positions like gates and trailer yards?
Yes, on outdoor-rated cable in conduit. Positions that far from the building core are usually fibre-fed remote enclosures rather than long copper runs, and we put spare capacity in any trench because the excavation is the expensive part.
Can you work in a live distribution facility?
Yes, and it is usually the only option. Work is staged aisle by aisle or dock line by dock line rather than shutting a floor, and anything needing an area clear is identified at survey and booked rather than discovered mid-shift.
How long does an Orange County cabling job take?
A small suite with accessible pathway is typically a single visit. A distribution building is measured in frames rather than days, because each closet is effectively its own small project. Start and completion timing turns on building conditions, equipment availability, access to the property, permitting where it applies, and how large the project is.
Will you install cable we purchased ourselves?
Yes, after two checks. It has to be solid copper, and the jacket has to suit every space the run crosses. Copper-clad aluminium is turned away at delivery rather than found at certification. Materials stay under the supplier's warranty; our labour warranty is unaffected either way.
Is certification testing worth paying for on a warehouse?
On this building type it is the most useful money in the job. Wiremap and length testing is performed on one hundred percent of drops as standard, and full TIA-568 certification on a Fluke DSX-class analyser gives you the length result per drop — which on long runs is the number that predicts whether a run will fail under load two years from now.
What documentation do we get at handover?
Every cable labelled both ends against a scheme the port map matches, a drawing showing every frame and what it serves, a port map per closet, configuration notes and a digital closeout set. On a multi-frame building this is the only practical way anyone finds a fault later.
What is the rate for service on a system you did not install?
Service, troubleshooting and callback work on systems not originally installed by us is billed at $195 per hour with a three-hour minimum. That rate applies to service calls, not to initial installation projects, which are quoted by scope from a free survey.
What does the Orange County warranty cover?
Abstract Enterprises Security Systems provides a three-year warranty on products supplied by us. There are no monthly fees on the systems we install.
Can you take over a partly finished building?
Yes, starting with an assessment rather than a quote: which runs certify, whether the frame layout that was started actually reaches the whole footprint, what the existing hardware can carry, and where the previous scope fell short. On a large building the most common finding is too few closets.
Still deciding? The survey is free and settles the closet count.
Dead drops, offline devices at the perimeter, or a building nobody documented. Most single-fault calls are settled on the first visit, and you keep a labelled port map afterwards so the next one is quicker. $195/hr with a three-hour minimum for service and callback work.
Request Your Free Orange County Low Voltage Survey
Tell us the property, the municipality and the building footprint. On anything over about 100,000 square feet we will come back with a closet count before a price.
Abstract Enterprises Security Systems provides a three-year warranty on products supplied by us. Service, troubleshooting and callback work on systems not originally installed by us is billed at $195 per hour with a three-hour minimum; that rate applies to service calls rather than to initial installation projects. There are no monthly fees on the systems we install. Start and completion timing turns on building conditions, equipment availability, access to the property, permitting where it applies, and how large the project is.
Infrastructure and development figures on this page cite Orange County, Orange County Partnership, Port Authority and published planning and news sources, and describe projects at the filing or proposal stage which may change. They are provided for general information about the local commercial environment and are not legal advice. Permitting and licensing requirements vary by municipality and change over time; confirm what applies to your building with your city, town or village.
ALL AREAS SERVED
Low Voltage Installation by Area
Every area covered by this silo. Areas without a dedicated low-voltage page are served on the same terms, and those links go to a survey booking.
Reviewed and updated August 12, 2026 by Anwar Timothy of Abstract Enterprises Security Systems, NYS Low-Voltage Electrical Contractor License #12000287431. Changelog — Aug 2026: page published for Orange County. · Aug 2026: distribution-scale IDF placement guidance written against published planning filings and county infrastructure sources. · Aug 2026: Stewart Airport corridor and dock-line device density sections added.
