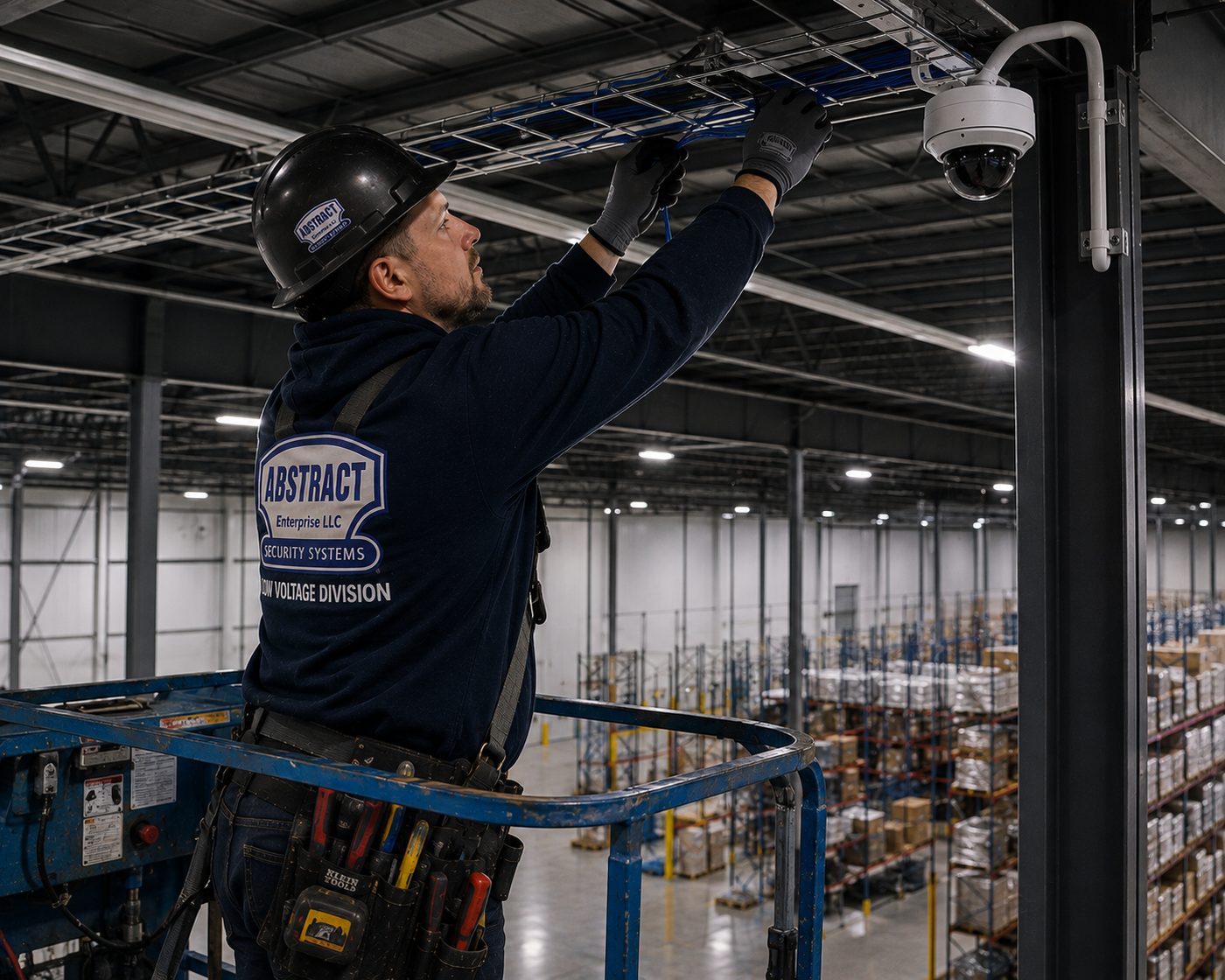

Low voltage installation in the Bronx: high-bay tray worked from a lift above a distribution floor that does not stop running.
We keep an office at 460 E Fordham Rd, and the reason matters more here than in most boroughs. A great deal of Bronx commercial property operates overnight, on weekends, or continuously, and a contractor who can only work a nine-to-five day is not much use to a facility whose quiet hour is three in the morning.
The borough’s industrial base is unlike anything else in the city. Hunts Point is one of the largest food distribution centres in the world, and the produce market there is undergoing a redevelopment reported at roughly four hundred and five million dollars with construction anticipated to begin in late 2026. Around it sits the Hunts Point Industrial Business Zone, and the former Spofford site is being redeveloped as The Peninsula with some seven hundred and forty homes alongside around thirty thousand square feet of light industrial space. That is a concentration of food, freight and logistics property that no other borough carries.
Cabling it is a different technical problem from cabling an office. Refrigerated rooms and freezer space put cable into permanent cold. Wash-down areas mean water, pressure and cleaning chemicals against anything mounted at low level. Loading docks swing between outside and inside temperature all day, which drives condensation. Forklift traffic decides mounting heights. And the operation does not stop for you, so the work gets staged around production rather than the other way round.
The other Bronx is residential and commercial at real density. The Grand Concourse and the surrounding pre-war apartment stock, the Fordham Road retail corridor, Bruckner Boulevard and the Bruckner Expressway service roads through Port Morris, East 138th Street and Willis Avenue in Mott Haven, Westchester Avenue running east, White Plains Road, Southern Boulevard, and Riverdale Avenue and Broadway to the north. Those jobs are conventional — entry and intercom wiring, suite fit-outs, retail, medical offices — but the buildings are old, the risers were never designed for data, and the space is occupied while you work.
Abstract Enterprises Security Systems is a licensed low voltage contractor in the Bronx and a structured cabling contractor across NYC, under NYS licence #12000287431. Every proposal follows a free on-site survey.
No monthly fees and a three-year warranty on equipment we install.

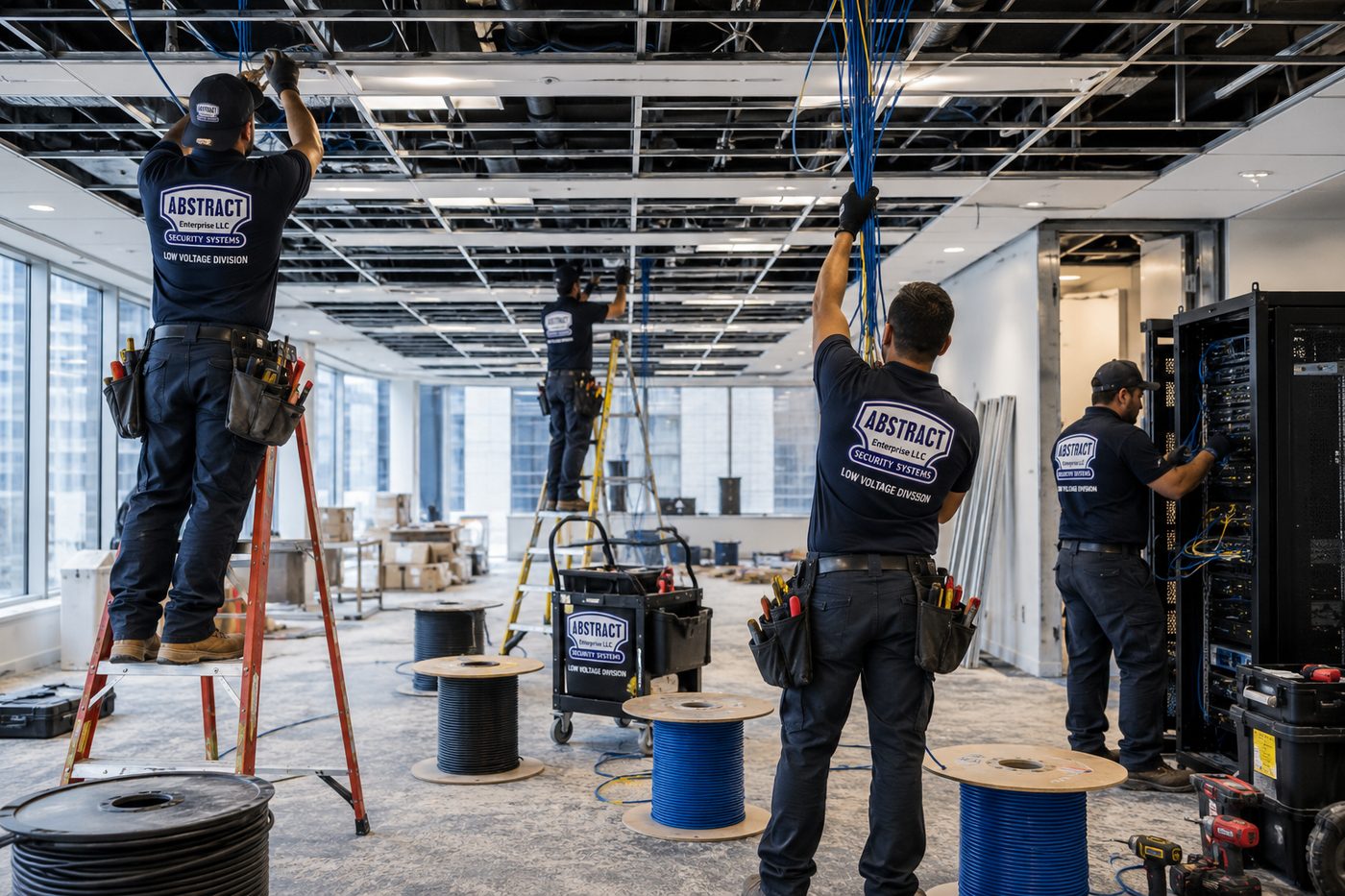

A full crew pulling and racking in one mobilisation on a Bronx job.
WHAT WE INSTALL
Commercial Low Voltage in the Bronx: Systems We Cable
Each of these gets scoped against the same two questions on a Bronx job: what environment does the cable have to live in, and when is the facility actually available.
Voice and Data Cabling
Network cabling in the Bronx from workstation to closet — Cat6 and Cat6A, terminated on a patch panel, wiremapped and labelled at both ends. Office network cabling in the Bronx and commercial data cabling share the same plant. Cat6 installation in the Bronx covers most office, retail and suite work.
Cold Storage and Refrigerated Areas
Cable specified for permanent low temperature, with terminations kept out of the cold where possible and transitions handled so condensation does not collect inside an enclosure.
Wash-Down and Food-Handling Areas
Sealed enclosures, appropriate ratings and mounting heights chosen for water, pressure and cleaning chemicals rather than for convenience.
Camera Cabling
Home runs from each position back to the recorder or PoE switch, with distance and switch power budget confirmed first. Security camera installation in the Bronx is handled by the same crew.

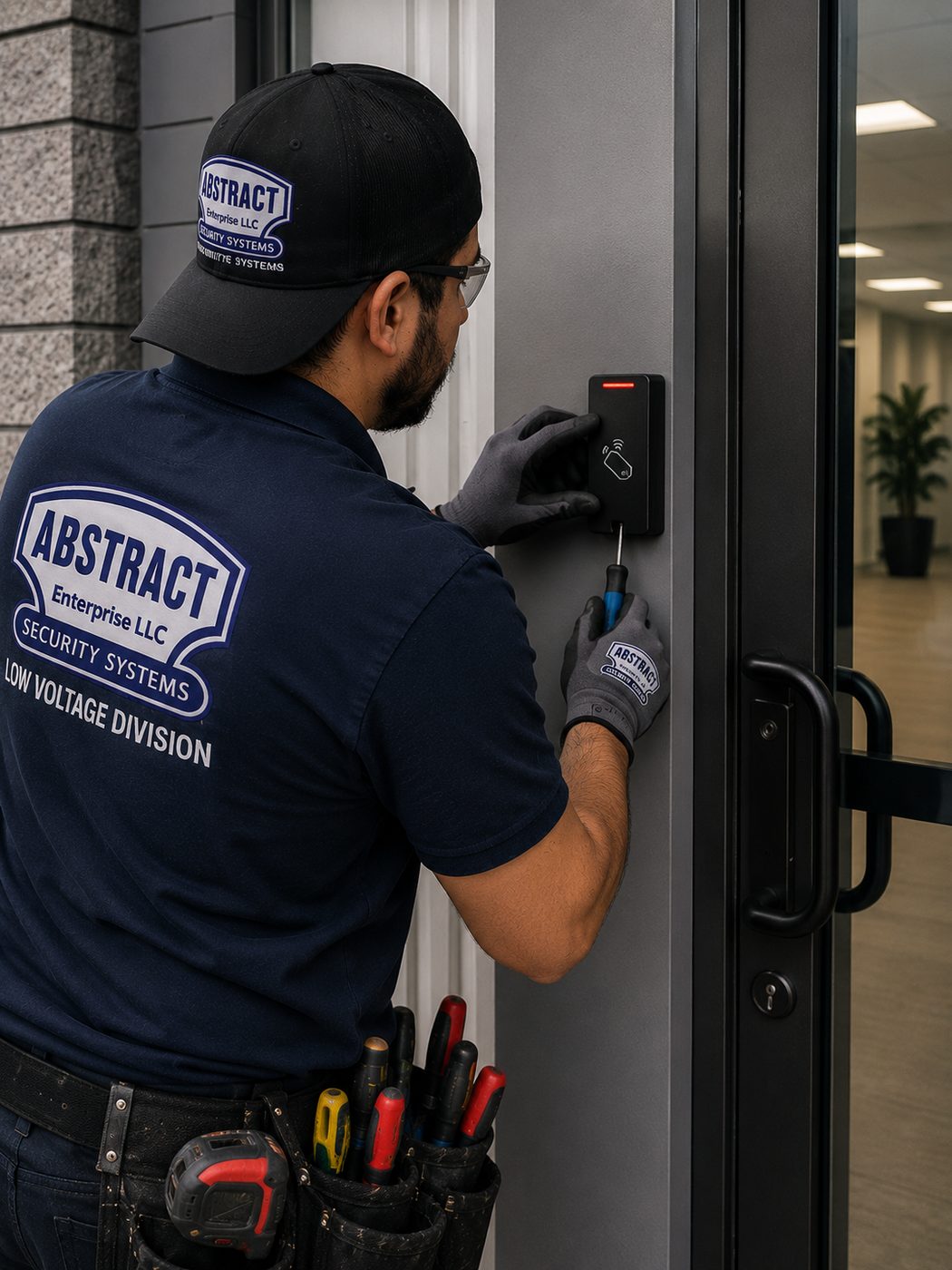

Access Control Door Wiring
Access control installation in the Bronx shares the data plant’s pathway: reader-to-controller runs, lock power home runs, request-to-exit and door position wiring pulled as one door bundle.

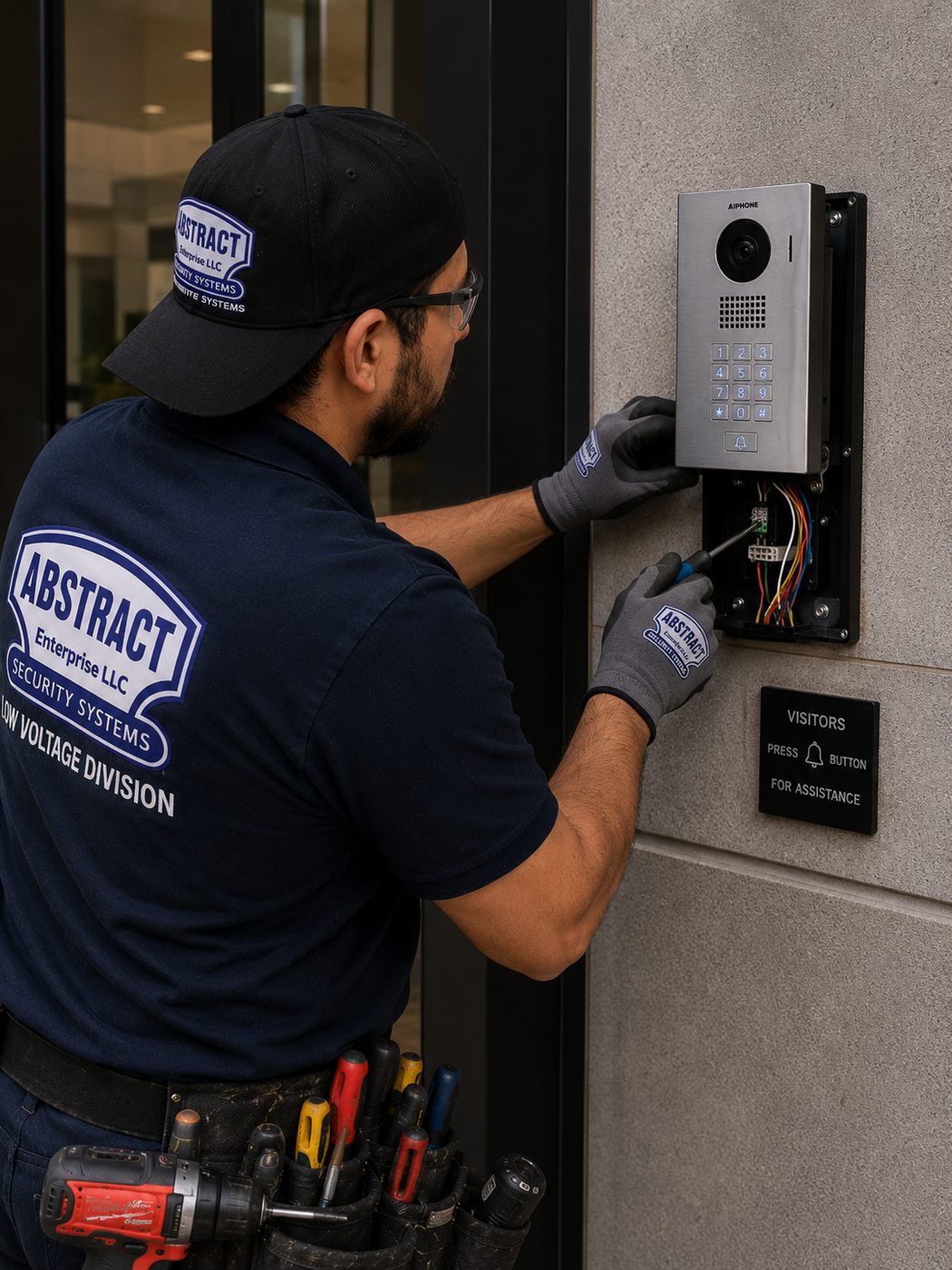

Intercom and Entry Wiring
Vestibule and lobby entry wiring plus riser runs, which in this borough usually means a pre-war building with no pathway designed for it. See intercom installation in the Bronx.
Dock, Gate and Yard Cabling
Runs out to loading positions, gates and yard equipment, on cable rated to leave the building and survive what happens outside it.
Fiber Between Buildings
Fiber optic cabling in the Bronx is frequently horizontal — backbone across a site between separate structures, which is the normal condition on an industrial parcel.
Server Rooms, Racks and Closets
Server room cabling in the Bronx starts with the rack: two-post and wall-mount builds, patch panel and switch mounting, management, UPS, grounding, and re-dress of rooms that grew without a plan.
Low voltage security systems in the Bronx share the same pathway as the data plant, so one company can handle cabling, cameras and access control on a single mobilization.
Supported pathway mounted clear of vehicle traffic and vibration.
BUILDING SPECIALISTS
Cabling for the Way Bronx Facilities Are Actually Built
Food distribution and cold chain
The category that makes this borough different. Around Food Center Drive, Halleck Street and Ryawa Avenue on the Hunts Point peninsula: refrigerated rooms, freezer space, wash-down areas and loading docks that swing between outside and inside temperature all day. Cable has to be rated for where it lives rather than where it starts, terminations are kept out of the cold where the design allows, and transitions between temperature zones are handled deliberately so condensation does not end up inside an enclosure. Mounting heights are set by forklift traffic. The work is staged around production because the operation does not stop.
Warehouse and light manufacturing
High-bay cabling worked from a lift, tray pathway rather than hooks, and jacket ratings chosen for dust, temperature swing and vehicle traffic. Racking and plant move, so positions are chosen against structure rather than against the current floor layout, and anything that genuinely depends on something staying put gets said out loud at survey.
Pre-war multifamily along the Grand Concourse
Structured cabling on the Grand Concourse means solid masonry, plaster over lath, risers that were never designed to carry data, and residents at home while you work. Getting from a basement demarc to an upper floor becomes a question of where a sleeve is permitted and what it is allowed to look like, and the answer is a board or management conversation before it is a technical one.
Retail corridors
Network cabling on Fordham Road is storefront and small-suite work in one of the busiest shopping corridors in the city. Point-of-sale reliability first, back-of-house coverage second, and everything sequenced around trading hours so the unit stays open.
Mott Haven and Port Morris
A low voltage contractor in Mott Haven and Port Morris works across a mix that is still changing — older industrial shells, newer residential, studios and small commercial tenancies sharing buildings. Mixed tenancy means shared closets and shared risers, so labelling matters more than the drop count suggests.
Riverdale, institutional and medical
Data cabling in Riverdale covers professional suites, medical offices and a residential stock distinct from the rest of the borough. Alongside it sits the Bronx’s substantial institutional base — schools, healthcare, community and municipal facilities — where documentation standards and access procedures are set by the institution rather than by a landlord.

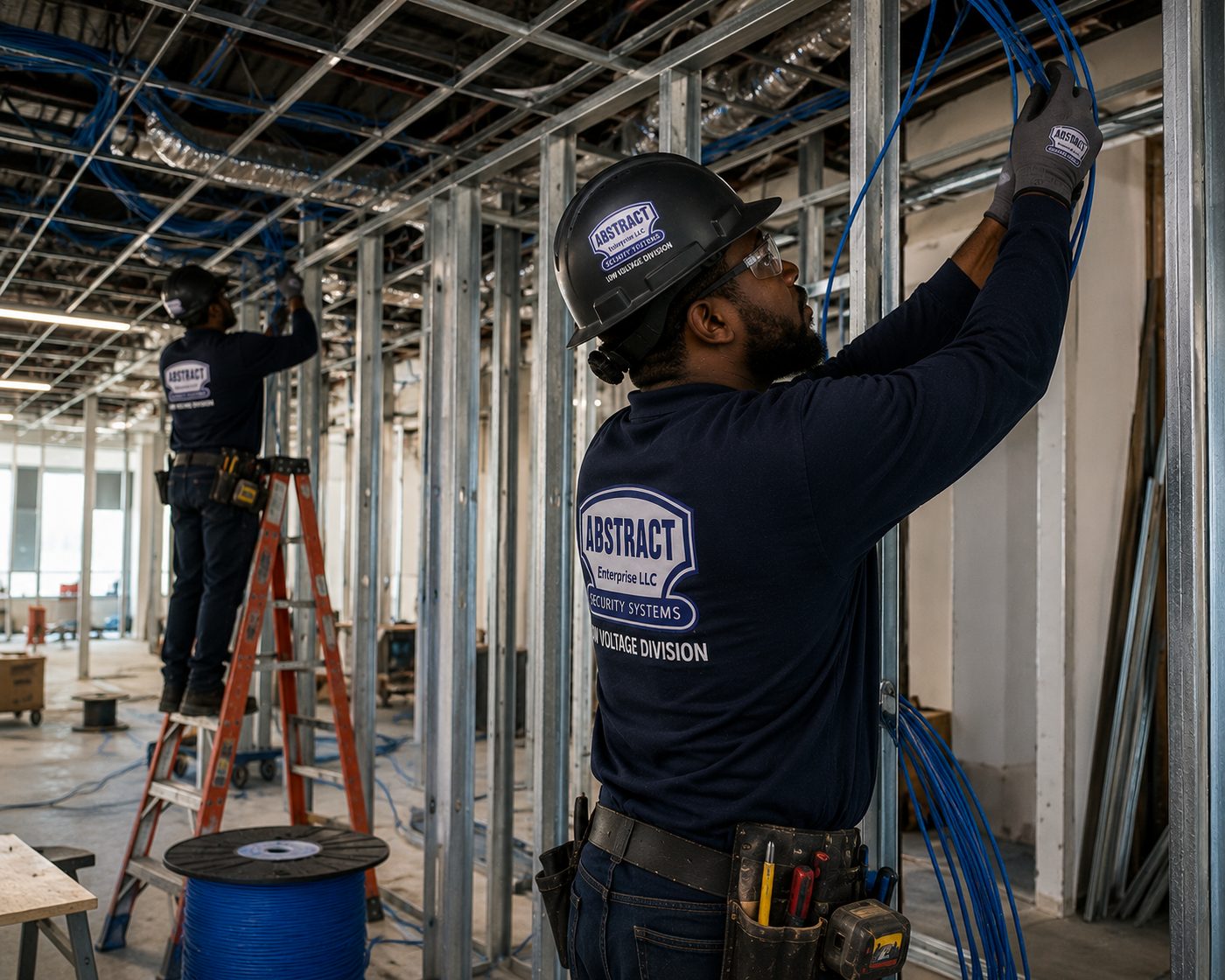

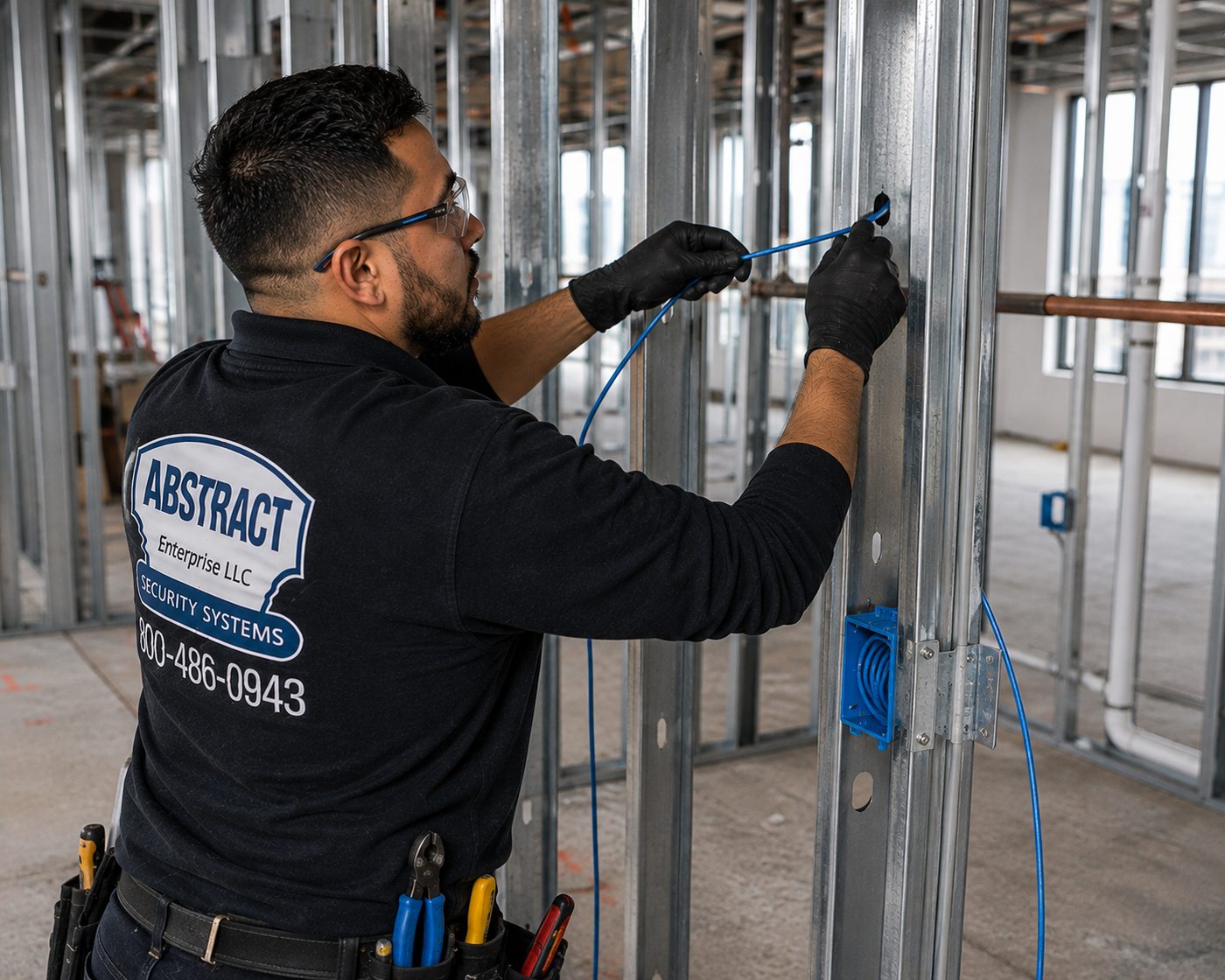

Cable pulled while the wall is still open, the cheapest cable on any Bronx job.
EQUIPMENT
Cable, Racks and Hardware We Standardize On
Solid copper only. Copper-clad aluminium marked as Cat6 runs hot under power, fails certification and is the reason plenty of systems start dropping devices in year two. We do not install it at any price on any job, and in a refrigerated or wash-down environment it is a worse idea still.
Cat6 Horizontal Cable
The working default for Bronx office, retail and suite work. Dependable for gigabit and shorter 10G runs.
Cat6A Horizontal Cable
Cat6A installation carries 10 Gigabit to the full hundred-metre channel and handles higher PoE classes with less heat in a dense bundle. On a large industrial floor the extra headroom is usually worth having.
Low-Temperature Rated Cable
For anything living in refrigerated or freezer space. Standard jacket stiffens and can crack at sustained low temperature, which turns an installation problem into a service problem two winters later.
Sealed and Rated Enclosures
Where wash-down, moisture or dust is a factor, the enclosure rating gets chosen for the actual exposure rather than defaulting to whatever is on the van.
Outdoor and Direct-Burial Cable
For dock, gate and yard runs, and anything crossing a site between structures. Jacket rating and conduit decide whether the run is healthy in five years.
Multimode and Single-Mode Fiber
Backbone between buildings on a site and any run past copper distance. Fiber carries no metal, which avoids the surge and ground-potential trouble long copper suffers between separately fed structures.
Tray, Strut and Industrial Pathway
Tray and strut across open industrial ceilings, supported to survive vibration and the trades who come after us, with heights set clear of vehicle traffic.
Patch Panels, Racks and Management
Wall-mount frames for single-closet tenancies, two-post racks where a facility carries a real MDF, with panels, keystones, plates, management, UPS and rack grounding specified per closet.
Certification Testing
Wiremap and length on every drop as standard, with full TIA-568 certification on a Fluke DSX-class analyser wherever a report is required.

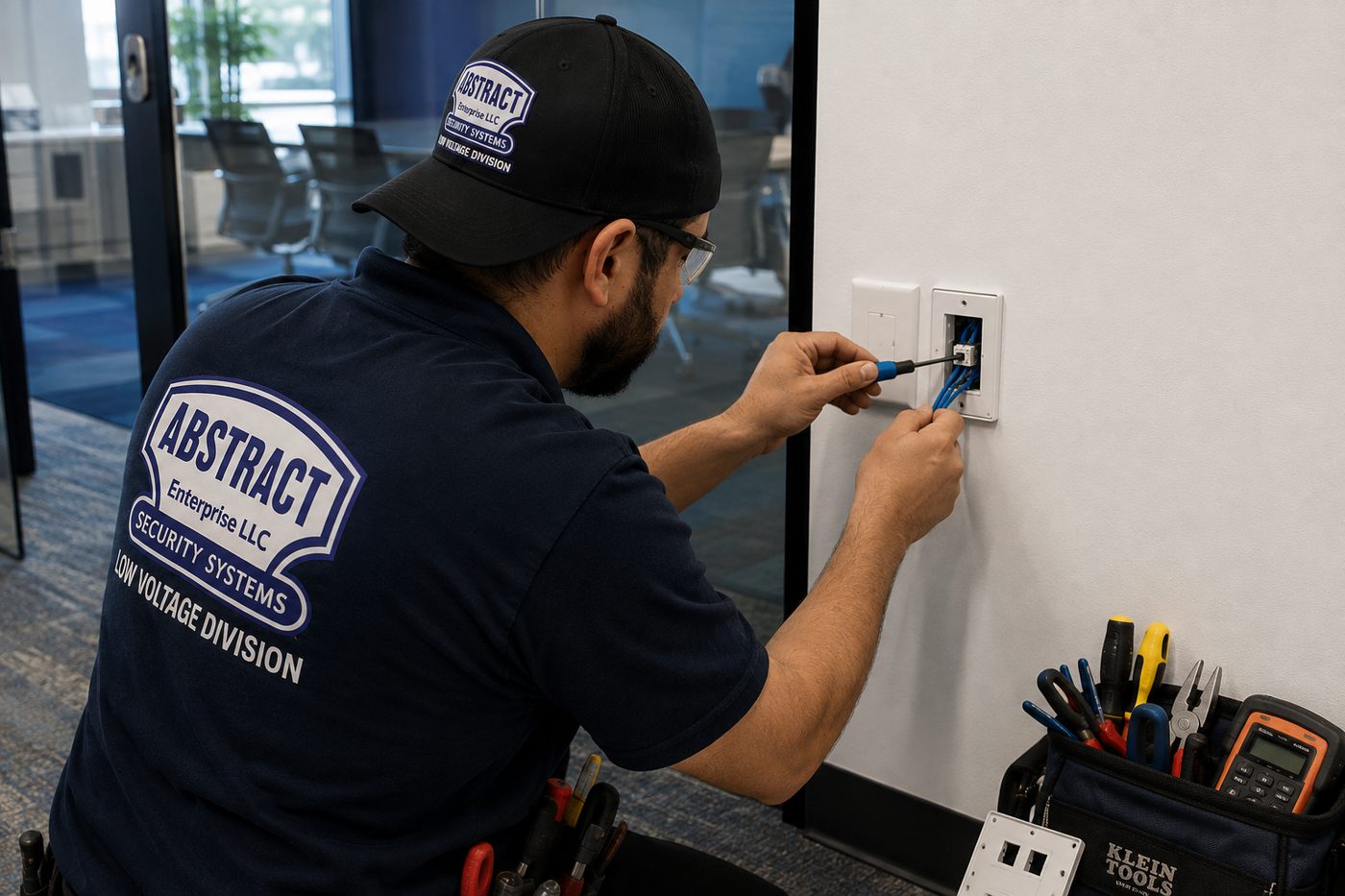

The user end of a drop, terminated and plated.
TERMINOLOGY
Bronx Low Voltage Terms, Translated
Most disagreements over a cabling quote come down to two parties using the same words differently. This is the vocabulary you need to read a proposal in this borough, including a few terms that only matter in a facility.
Drop. One run from closet to outlet, terminated both ends. Cabling is priced per drop, not per foot.
Home run. One cable from one device back to the closet with nothing shared along the way.
Temperature zone transition. Any point where cable crosses between a refrigerated space and an ambient one. It is where condensation forms, and it is handled deliberately or it becomes a fault later.
Enclosure rating. What a box is actually sealed against — dust, splashing, directed water, wash-down. Choosing it by habit rather than by exposure is a common and expensive shortcut.
Mounting height. On a facility floor this is set by forklifts and pallet jacks, not by what is comfortable to reach.
MDF and IDF. Main distribution frame where service enters; intermediate frames serving other buildings or areas of a site.
The hundred-metre channel. The end-to-end distance limit on a copper run, patch cords included. On a large single-storey facility it decides how many closets the site needs.
Patch panel. Where permanent cable ends and short patch cords take over, so switches change without anybody re-terminating a run.
Punch-down. Seating each conductor into its contact. Done carelessly the drop works and never certifies clean.
Plenum (CMP) versus riser (CMR). Which jacket a run needs depends on the space it crosses. Downgrading is one of the few shortcuts here that creates real liability.
Wiremap versus certification. A wiremap confirms every conductor is on the right pin. Certification measures length, crosstalk, return loss and delay against TIA-568 and prints a result per drop.
As-built. The closeout drawing and port map, which on a facility running three shifts is the difference between a ten-minute fault and a three-hour one.

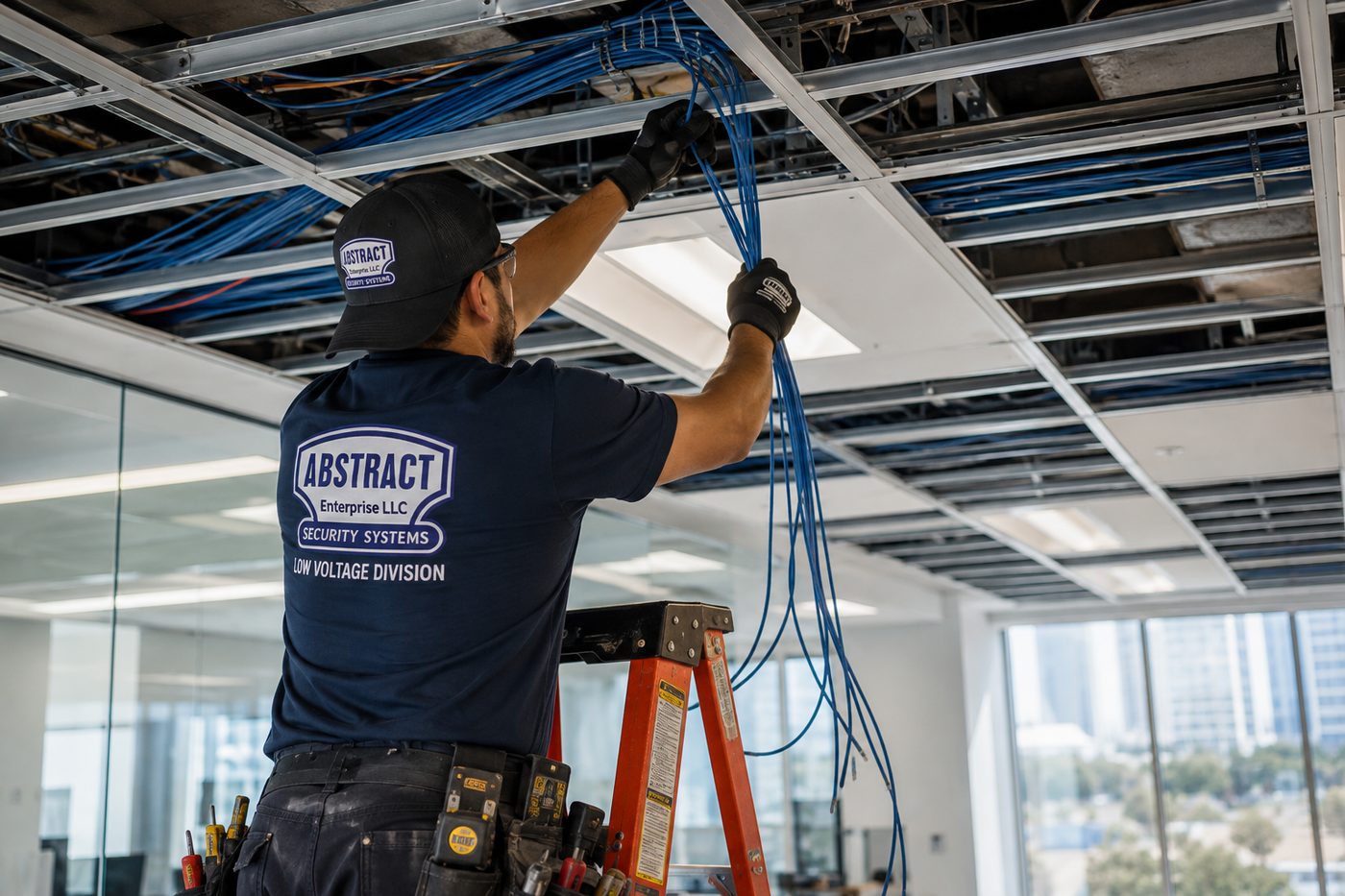

A bundle brought down at a workstation position during fit-out.
COMMERCIAL LOW VOLTAGE
Where We Work Across the Bronx
Hunts Point and the Industrial Business Zone
Structured cabling in Hunts Point is the borough’s defining industrial work. It is one of the largest food distribution centres in the world, and the produce market there is undergoing a redevelopment reported at roughly four hundred and five million dollars, with construction anticipated to begin in late 2026. The surrounding Industrial Business Zone carries freight, cold storage, processing and logistics operations, and the former Spofford site is being redeveloped as The Peninsula with around seven hundred and forty homes and roughly thirty thousand square feet of light industrial space.
For a low voltage contractor in Hunts Point that means refrigerated and wash-down environments, dock and yard runs, high-bay tray, multi-building sites needing backbone, and work windows set by production rather than by an office day.
Mott Haven and Port Morris
Data cabling in Mott Haven and Port Morris means a mix still in transition — older industrial shells alongside newer residential, studios, small commercial tenancies and food production sharing single buildings. A low voltage contractor in the South Bronx spends most of their time in exactly this kind of building, and structured cabling in the South Bronx usually means working around tenants who are already in occupation. Shared closets and shared risers are the norm, which makes labelling and documentation worth more than the drop count suggests.
The Grand Concourse and pre-war multifamily
Structured cabling on the Grand Concourse and through the surrounding apartment stock means masonry, plaster, risers never designed for data, and occupied buildings. Entry and intercom wiring is constant work here, and data cabling on the Grand Concourse is usually constrained by permission and pathway rather than by anything technical.
Fordham Road and the retail corridors
A low voltage contractor on Fordham Road works one of the busiest retail corridors in the city, plus the professional and medical suites stacked above street level. Network cabling on Fordham Road is mostly storefront and small-suite work. Storefront work along Fordham Road, East Fordham Road and the Grand Concourse junction, sequenced around trading hours with point-of-sale reliability first. Our Bronx office sits on this corridor, which shortens the response on anything urgent.
Riverdale
Network cabling in Riverdale serves professional suites, medical offices, institutional property and a residential stock with its own character, and data cabling here arrives in smaller, tidier jobs than the industrial south of the borough. Smaller jobs, higher expectations on tidiness, and access arrangements that are usually straightforward.
Institutional and municipal property
The Bronx carries a substantial base of schools, healthcare, community and municipal facilities. Documentation standards and access procedures are set by the institution, work happens in recess or off-hours windows, and the closeout package matters as much as the installation.

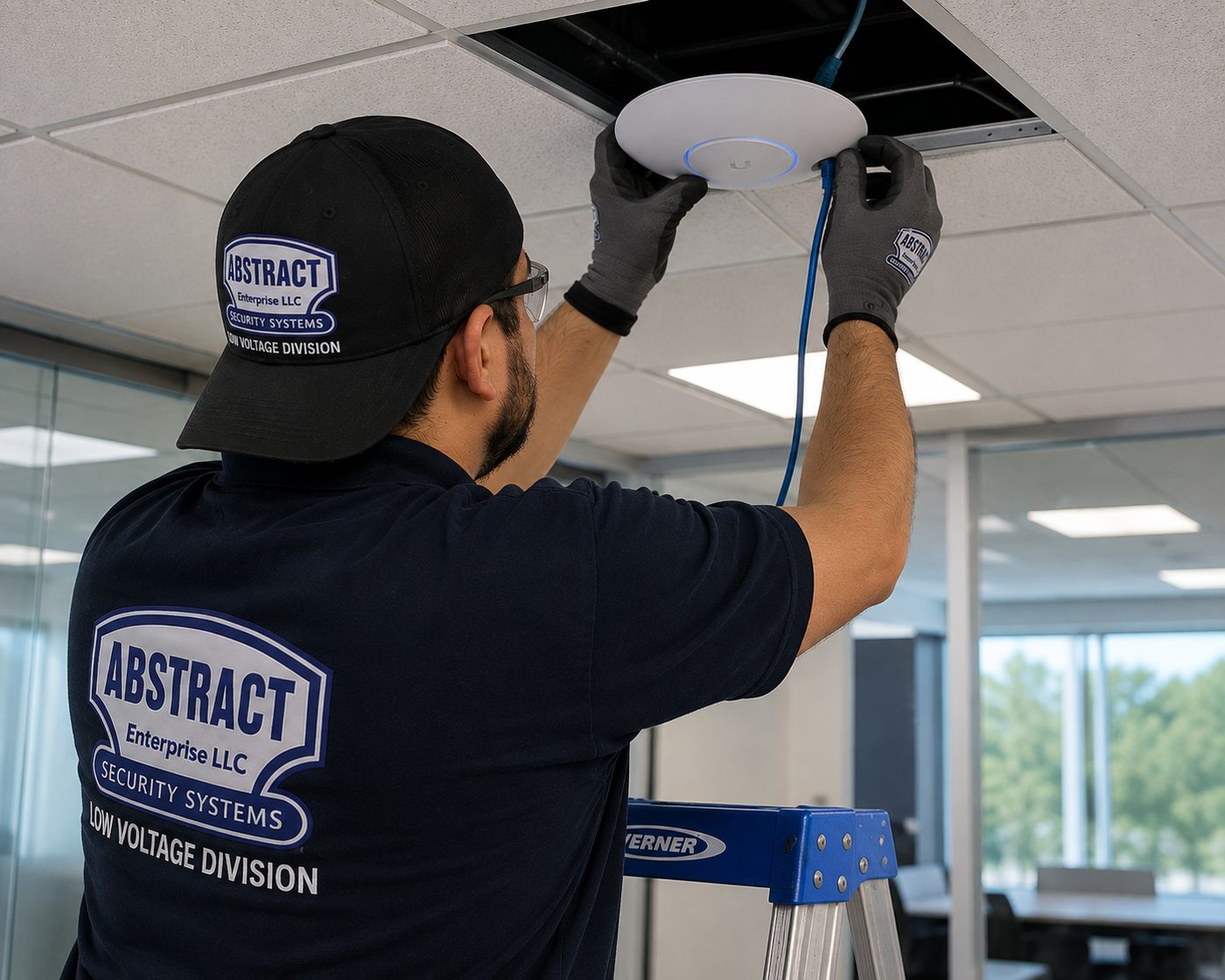

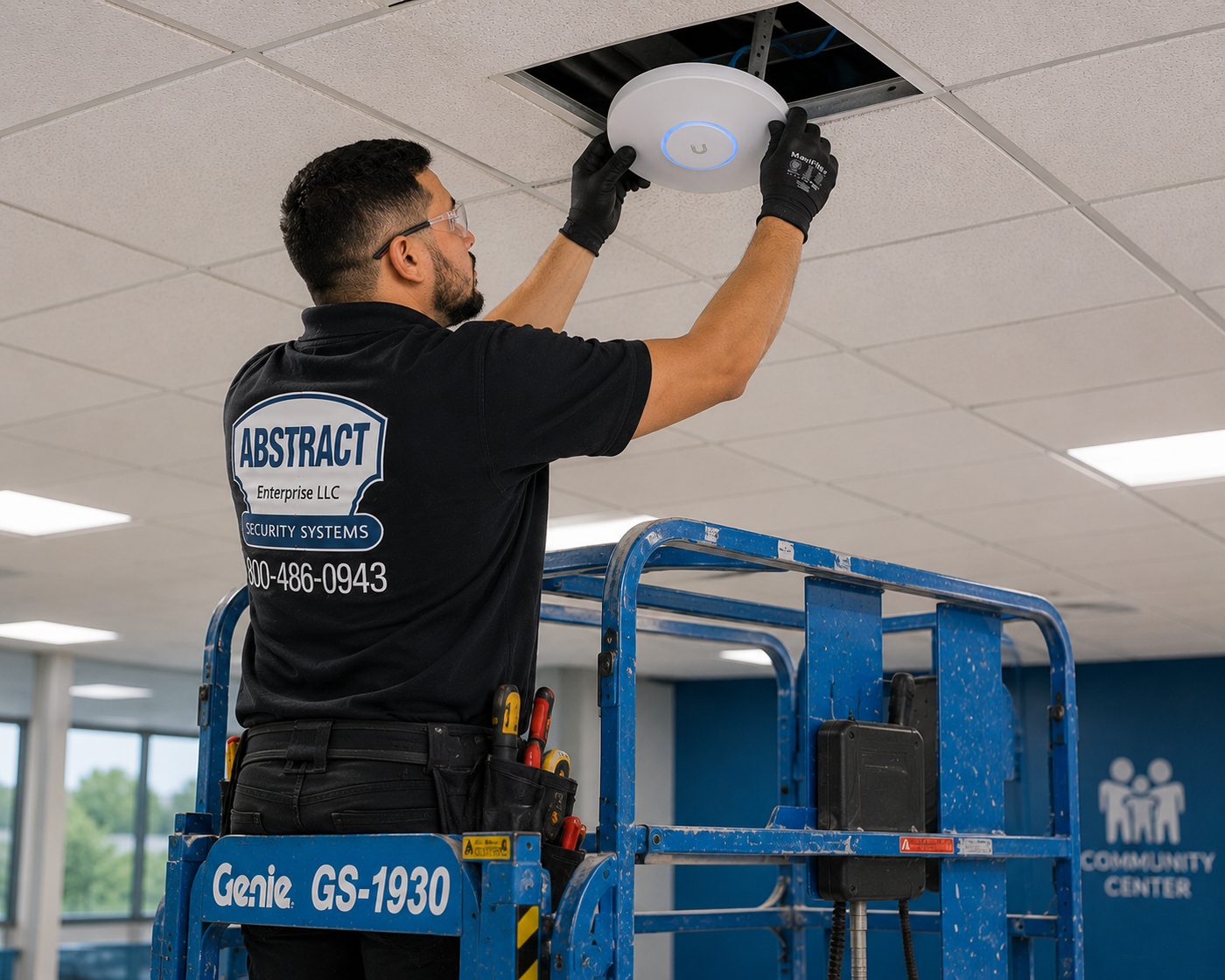

An access point on its own home run, placed for coverage across an open floor.
INDUSTRIES
Who We Cable For in the Bronx
Food Distribution and Cold Storage
Refrigerated space, wash-down areas, docks and yards, worked around production.
Freight and Logistics
High-bay tray, gate and dock runs, multi-building site backbone.
Light Manufacturing
Production floors where cable survives the environment and the rearranging.
Multifamily and Pre-War Apartment Buildings
Riser work, vestibules and entry systems in occupied buildings.
Segregated closets, controlled access to infrastructure, tidy patient-facing spaces.
Schools and Institutions
Off-hours windows, institution-set procedures, documentation that survives inspection.
Municipal and Community Facilities
Procurement-grade documentation and coordination with facilities staff.
General Contractors
Low voltage as a subcontracted trade, with COI, schedule discipline and a closeout package.

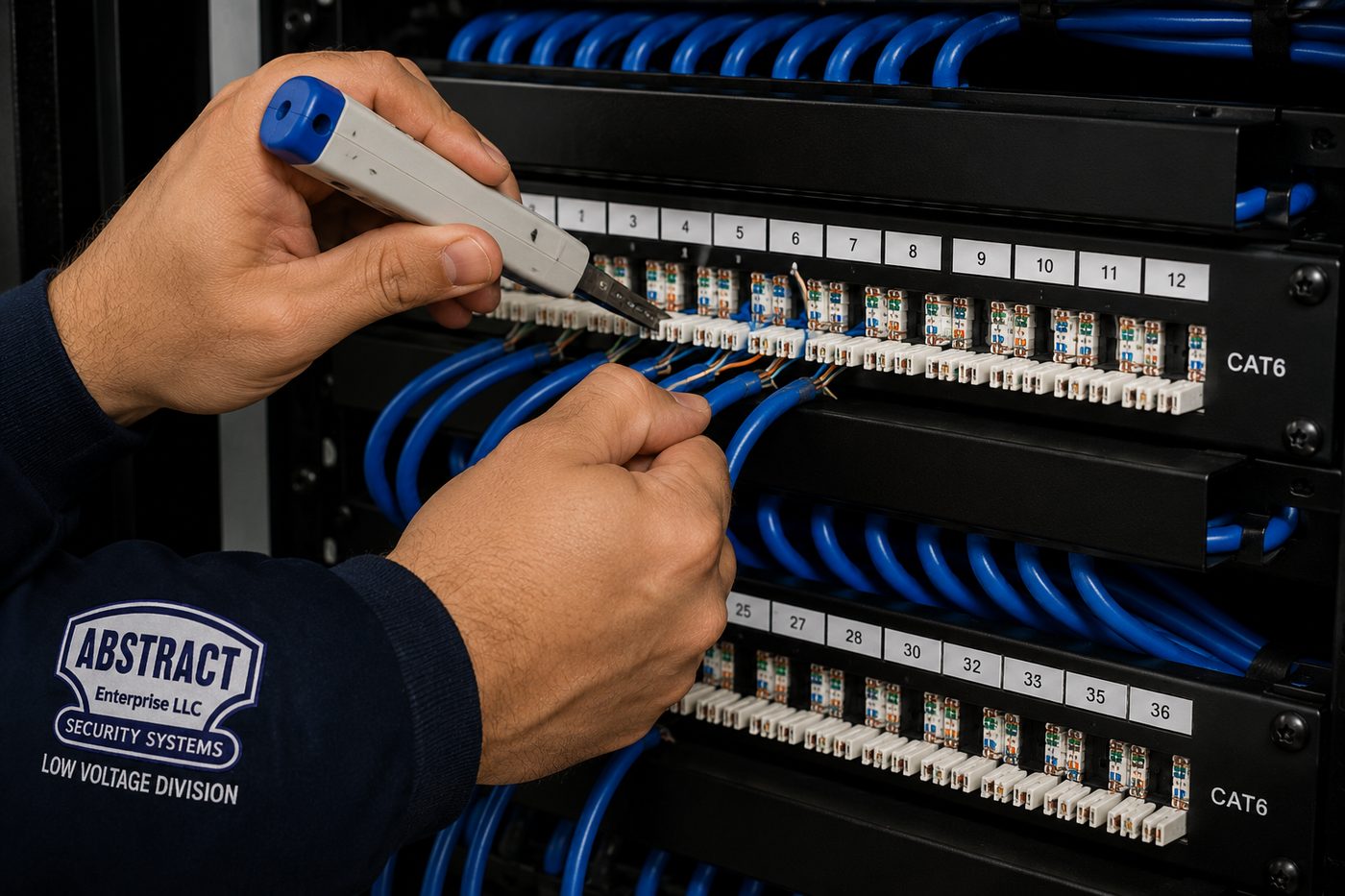

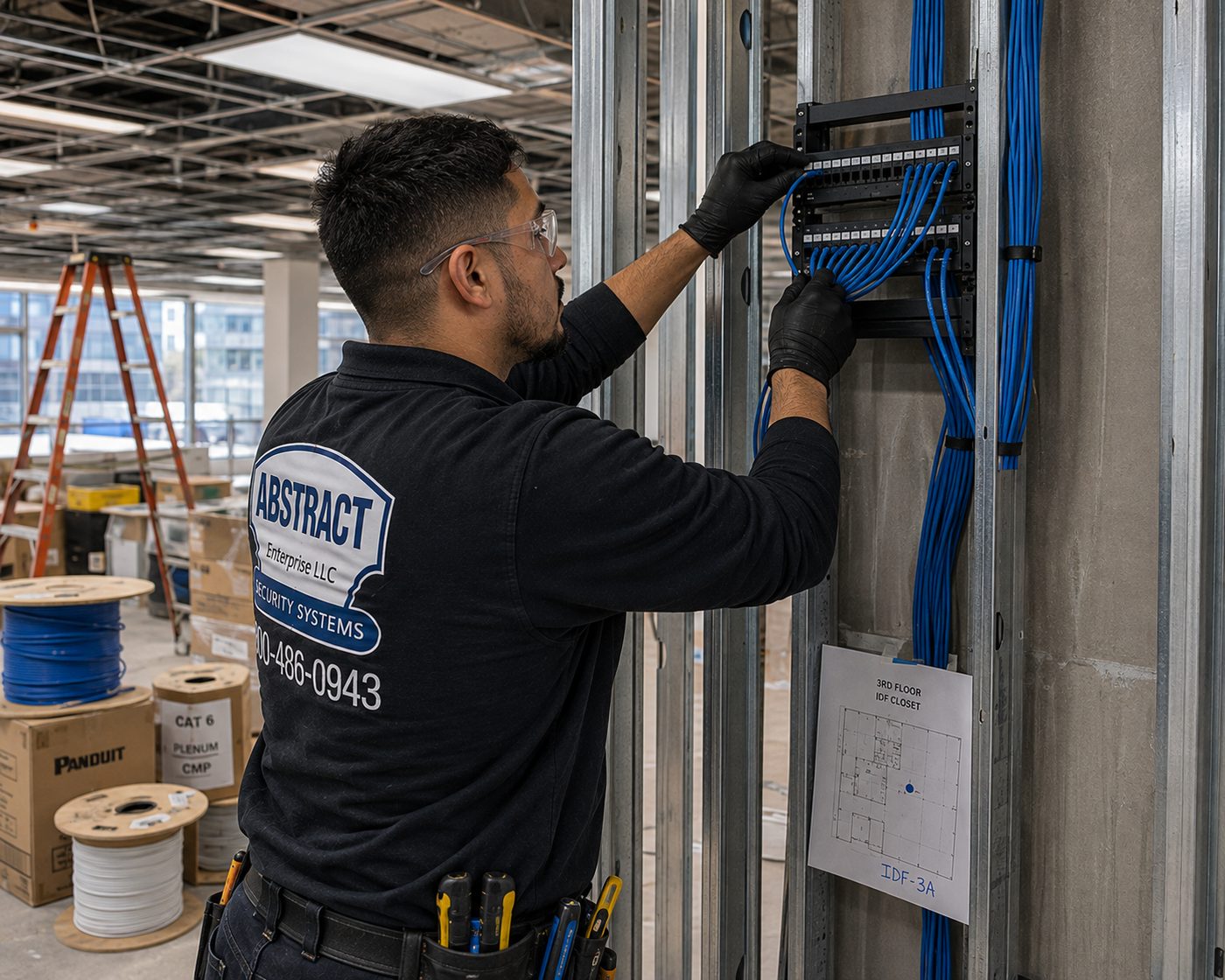

Horizontal cable punched to a numbered panel rather than direct to a switch.
HOW IT WORKS
How a Bronx Low Voltage Project Runs
Free on-site survey. Ceilings, structure, closets, distances and existing pathway, plus the environmental question — which areas are refrigerated, which get washed down, and where vehicles run.
Work-window agreement. When the facility is actually available. On a site running multiple shifts this is settled before anything technical, because it drives the whole programme.
Environment and pathway plan. Cable and enclosure ratings chosen per area, temperature transitions identified, mounting heights set clear of traffic, distances checked against the hundred-metre limit.
Written scope and proposal. Drop count and locations, cable category and rating per space, pathway method, closet and rack scope, testing level, labelling standard, documentation deliverable and a written exclusions list.
Staged rough-in. Work sequenced area by area around production rather than shutting a floor.
Termination. Keystones at the outlet, patch panel punch-down at the closet, rack dressed as it is built.
Testing. Wiremap and length on one hundred percent of drops, with full TIA-568 certification where specified.
Labelling, as-built and closeout. Every cable labelled both ends, drawing and port map handed over, site left clean and operational.
Start and completion timing turns on building conditions, equipment availability, access to the property, permitting where it applies, and how large the project is.

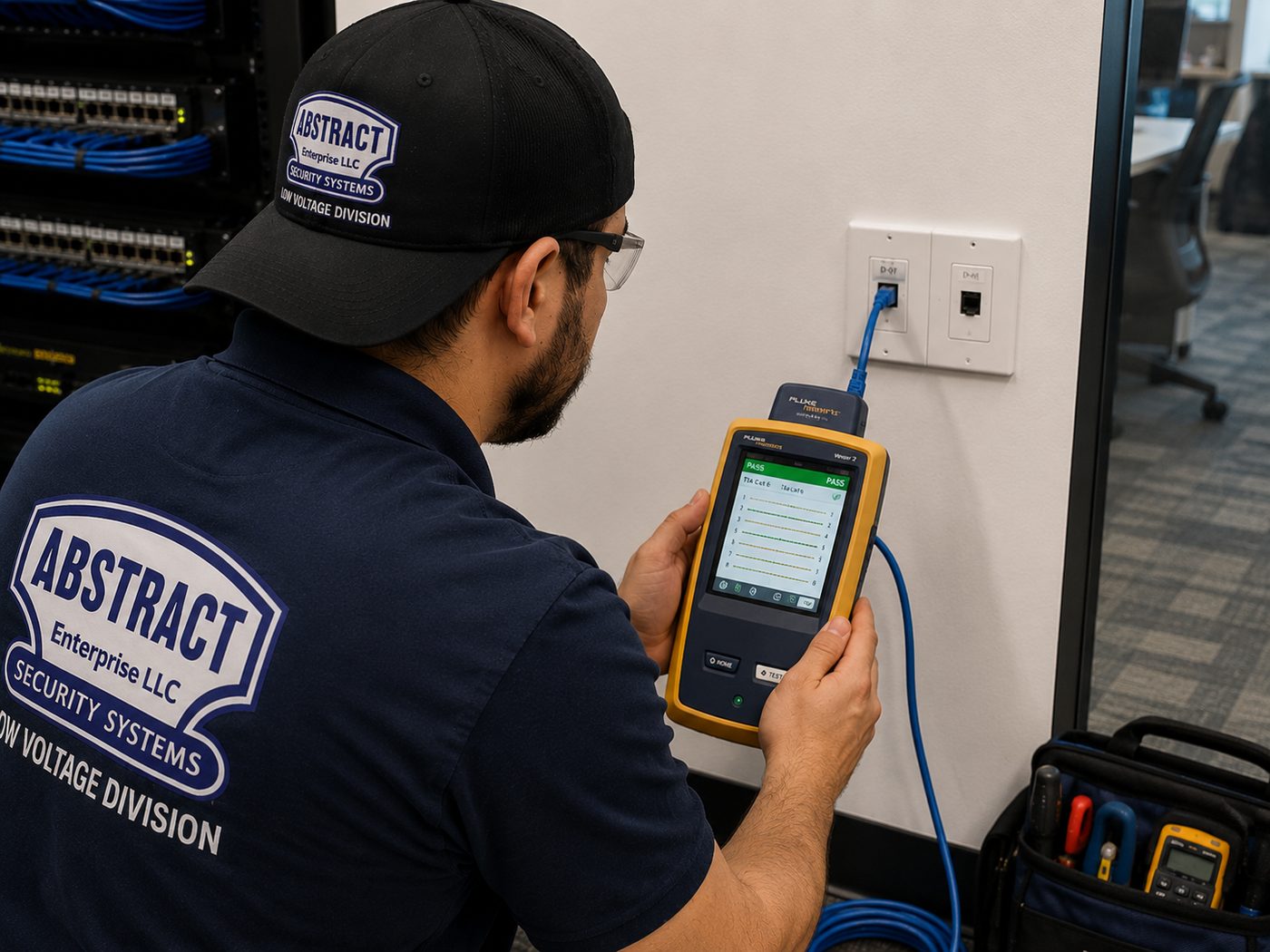

A per-drop certification result, the report an insurer or auditor can ask for.
YOUR QUESTIONS ANSWERED
Low Voltage Installation in the Bronx: Your Questions Answered
Can you run cable inside a walk-in cooler or freezer?
Yes, and it needs cable specified for it rather than whatever is on the van. Standard PVC jacket stiffens at sustained low temperature and can crack, which turns an installation into a service call a couple of winters later. Where the design allows we keep terminations and active equipment outside the cold entirely and bring only the run through, because a jack sitting in a freezer is a fault waiting to happen. The transition point between temperature zones gets handled deliberately — that is where condensation forms, and left alone it collects inside whatever enclosure sits nearest.
What about areas that get washed down?
Enclosure rating gets chosen for the actual exposure rather than by habit, and mounting height gets chosen so equipment is not in the line of a pressure washer. This is the detail most often skipped by a contractor used to office work, and the result is water inside a box that was never rated for it. If an area is cleaned with chemicals as well as water, that goes in the survey notes because it affects material choice.
Our facility runs three shifts. When can you actually work?
Whenever the floor is available, including overnight and weekends, and we settle that before anything technical because it drives the entire programme. Work gets staged area by area rather than shutting a floor. On a distribution operation the quiet hour is often the middle of the night, and pretending otherwise just produces a schedule nobody can keep.
How much does low voltage installation cost in the Bronx?
Structured cabling cost in the Bronx starts from published per-drop rates rather than a range. Cat6 installation cost in the Bronx begins at $175 for a data or voice drop, $250 for Cat6A, with a $500 minimum job. Independent industry guides put commercial Cat6 in a national band of roughly $125 to $400 per drop fully installed and tested, and note that labour rather than cable drives the number. What moves a Bronx figure is environment first — refrigerated and wash-down areas cost more in materials and time — then distance, mounting conditions, and whether the work has to happen outside normal hours.
Why does a cold storage drop cost more than an office drop?
Materials and access, not margin. Low-temperature rated cable and properly rated enclosures cost more than standard components. The mounting is harder, the transitions need handling, and the work often has to happen in a window that is not a normal working day. We itemise those areas separately in the proposal so you can see exactly which drops carry the premium and why, rather than blending it into a single per-drop figure.
Our building is pre-war with no riser. How do you get from the basement to the top floor?
Carefully, and usually with a permission conversation before a technical one. Older Bronx apartment buildings frequently have no vertical pathway designed for structured cabling, so the options are an existing shaft or chase where one exists, a new sleeved penetration where management or the board will permit it, or an exterior route where nothing internal works. Each has a cost and a visual consequence, and we walk the building and show you the options rather than deciding for you.
Do I need a permit for low voltage work in the Bronx?
The low voltage permit question in the Bronx has the same answer as the rest of the city, and for pure cabling it is usually no. Local Law 128 of 2024 took effect on 21 December 2025 alongside the 2025 New York City Electrical Code, adding Administrative Code §28-105.4.7, under which an electrical permit is not required for low-voltage work under 50 volts for signalling, communication, alarm and data transmission circuits — provided the work is performed by a licensed master electrician, a special electrician, or a qualified person as the Electrical Code defines it. Wiring that connects to, forms part of, or sits within a life safety system is carved out entirely. Confirm your specific scope with the Department of Buildings.
Does the DOB low voltage certification belong to the company or a person?
A person. People search for a “DOB low voltage license” expecting a company credential, and that is the wrong model. New York City certifies low voltage installers under Administrative Code §27-3016.1, and the code describes an individual determined competent by the commissioner — over eighteen, of good moral character, with two years of satisfactory experience, subject to a character and fitness investigation. It is separate from a Master Electrician licence and from the New York State security and fire alarm credential, so when a contractor produces paperwork it is worth knowing which of the three you are holding.
Our site has several buildings. Where does the main closet go?
In whichever building makes the backbone shortest and the service entry sensible, which is not always the biggest building or the one with the office in it. Once a site holds more than one structure the job becomes a backbone question first: which building carries the main distribution frame, how fiber gets between structures, whether the route is underground or overhead, and how much spare capacity goes in while the ground is open. Getting that wrong is expensive to undo because the fix is another trench.
Can you cable dock doors, gates and the yard?
Yes, on cable rated to leave the building. Anything running outside needs an appropriate jacket and, in most cases, conduit, and any run crossing open ground should go in with spare capacity because reopening it costs what it cost the first time. Dock positions in particular swing between outside and inside temperature all day, so the same condensation logic applies as in refrigerated space.
Is the cable already in this facility worth keeping?
Frequently, and it is worth checking before anybody orders new material, because pathway is the expensive half of the plant. Certification comes first: carrying an untested run forward is how a new system inherits somebody else’s fault and then absorbs the blame for it. Anything that certifies clean and terminates where you need it stays, and the proposal names which runs those are.
Should we use our electrician or a cabling contractor?
Low voltage vs electrician in the Bronx comes up on almost every industrial enquiry. An electrician is the right trade for line voltage and many will pull Cat6 competently. The question is whether they carry a certification analyser, work to TIA-568 rather than to power-wiring habit, and hand over a labelled port map and as-built. In a facility with environmental zones there is a second question: whether they will specify cable and enclosures for cold and wash-down areas or fit the same components everywhere.
If you are comparing several structured cabling companies rather than choosing a trade, ask any data cabling installers you shortlist for the same nine lines — drop count and locations, cable category and rating per space, pathway method and who firestops, closet and rack scope, testing level, labelling standard, documentation deliverable, access assumptions and a written exclusions list. Searching for a low voltage contractor near me in the Bronx, or for the best low voltage company, returns whoever ranks or pays rather than whoever suits your facility.
Devices keep dropping on our warehouse floor. Is it the cabling?
Sometimes, but check three other things first. A switch running out of total PoE budget once every port is populated makes equipment restart in rotation. A run slightly over distance works at idle and fails under load. And on a facility floor, physical damage from vehicle traffic or vibration is far more common than in an office. Certification testing plus a look at the switch power statistics normally identifies which of the four it is inside an hour.

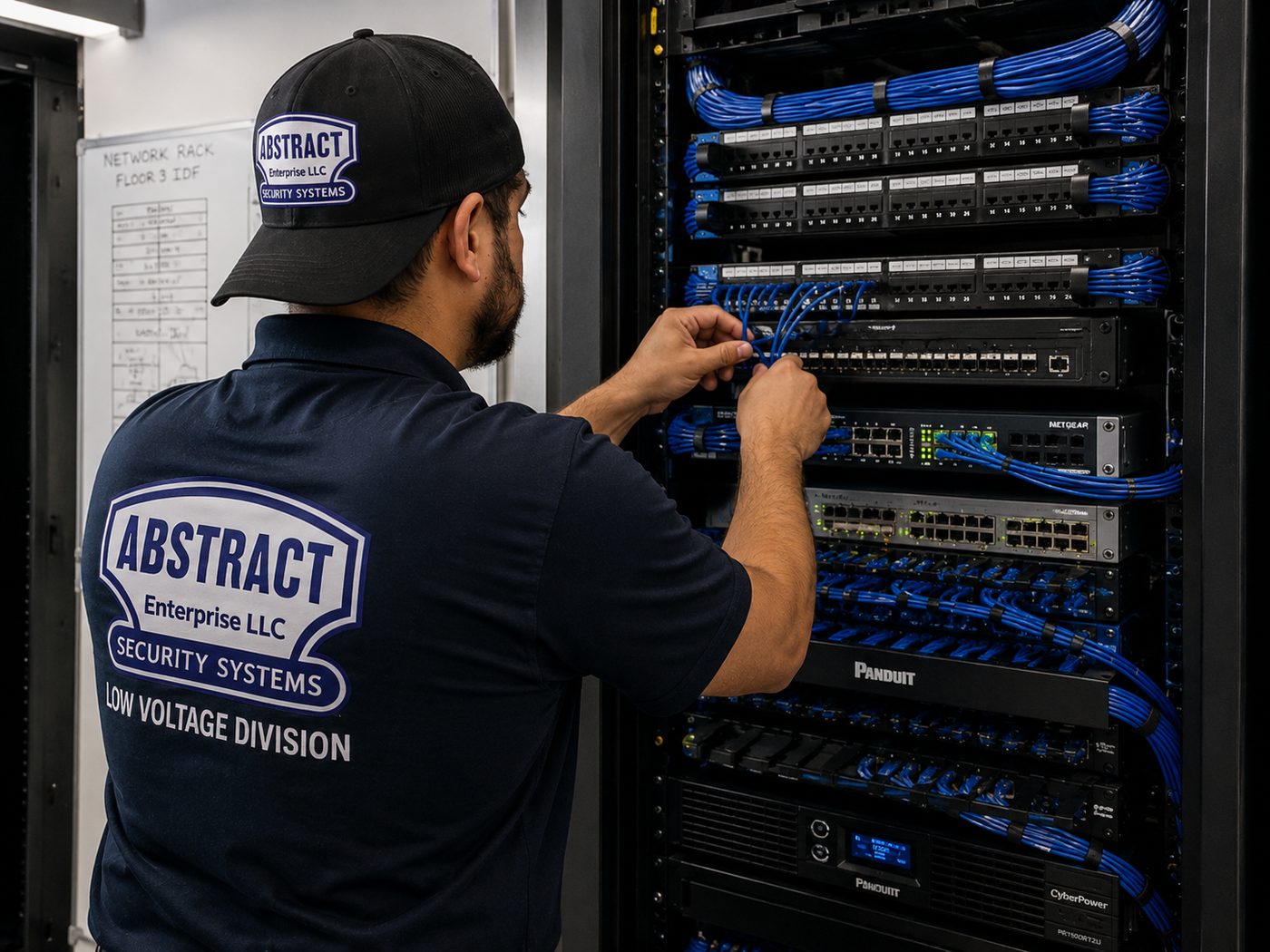

Patching in a facility IDF, with the rack map on the wall beside it.
AI OVERVIEW REALITY CHECK
What AI Answers Get Wrong About Bronx Low Voltage
Every generated answer describes an office
Ask an AI answer engine about low voltage installation in the Bronx and you get the standard description: structured cabling, cameras, intercoms, access control, a note on permits, a national price range, and a closing line about offices, commercial buildings and multi-tenant properties.
Now consider what a large share of Bronx commercial property actually is. Hunts Point is one of the largest food distribution centres in the world, surrounded by an Industrial Business Zone full of cold storage, processing and freight operations. That is refrigerated space, wash-down areas, loading docks, yards and forklift traffic.
An office answer is not wrong about offices. It simply has nothing to say about the environment that defines industrial work in this borough, and no price range assembled from office fit-outs will describe a drop that has to live inside a freezer.
Cable rated for cold is not mentioned anywhere
Standard cable jacket stiffens at sustained low temperature and can crack. A drop installed inside refrigerated space with ordinary components works perfectly on handover and becomes a fault a couple of winters later, at which point nobody connects the failure to the specification.
The same applies to enclosures in wash-down areas. A box rated for a dry office wall does not survive being hit with a pressure washer several times a week, and the water that gets inside does not announce itself until something stops working.
Neither appears in any generated summary, because both are consequences of environment rather than of technique. They are also the two most common reasons we get called to a Bronx facility to fix somebody else’s installation.
Temperature transitions, and where condensation actually goes
Any point where cable crosses between refrigerated and ambient space produces condensation. Handled deliberately it is a non-issue. Ignored, moisture collects in whichever enclosure sits nearest the transition and works on the terminations from the inside.
This is not exotic knowledge in the food and cold-chain trade, and it is completely absent from every general answer about low-voltage installation. That absence is a fair proxy for whether an answer was written with facilities in mind at all.
The practical version for an owner: ask any bidder how they intend to handle transitions between temperature zones. A contractor who has done this work will answer immediately. One who has not will treat it as an odd question.
The work window is priced into a facility job and invisible in a range
A distribution operation running multiple shifts has a narrow window when a given area is available, and it is frequently overnight. That is not an inconvenience to be absorbed — it is a real cost and a real scheduling constraint, and it belongs in the proposal.
Every published per-drop range assumes normal working hours in an accessible space. Neither assumption holds on a working facility floor, which is why a number quoted without asking when you can actually work is not a number you can plan against.
We settle the work window before the technical scope, because on a site running three shifts the programme follows the window rather than the other way round.
Nothing about getting up a pre-war building
The non-industrial half of this borough is dense pre-war multifamily, much of it along the Grand Concourse. Those buildings have masonry, plaster over lath, and no riser designed to carry data.
Getting from a basement demarc to an upper floor is therefore a question of what pathway exists, what a new penetration would require, and who has to approve it. It is a permission problem as much as a technical one, and it is the single most common reason a residential quote in this borough takes longer to produce than the customer expects.
No generated answer raises it, because a summary written about offices has no concept of a building where the hardest part of the job is being allowed to make a hole.
The permit answer, and the condition that gets dropped
The blanket statement you will read everywhere is that low-voltage work under fifty volts needs no permit in New York City. It is broadly accurate and it omits the qualifier the whole thing rests on.
The exemption arrived with Local Law 128 of 2024, effective 21 December 2025 alongside the 2025 New York City Electrical Code. Administrative Code §28-105.4.7 grants it, and the grant is conditional — the work has to be performed by a licensed master electrician, a special electrician, or a qualified person as the Electrical Code defines that term. Anything wired into a life safety system falls outside the exemption entirely, with no equivalent relief.
They also consistently blur the certification. The city’s low voltage installer certification under §27-3016.1 is issued to an individual, and phrasing that says a contractor should hold it reads as a company credential to anybody not already familiar with the distinction.
What an honest Bronx proposal contains
Nine lines, plus two this borough adds. Drop count and locations. Cable category and jacket rating for each space. Pathway method and who firestops. Closet and rack scope. Testing level, stated as wiremap or full certification. Labelling standard. Documentation deliverable. Access assumptions. A written exclusions list. Then: which areas are treated as refrigerated or wash-down and what components those get, and what work window the price assumes.
Drop two or three of those and the number stops being comparable to anything. The contractor who looks expensive is often the only one who priced the cold-rated cable, the sealed enclosures and the overnight window.
Send that list to every bidder, ourselves among them. Anyone unwilling to put those lines on paper before the first shift has already told you how the last one will go.
Facility work? We schedule around your operation, not ours.

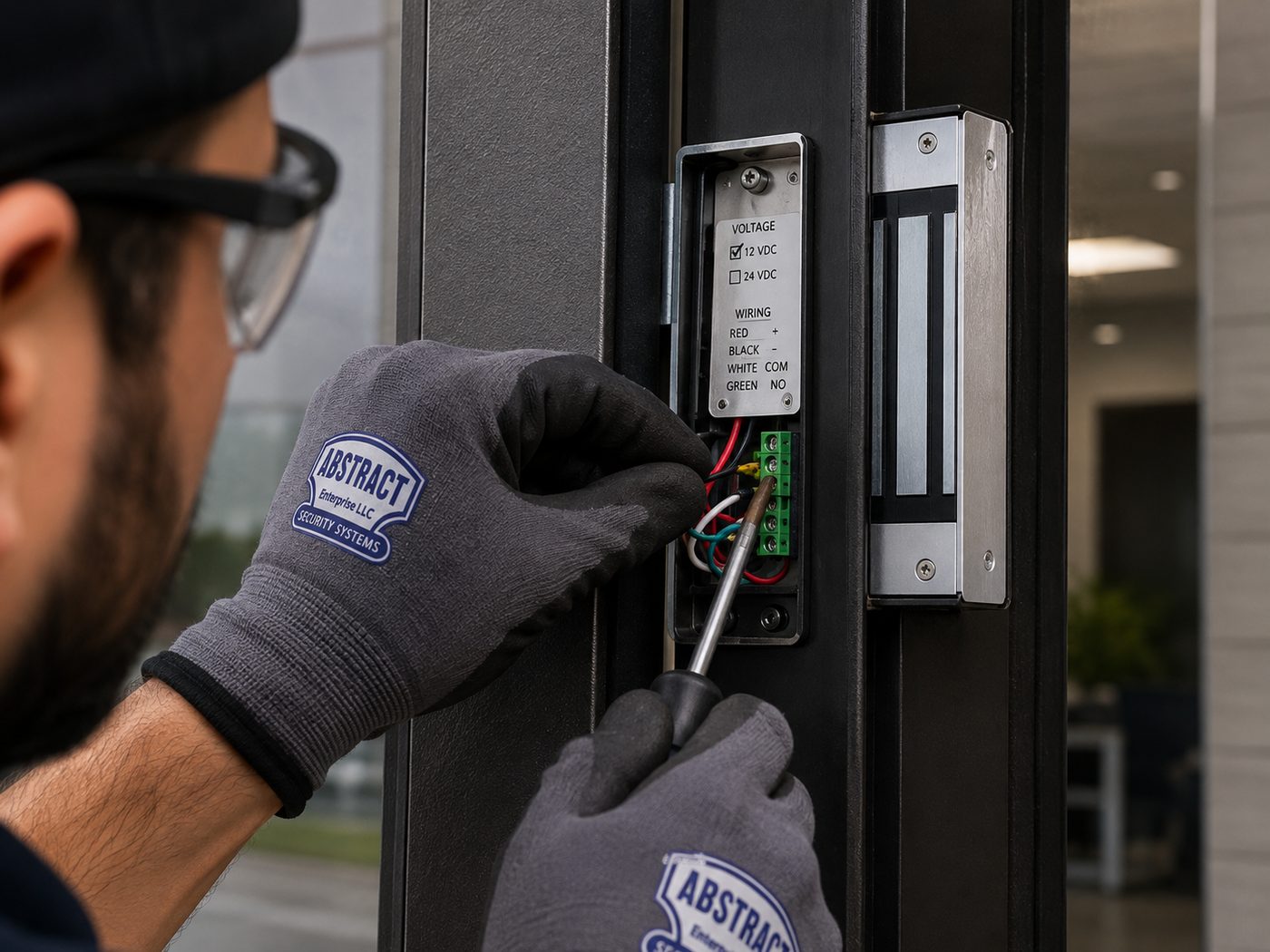

Lock power and monitoring landed as part of a single door bundle.
PRICING
Bronx Low Voltage Installation Pricing
These are the figures we publish, not a band we hide behind. What a drop includes on a Bronx job: solid copper cable, the jack and plate at the workstation end, the panel termination at the closet end, a wiremap test, labels at both ends and a patch cable.
Item
Starting price
Notes
Cat6 data or voice drop
From $175
Gigabit, standard PoE, solid copper
Cat6A drop
From $250
10G to the full channel, higher PoE classes
Refrigerated or wash-down area drops
Itemized separately
Rated cable and sealed enclosures, priced per area
Dock, gate and yard runs
Quoted per run
Outdoor-rated cable and conduit
Fiber backbone between buildings
Custom quote
Multimode or single-mode, terminated and tested
Rack build, patch panels, closet cleanup
Itemized
Scoped per closet
Minimum job size
$500
Mobilization floor
Service, troubleshooting and callbacks
$195/hr, 3-hour minimum
Service work only, not initial installation
What moves the number up: refrigerated and wash-down areas, overnight or weekend-only work windows, high-bay mounting needing a lift, runs leaving the building, masonry and plaster in older buildings, a second closet to stay inside distance, and abandoned cable occupying the pathway.
What moves the number down: daytime access, accessible ceilings with existing pathway, grouping drops rather than scattering them, bundling multiple systems into one mobilization, and settling the work window early so the programme is realistic.
Owner-supplied materials are welcome. Solid copper and a jacket rated for the space are the only two things we insist on, and in a cold or wash-down area we will tell you plainly if what arrived is not rated for where it is going. Every per-drop figure sits on our structured cabling pricing page.
Need Low Voltage Repair in the Bronx?
Dead drops, offline cameras or access points, a door that stopped releasing, cable damaged by vehicle traffic, or a closet nobody can trace. We are on Fordham Road, and we work overnight windows where a facility needs it. Most single-fault troubleshooting is resolved on the first visit. Service is billed at $195/hr with a three-hour minimum.
One closet, roughly five Cat6 drops, panel-terminated and tested. Suits a storefront on Fordham Road, a professional suite or a small office. Arithmetic on the published $175 rate.
Standard
From $1,750 installed
Around ten drops with a wall-mount rack build, panel and closet dress-out. The common shape for a medical suite or a small commercial tenancy. Arithmetic on the published $175 rate; Cat6A from $250.
Premium
From $5,250 installed
Twenty-one Cat6A drops or more, plus fiber between structures, a full rack build and certification with drawings. Where most facility and multi-building site work lands. Arithmetic on the published $250 rate.
Each figure above is the published rate times the drop count next to it — no hidden assumptions and no quote implied. Refrigerated and wash-down areas, overnight windows, high-bay mounting, outdoor runs, distance and certification all shift the real number, which comes out of the survey. The floor on any job is $500.
Already bought your cable and hardware? Ask about a bring-your-own-equipment (BYOE) install — labour-only pathway, pulling, termination, testing and labelling of materials you supply, provided the cable is solid copper and correctly rated for where it is going.
There is nothing to lease and nothing recurring; what goes in belongs to the facility. Anything we supply is covered for three years. Later visits and callbacks run at $195/hour with a three-hour minimum, which is $585.
Reader, lock power and request-to-exit pulled as one bundle back to the controller.
LOCAL PROBLEMS
Low Voltage Problems Specific to Bronx Facilities
Standard cable installed in cold space. Works on handover, stiffens and cracks a couple of winters later, and nobody connects the failure back to the specification.
Water inside an unrated enclosure. A box chosen for a dry office wall, mounted in an area that gets pressure washed twice a week. The damage is invisible until something stops.
Condensation at a temperature transition. Moisture collecting in whichever enclosure sits nearest the point where cable crosses between cold and ambient space.
Equipment mounted in the traffic envelope. Heights chosen for reach rather than for forklifts, which is a repair scheduled rather than avoided.
Pre-war buildings with no riser. Basement demarc, upper floors, and no pathway anybody designed for data. A permission problem before it is a technical one.
Shared closets in mixed-tenancy buildings. Studios, small commercial and food production sharing one room, nothing labelled, everybody able to reach everybody else’s equipment.
Work planned for hours the floor is not available. A programme built around a day shift on a facility whose only quiet window is overnight. It slips immediately.
Devices added past what the switch can power. Camera count grows, combined draw crosses the PoE budget, equipment cycles, and the cabling absorbs the blame for months.
FIELD NOTES
Field Notes from Bronx Facilities
Ask what happens in each area before you spec anything. Which rooms are refrigerated, which get washed down, where vehicles run, what gets cleaned with chemicals. Five minutes of questions at survey prevents the two most common facility failures we get called to fix.
Keep terminations out of the cold. Wherever the design allows, the jack and the active equipment live in ambient space and only the run passes through. A termination sitting inside a freezer is a fault with a delayed start date.
Agree the window before the scope. On a site running shifts, everything else follows from when the floor is actually available. A programme written around hours that do not exist is not a programme.
Mount for the forklift, not for the technician. The comfortable height is frequently the wrong one. Anything within the traffic envelope gets hit eventually, and eventually is sooner than anybody expects.
Entry panel wiring at a pre-war vestibule, run back to the head end.
COVERAGE AREA
Bronx Low Voltage Coverage
We install and service low-voltage systems across the Bronx, from the Hunts Point industrial peninsula through the Grand Concourse corridor and north to Riverdale.
Hunts Point and the IBZ
Food distribution, cold storage, freight and logistics across the Industrial Business Zone.
Mott Haven and Port Morris
Older industrial shells, newer residential, studios and mixed commercial tenancies.
Grand Concourse
Pre-war multifamily, riser work, entry and intercom wiring in occupied buildings.
Fordham Road
Retail corridor storefronts plus professional and medical suites above. Our Bronx office is here.
Riverdale
Professional suites, medical offices and institutional property.
Institutional and Municipal
Schools, healthcare, community and municipal facilities across the borough.

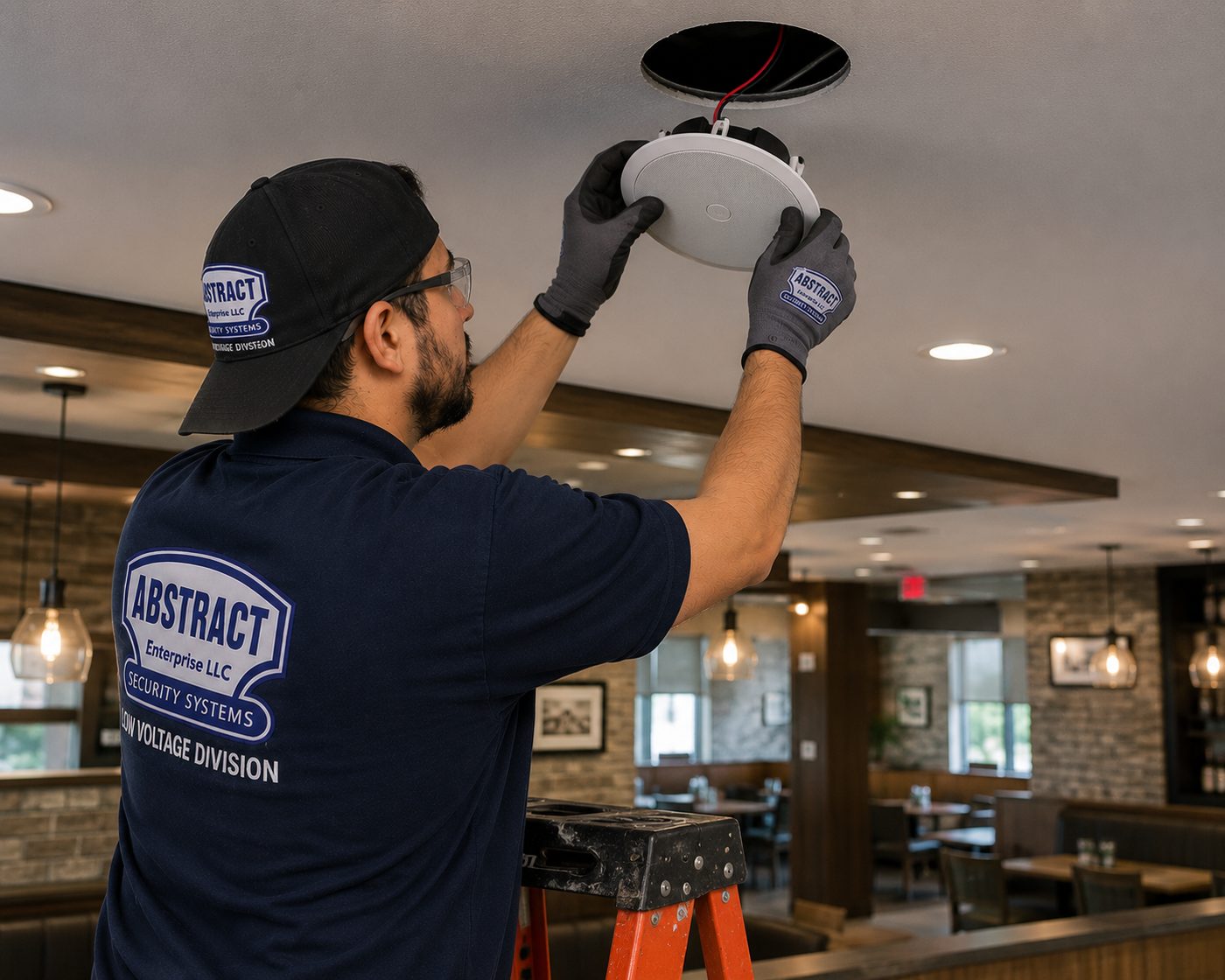

Speaker cabling in hospitality space, scheduled around trading hours.
FAQ
Bronx Low Voltage Installation FAQ
What counts as low voltage wiring in a Bronx facility?
Everything that carries a signal rather than power — the data and voice runs, camera home runs, the wiring behind a controlled door, entry and intercom cabling, alarm circuits, paging and audio, signage and controls. In a facility it is usually the wiring nobody thinks about until it stops. New York City fixes the boundary in Administrative Code §28-101.5: under 50 volts, for signalling, communication, alarm and data transmission circuits.
Do you work overnight and weekend windows?
Yes. On a facility running multiple shifts the available window is frequently overnight, and we schedule around the operation rather than asking it to stop. The window is agreed before the technical scope because the whole programme depends on it.
Will you issue a COI for our facility or landlord?
Yes. We issue certificates of insurance naming the owner, the operator, the managing agent and any additional insureds your property requires, before we mobilize.
Can you work without shutting down a production area?
Usually, by staging area by area rather than floor-wide. Some pulls genuinely need a section clear, and the honest approach is to identify those at survey and book them rather than discovering them mid-shift.
Do you install cable customers supply for cold areas?
Yes, with two checks. It has to be solid copper, and it has to be rated for the environment it is going into. If a delivery is standard jacket destined for refrigerated space we will say so before installation rather than after, because that failure surfaces two winters later and is expensive to unwind.
How long does a Bronx facility cabling job take?
A small suite with accessible pathway is typically a single visit. A facility with environmental zones and a restricted window runs longer in calendar time even where the labour hours are similar, because the work is staged. Start and completion timing turns on building conditions, equipment availability, access to the property, permitting where it applies, and how large the project is.
Is certification testing included on facility work?
Wiremap and length testing is performed on one hundred percent of drops as standard. Full TIA-568 certification with a Fluke DSX-class analyser, delivered as printed and digital records per drop, is available as a priced line and is worth having anywhere an insurer, an auditor or a landlord may ask for documentation.
What documentation comes with a completed Bronx job?
Both ends of every cable labelled against a scheme the port map matches, the as-built drawing, the port map, configuration notes and a digital closeout set. On a facility running three shifts this is the difference between a ten-minute fault and a three-hour one.
What do you charge to diagnose a system somebody else installed?
Service, troubleshooting and callback work on systems not originally installed by us is billed at $195 per hour with a three-hour minimum. That rate applies to service calls, not to initial installation projects, which are quoted by scope from a free survey.
What does the Bronx warranty cover?
Abstract Enterprises Security Systems provides a three-year warranty on products supplied by us. There are no monthly fees on the systems we install.
Can you inherit a facility system somebody else installed?
Yes, starting with an assessment rather than a quote: which runs certify, what the existing hardware can carry, whether cable already in place can be reused, and in a facility whether the components fitted are actually rated for the areas they are in. That last check catches more problems here than anywhere else we work.
Do you work with general contractors on Bronx projects?
Yes. We come on as the low-voltage trade with COI issued up front, dates committed, rough-in sequenced with the other trades, and a closeout set with drawings and port map at the end.
Still deciding? The survey is free and settles it.
Dead drops, offline devices, damage from vehicle traffic, or a closet nobody can trace. From Fordham Road we reach most of the borough quickly, and we take overnight calls where a facility cannot stop during the day. $195/hr with a three-hour minimum for service and callback work.
Tell us the facility, the neighbourhood and when the space is available. If there are refrigerated or wash-down areas, mention them — it changes the specification. The survey is free and commits you to nothing.
Call (646) 490-0629 · WhatsApp: (718) 679-0359 · 460 E Fordham Rd, Bronx, NY 10458 · NYS Low-Voltage License #12000287431
WARRANTY
Warranty and Service Terms
Abstract Enterprises Security Systems provides a three-year warranty on products supplied by us. Service, troubleshooting and callback work on systems not originally installed by us is billed at $195 per hour with a three-hour minimum; that rate applies to service calls rather than to initial installation projects. There are no monthly fees on the systems we install. Start and completion timing turns on building conditions, equipment availability, access to the property, permitting where it applies, and how large the project is.
Regulatory references on this page cite the New York City Administrative Code and the 2025 New York City Electrical Code as published by the City of New York. They are provided for general information about how low-voltage work is classified and are not legal advice. Requirements for your specific facility and scope should be confirmed with the Department of Buildings, and any food-safety or facility-specific requirements with the relevant authority.
ALL AREAS SERVED
Low Voltage Installation by Area
Everywhere we run low-voltage and structured cabling work. Areas without a dedicated low-voltage page are served on the same terms, and those links go to a survey booking.
Reviewed and updated August 12, 2026 by Anwar Timothy of Abstract Enterprises Security Systems, NYS Low-Voltage Electrical Contractor License #12000287431. Changelog — Aug 2026: page published for the Bronx. · Aug 2026: permitting section written against Local Law 128 of 2024 and the 2025 NYC Electrical Code effective 21 December 2025. · Aug 2026: cold-chain, wash-down and temperature-transition guidance added for Hunts Point and Industrial Business Zone facilities.
