Network Installation Staten Island

What a Staten Island network installation covers

This is the only borough where a commercial property is usually a whole building on its own lot rather than a floor in somebody else's. That changes what the scope has to include.

• A walk of the property, not a tenancy. Where the service enters the lot, where the equipment room can go, whether there is more than one structure, and how far the far corner sits from the proposed room.
• An exposure read. Which parts of the route are exterior or below grade, how the property drains, and where equipment sits relative to the ground. On a coastal borough that is a design input rather than a footnote.
• A written design. Addressing, the VLAN scheme, switches sized with capacity in reserve, radio counts and positions, and the equipment list.

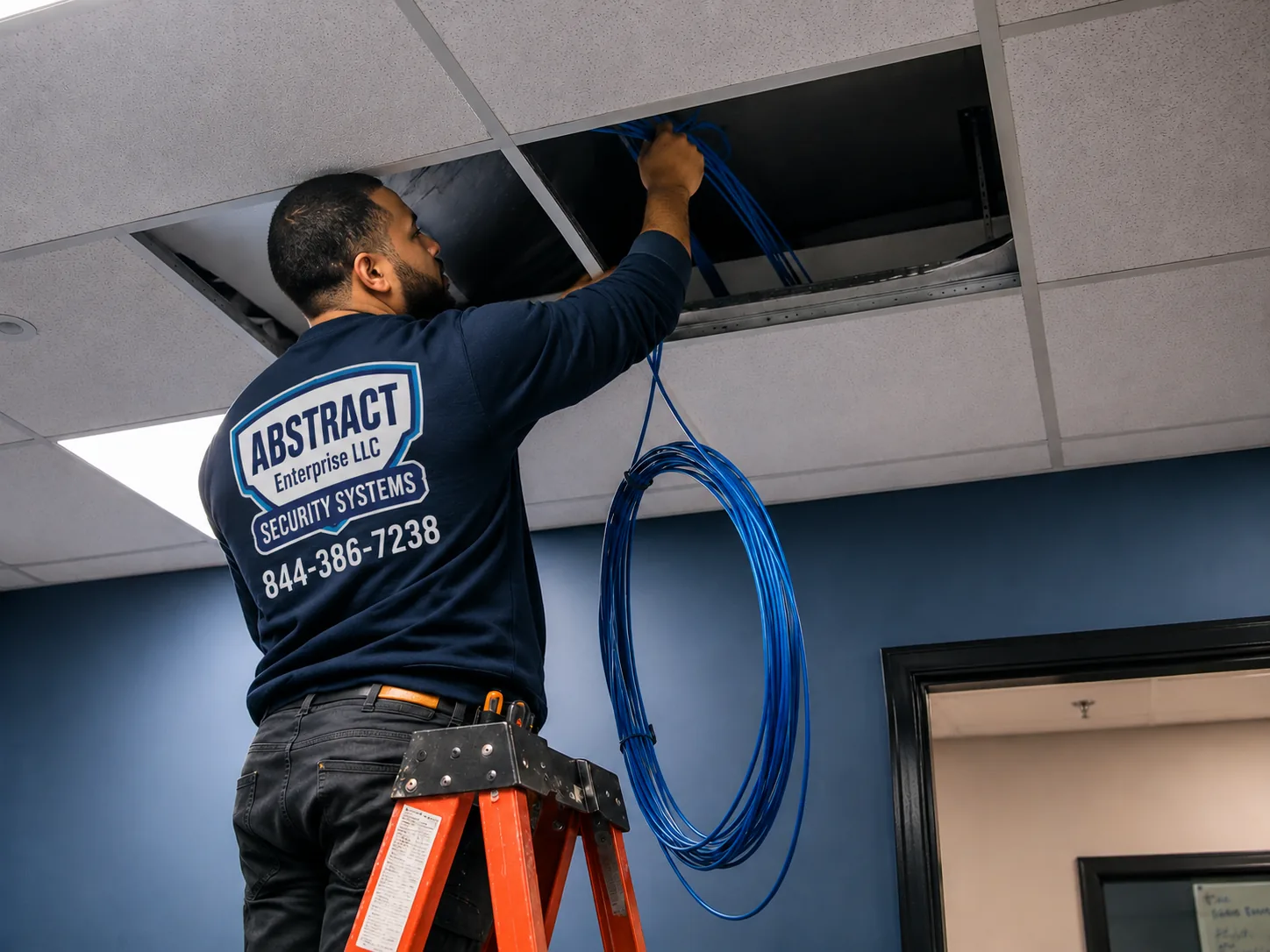

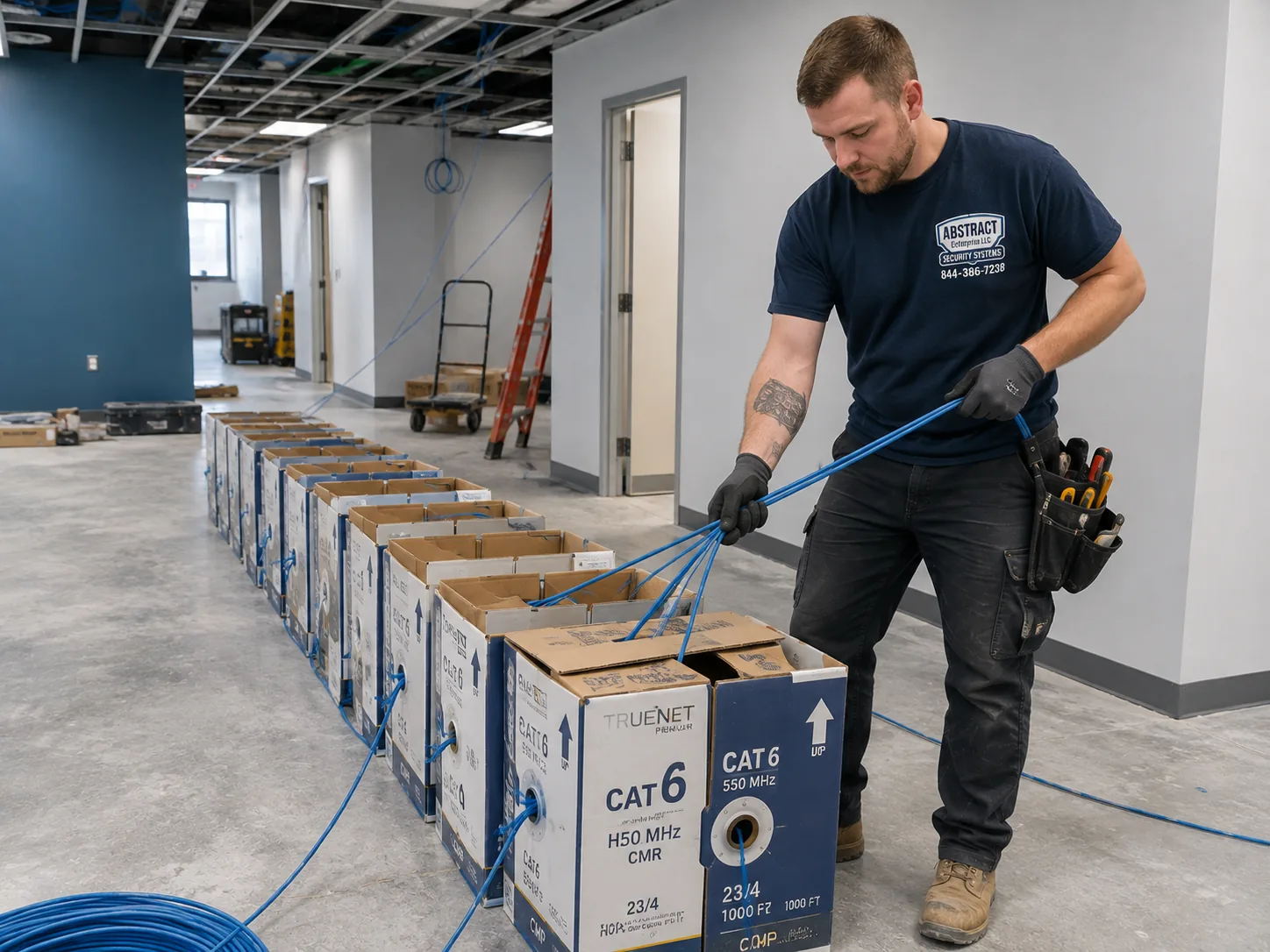

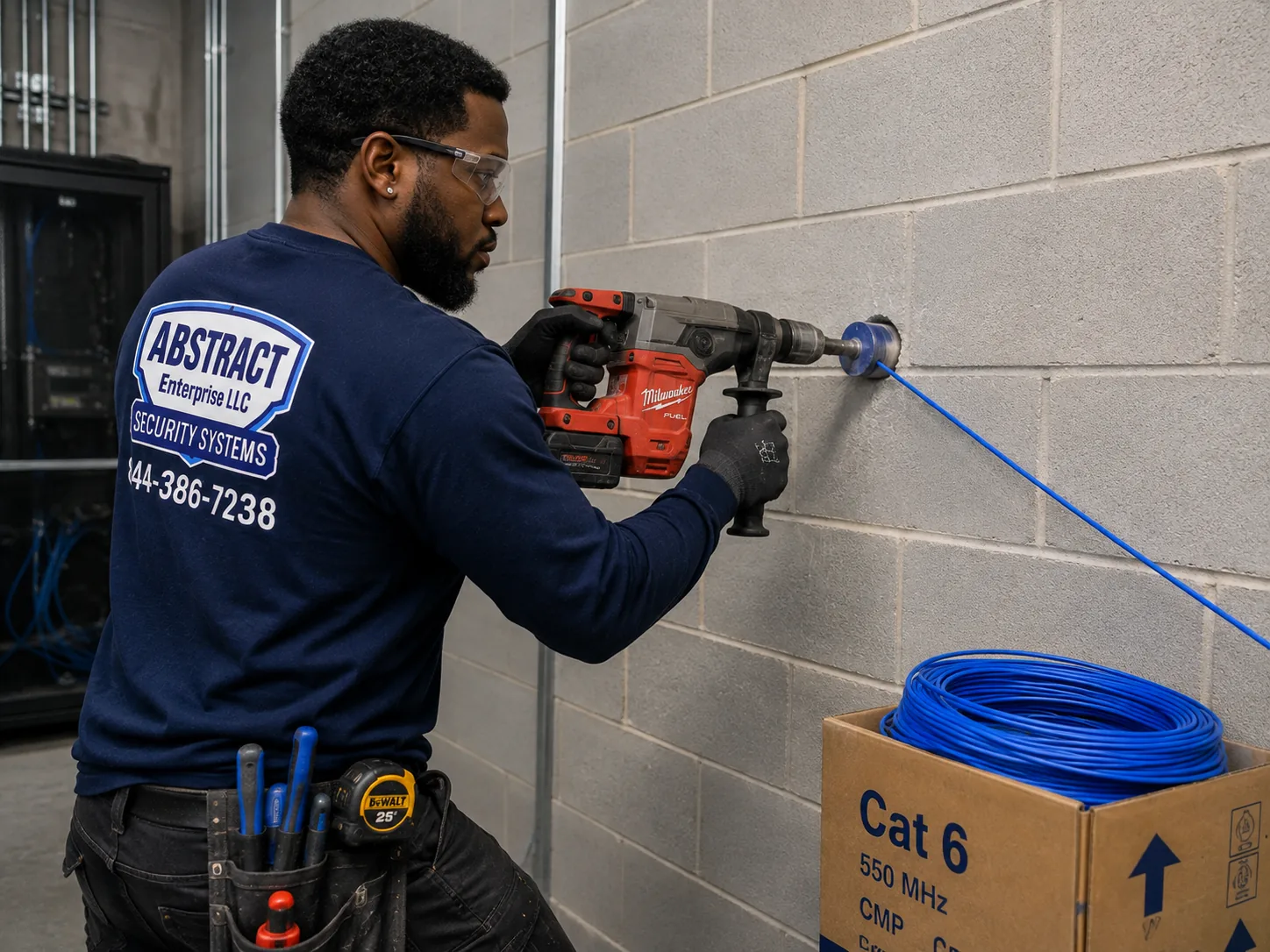

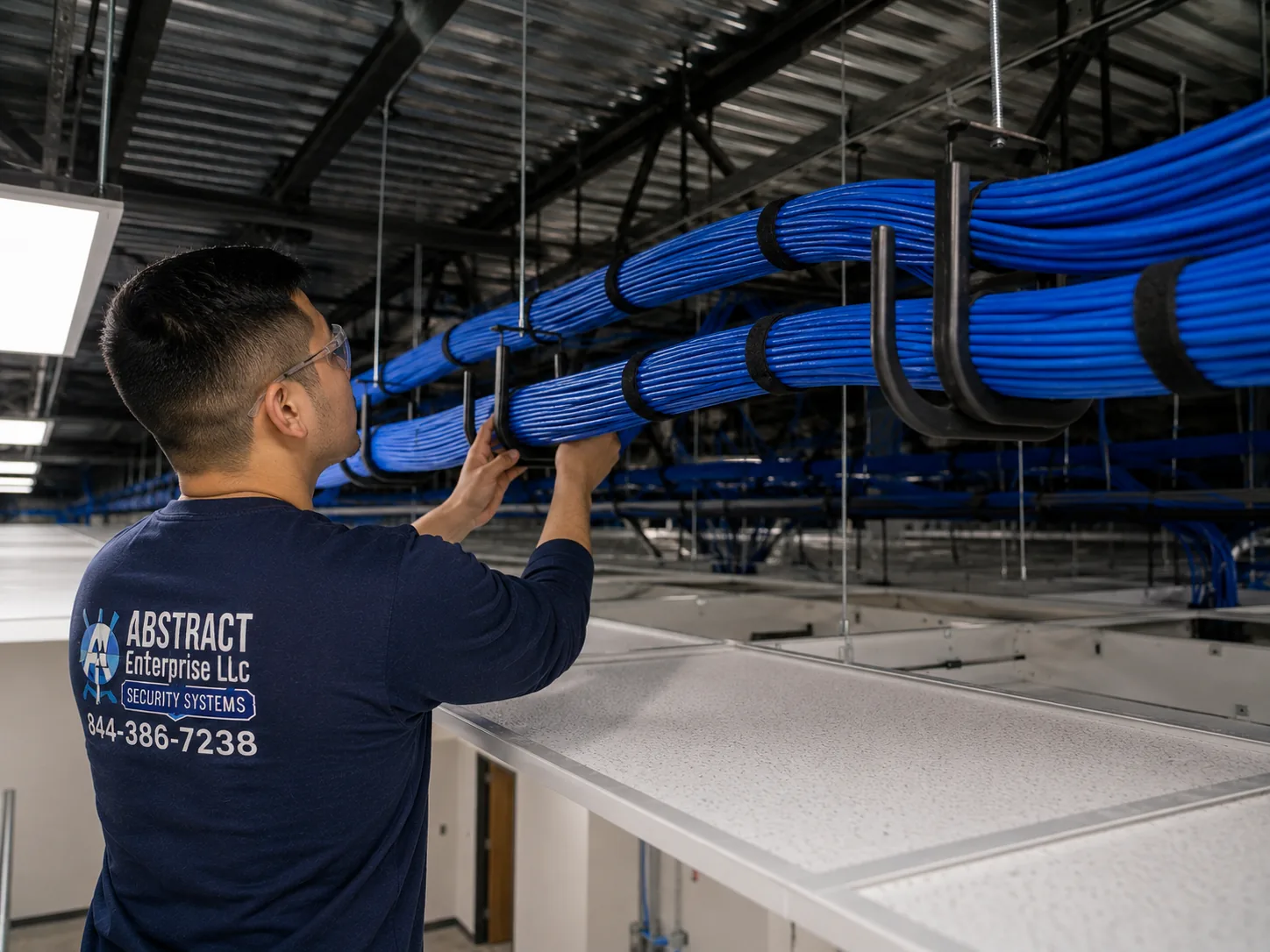

• The plant. Cable on supported pathway, exterior-rated wherever it leaves conditioned space, firestopped at rated penetrations, terminated on matching components and certified across every run.
• The rack. Cabinet or floor-standing frame, panels, managers, protected power and battery backup, dressed and marked at both ends.
• The live layer. Switches, the edge firewall and the radios — mounted, configured, tuned and demonstrated.
• Handover. Port map, site as-built, addressing record, equipment inventory with serials, and administrator logins.

Listed separately rather than absorbed: rack hardware, panels, switches and firewalls where we supply them, conduit where the property demands it, exterior-rated pathway and grounding at every entry, firestop materials, coring through block, lift work under high bays, and any exterior or between-building run. On a whole-building property these are ordinary parts of the job rather than exceptions, and a bid that leaves them out has priced a suite instead of a site.

Low, wide buildings and the reach of a single room

The island's commercial stock is overwhelmingly low-rise and spread out, which produces a distance problem the vertical boroughs rarely encounter.

Copper horizontal cable is limited to a hundred metres, and that hundred metres is the cable as installed — up into the ceiling, along the pathway, around the mechanical space and back down to the outlet — not the distance somebody would pace across the floor. Once the vertical drops and detours are counted, usable straight-line reach from one room is closer to seventy metres in any direction.

Apply that to a typical West Shore or Bloomfield industrial building. A single-story structure of 40,000 square feet is frequently 400 feet by 100 feet. Site the room where the electrical service enters at one end — which is where it usually ends up — and the far corner is well beyond 400 feet of cable. Every position at that end is either out of specification or was installed anyway and now sits at the edge of what it can do, which is where links quietly negotiate down and powered devices behave inconsistently.

What the design does instead

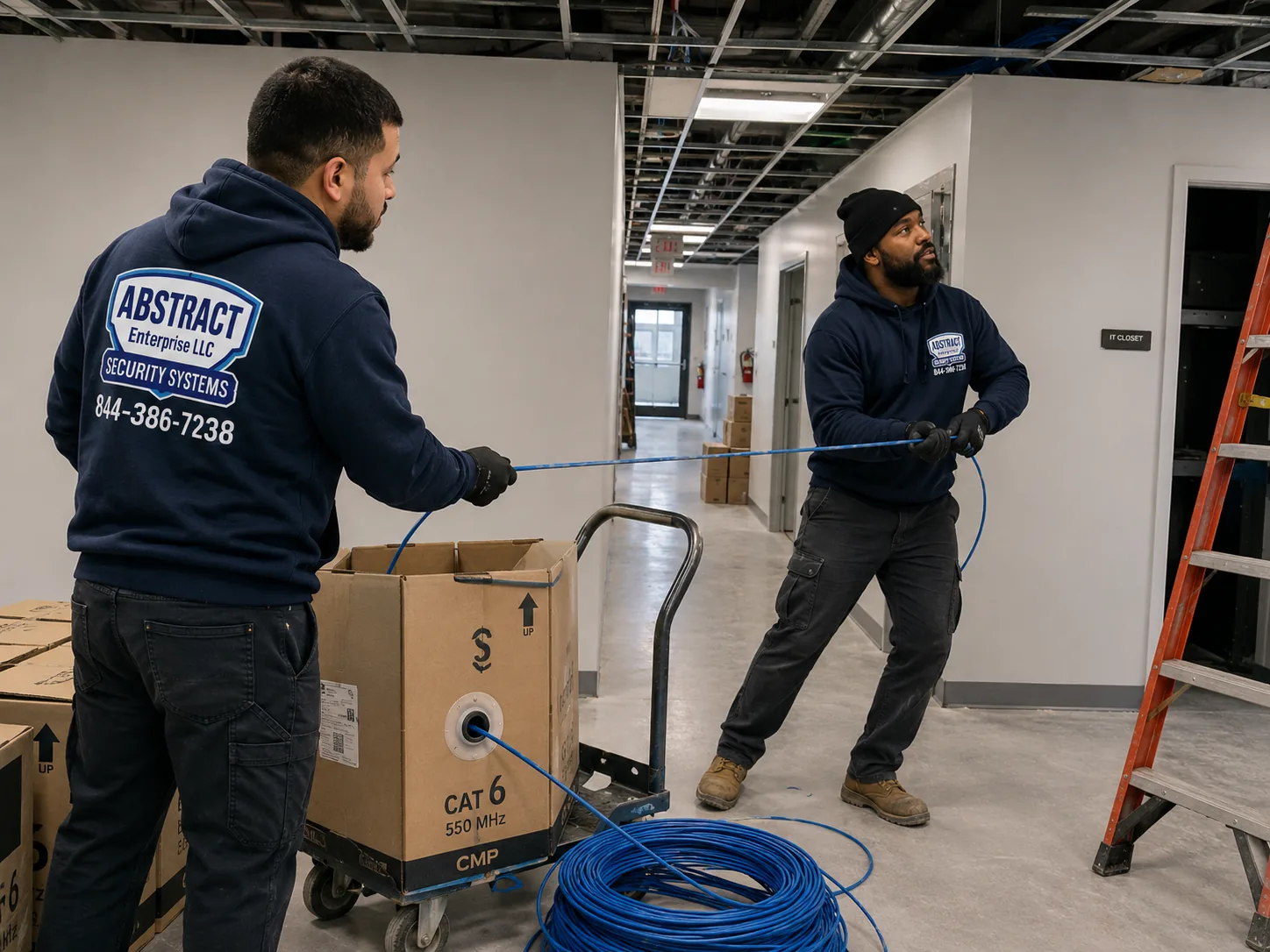

• Rooms placed by zone, positioned centrally to the area they serve rather than where the panel happens to be.
• Fiber carrying the distance between rooms, so the horizontal runs all stay comfortably in specification.
• The worst run measured at survey, not the average one, because the furthest position is the one that will fail.
• Uplinks between rooms sized generously, since everything an entire zone does passes through that single link.

And between buildings

Properties with more than one structure are common here — a main building and a shop, a warehouse across the yard, an office and a garage. Those get linked with single-mode fiber rather than a wireless bridge, because a bridge on this island contends with weather in a way it does not need to. Aerial where the property allows and structures exist; underground where it does not, which brings trenching, utility locating and surface restoration into scope as their own line. Either way the exterior cable is rated for it and both entries are sealed and bonded.

Switching, the edge and rooms on a spread-out site

The equipment list is unremarkable. Where it lives, and what happens when a link between rooms fails, is the part worth thinking about.

Rooms, and why they should not be chained

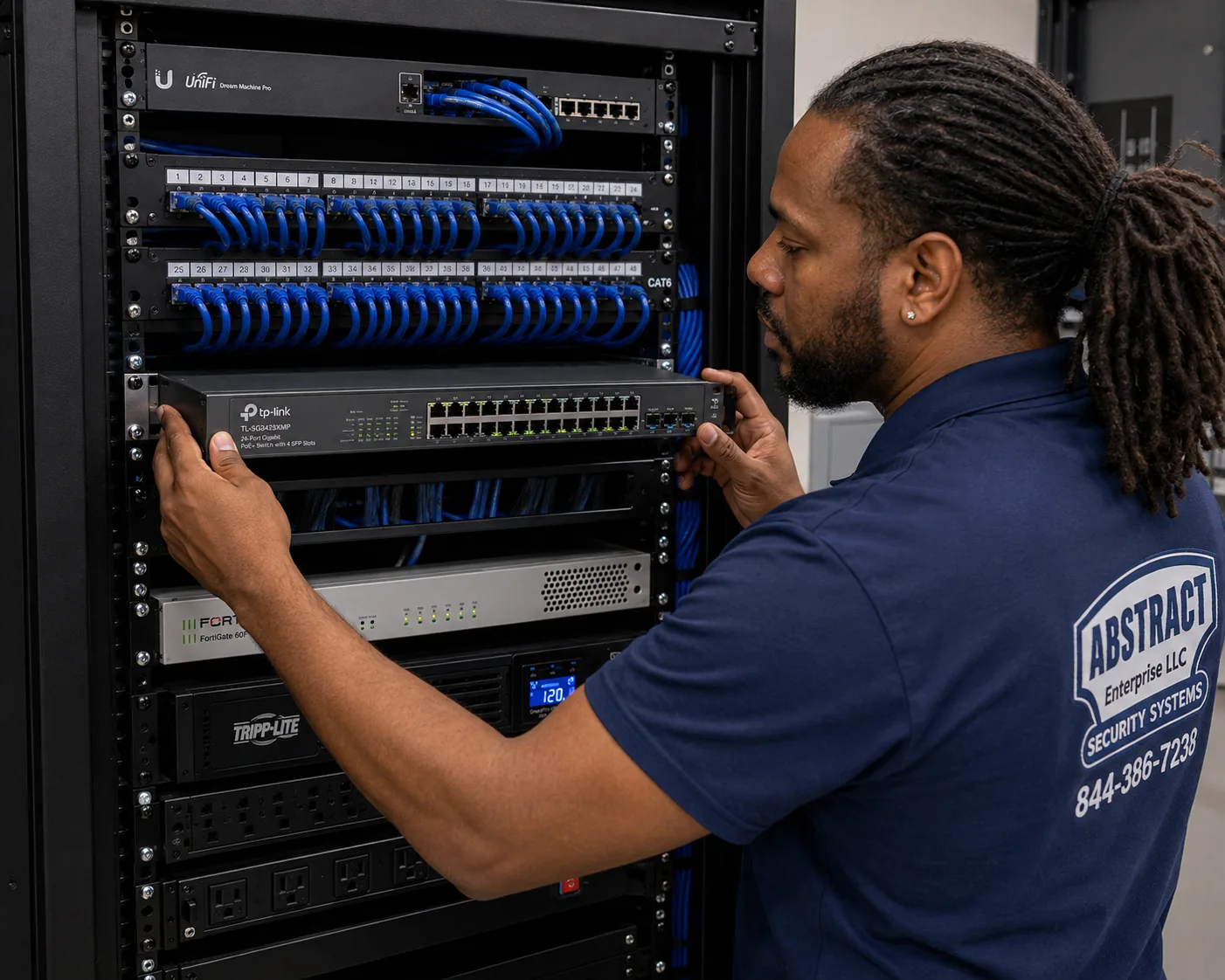

Each zone room carries its own switching, sized for the positions it serves with genuine spare capacity, and links back to the main room over fiber. The arrangement we most often unwind on multi-room island properties is a chain — the main room feeds the second, the second feeds the third — because a fault at the front takes everything behind it down. A star topology from the main room costs nothing more in equipment and fails far better. On a property where one structure holds the office and another holds the operation, that difference is the whole uptime story.

Uplinks

The fiber between rooms carries everything that zone produces, so it is a poor place to economise. Ten-gigabit uplinks cost marginally more at build time than gigabit and remove the question for the life of the property. On sites where a warehouse zone moves large files or a second building holds storage everybody reaches, that headroom is the difference between a network that works and one that merely connects.

The edge

One router or firewall for the property, sited where the circuit lands. Consolidating a second or third connection acquired over the years into one edge with the others as failover is frequently the quickest saving available on a multi-structure site, and it is what makes a VLAN scheme enforceable — you cannot segment coherently across networks that do not share an edge. For most island businesses a business gateway with a considered rule set is right; anything regulated, remote-working or facing a customer questionnaire benefits from a firewall that logs properly.

Protecting the equipment from the property

Battery backup in every room rather than just the main one, because a UPS protecting the main room while two other structures reboot uncontrolled solves a third of the problem. Surge protection at the entry point of any run that has been outside. And, on low-lying properties, the equipment mounted at height as a matter of course rather than as a response to an event.

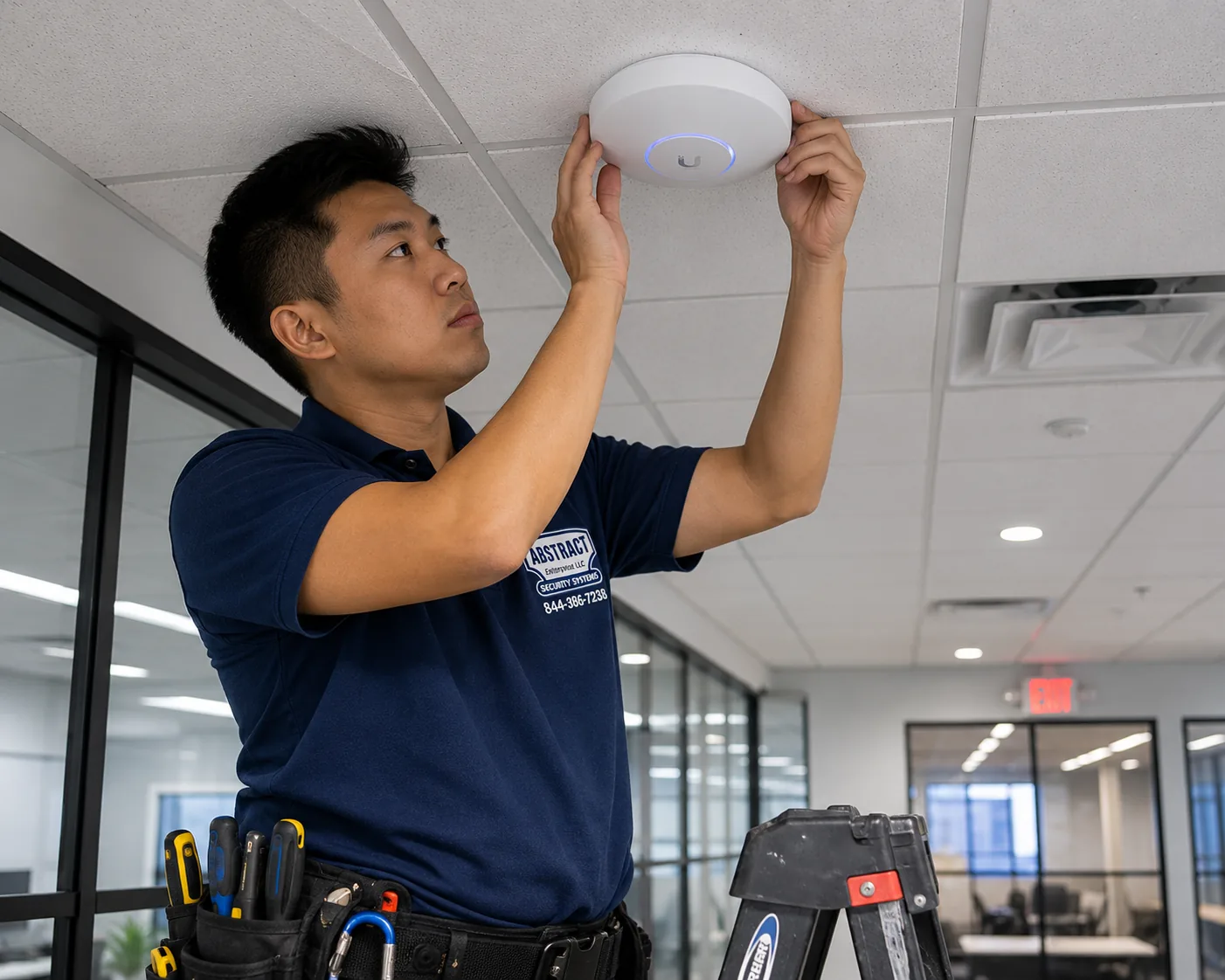

Wi-Fi installation on Staten Island: covering ground, not fighting neighbours

Wireless network installation here is almost the opposite of the Manhattan problem. Spectrum is quiet. What is difficult is the amount of ground a design has to reach across.

The spectrum is genuinely clear

Scan a commercial building on this island and you will typically find your own networks and perhaps a neighbour, rather than the dozens of overlapping networks normal in a dense office stack. That means channel planning has room to work, 2.4GHz remains usable for the devices that still need it, and interference is rarely the explanation for a problem. It also means that when wireless underperforms here, the cause is almost always coverage, placement or the building — which is a more tractable set of problems.

Wide, low buildings spread people out

Coverage that would be generous in a compact office leaves gaps in a 400-foot-long single-story building. Radio count on the island is driven by floor area and layout far more than by device density, which is the reverse of the picture in the denser boroughs. A dead spot here is usually a genuine hole in a far corner or a back storage area rather than an airtime problem.

Outdoors is part of the brief

On a whole-property site people expect coverage in the yard, at the dock, in the lot and at the gate. That is a different design from indoor coverage: exterior-rated radios, mounting that survives wind and salt air, cable rated for the run and bonded at the entry. Outdoor coverage is genuinely useful on working properties and it is quoted as its own line rather than assumed into an indoor count.

Two building types that resist

High-bay warehouse space, where racking and mounting height matter more than square footage and stock levels change the picture across a season. And older North Shore masonry, where thick walls stop signal between rooms in a way the floor area never suggests.

The network rack, and how high off the floor it sits

On most properties the question about a rack is what goes in it. Here there is a second question, and it is about elevation.

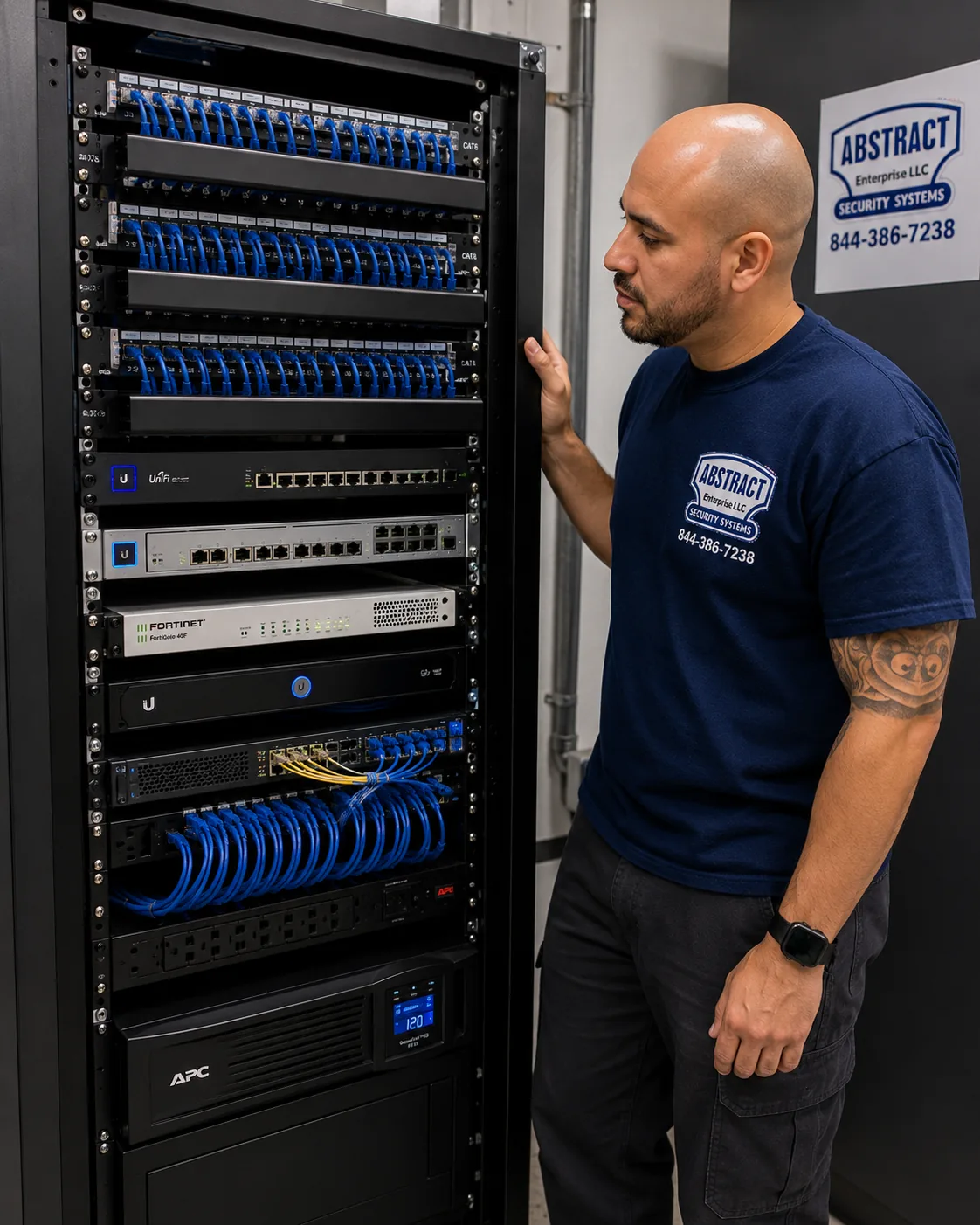

A good result looks ordinary: panels at the top, switching below, short cords in consistent colours through managers, marked throughout, with air around it and space to grow into. A poor one is equipment stacked on a shelf with a nest of cords behind it and nothing marked — an hour of somebody's time on every future fault, on a property where that somebody may have to drive across the island to get there.

What belongs in it

• A network rack or wall cabinet in a controlled space, mounted at a height chosen deliberately rather than by convenience.
• Patch panels with ports in reserve, because panel capacity is the hardest element to extend afterwards.
• Managers running horizontally and vertically, which is what makes a frame workable rather than merely full.
• Power. A dedicated circuit if the service permits, a PDU inside the frame, and a UPS chosen against the real load.

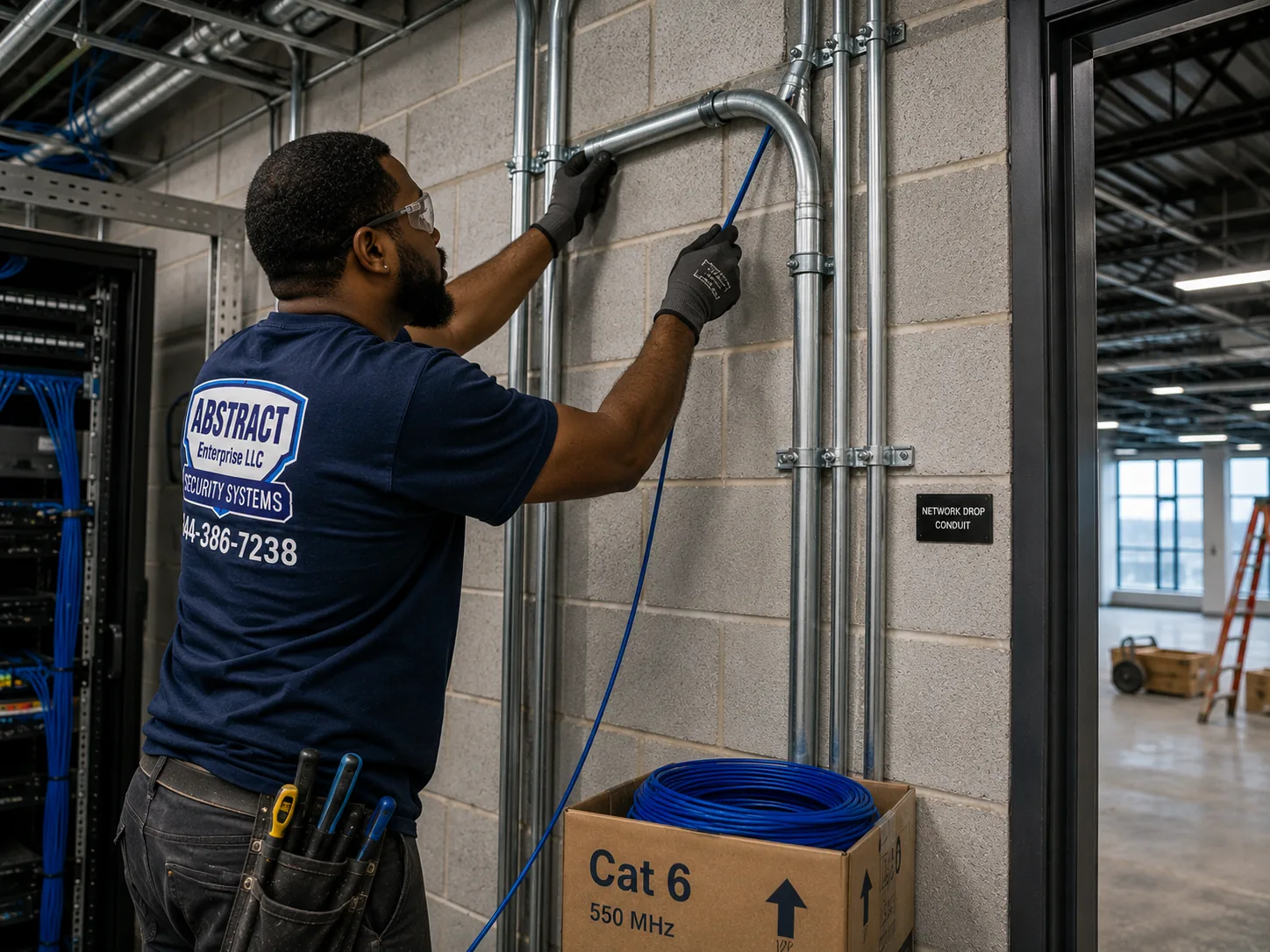

• Bonding and surge protection, particularly at the entry point of any run that has been outside.

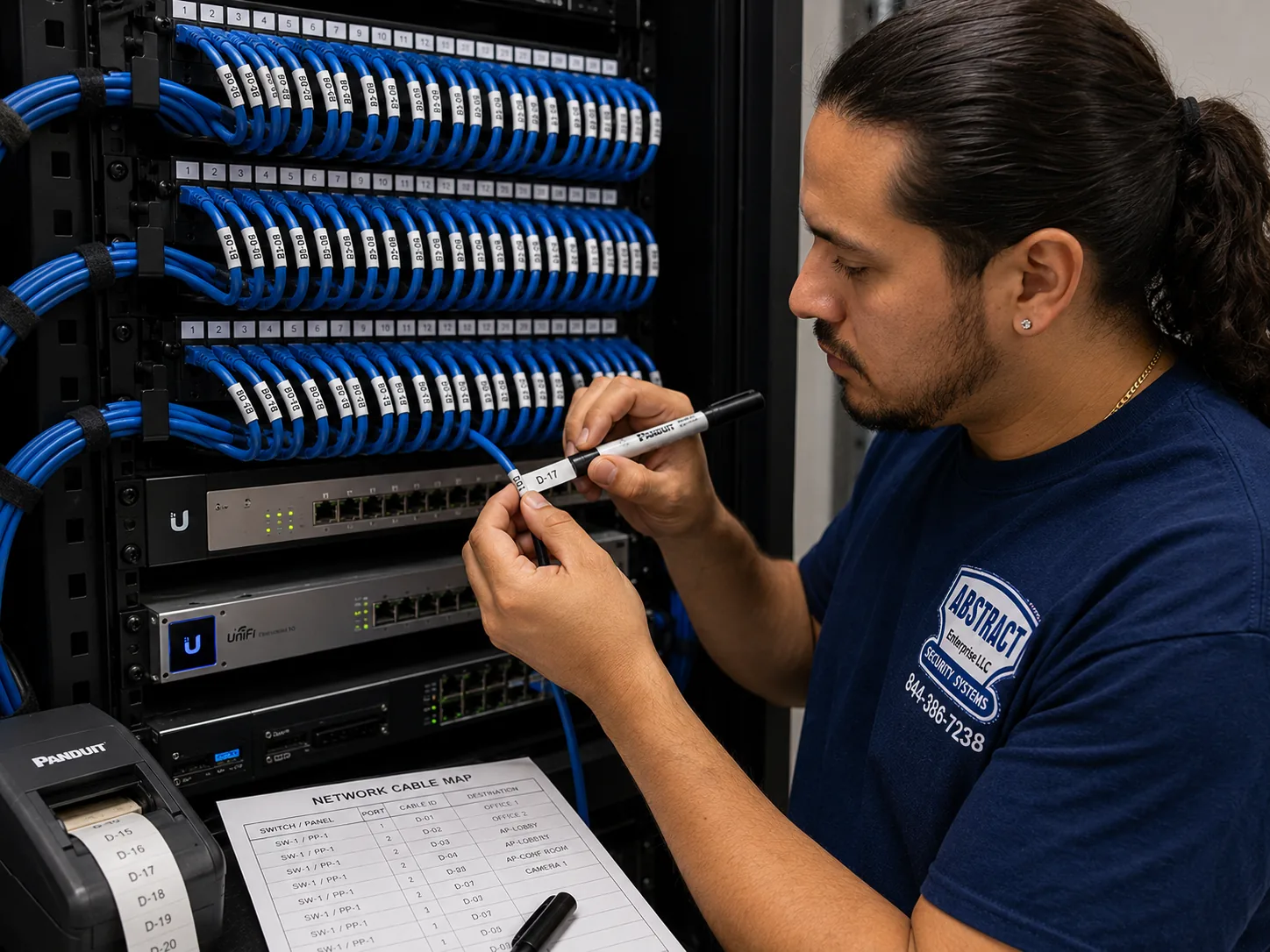

• Labels across every port, panel and cable end, aligned with the port map.

Climate in a single-story building

The room offered for network equipment on a slab-built commercial property is frequently an interior storage space with no ventilation, or a corner of an unconditioned warehouse. A sealed cabinet holding a switch delivering three hundred watts becomes an oven in July, and heat produces the intermittent, temperature-correlated faults that are miserable to chase. An unheated corner in February sits below the operating range of the same equipment. Both are settled at design time by choosing the space, venting the cabinet or specifying accordingly — not in the second summer.

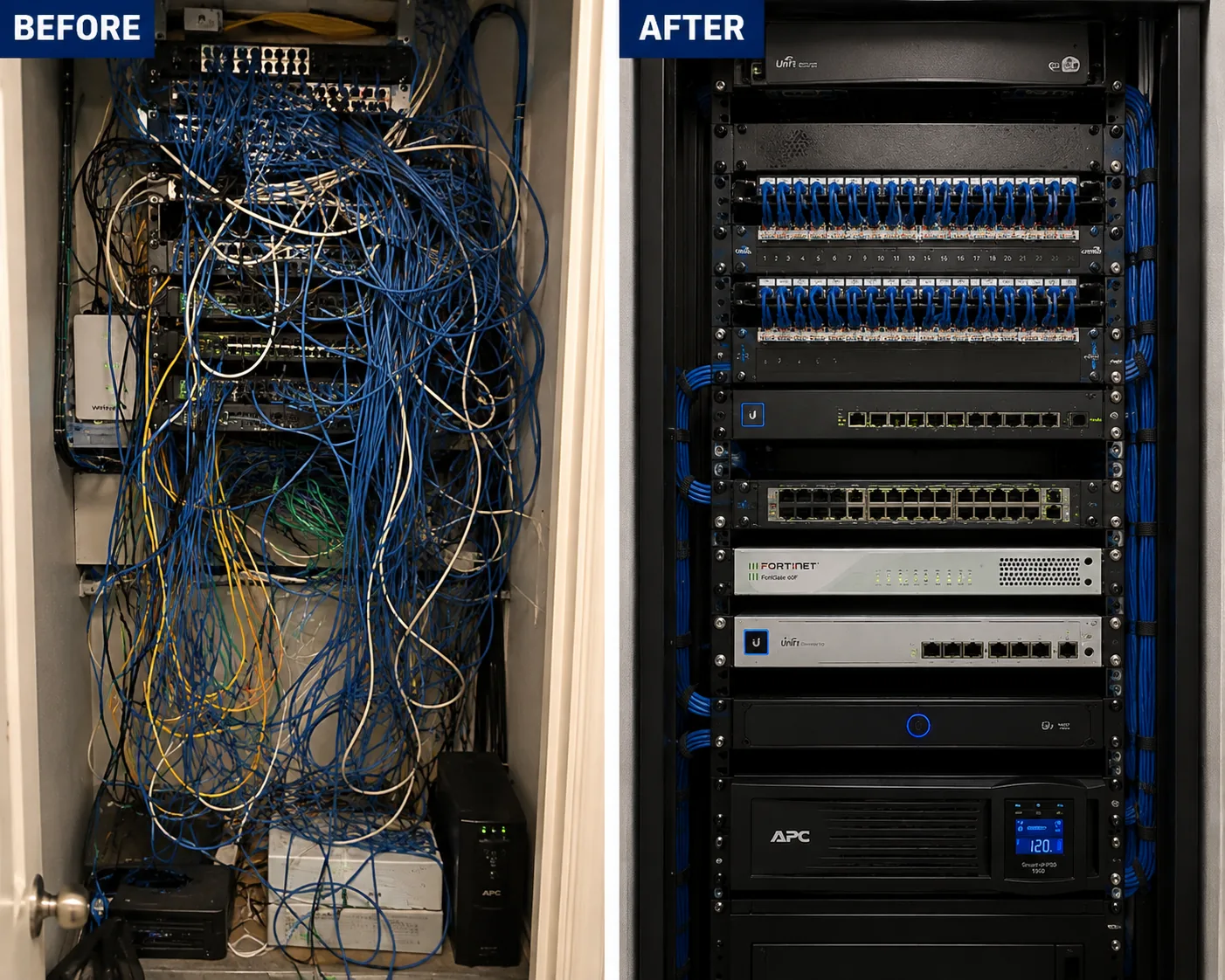

Cleanup as a job in its own right

A substantial share of island work is a frame that grew with a business across a decade or more, with runs to areas since rebuilt and nothing recorded. We trace, agree what is genuinely dead, remove it, re-route, re-terminate, dress, mark and produce a map. It is unglamorous, and on a property where every service call involves a drive it is usually the most valuable day anyone spends on that network.

Documentation, including what is buried

The measure of an installation is not the last day on site. It is how quickly somebody can act on it later, on a property where getting there is itself part of the cost.

Every project closes with the same document set, whether the client has an IT provider or an owner who has never opened a switch.

• Port map tying each panel port to its outlet, room and structure. On a multi-building property this is what prevents a search turning into an afternoon.
• Marking at both ends of every run, carrying the building identifier, in a scheme that still reads after the space is reorganised.

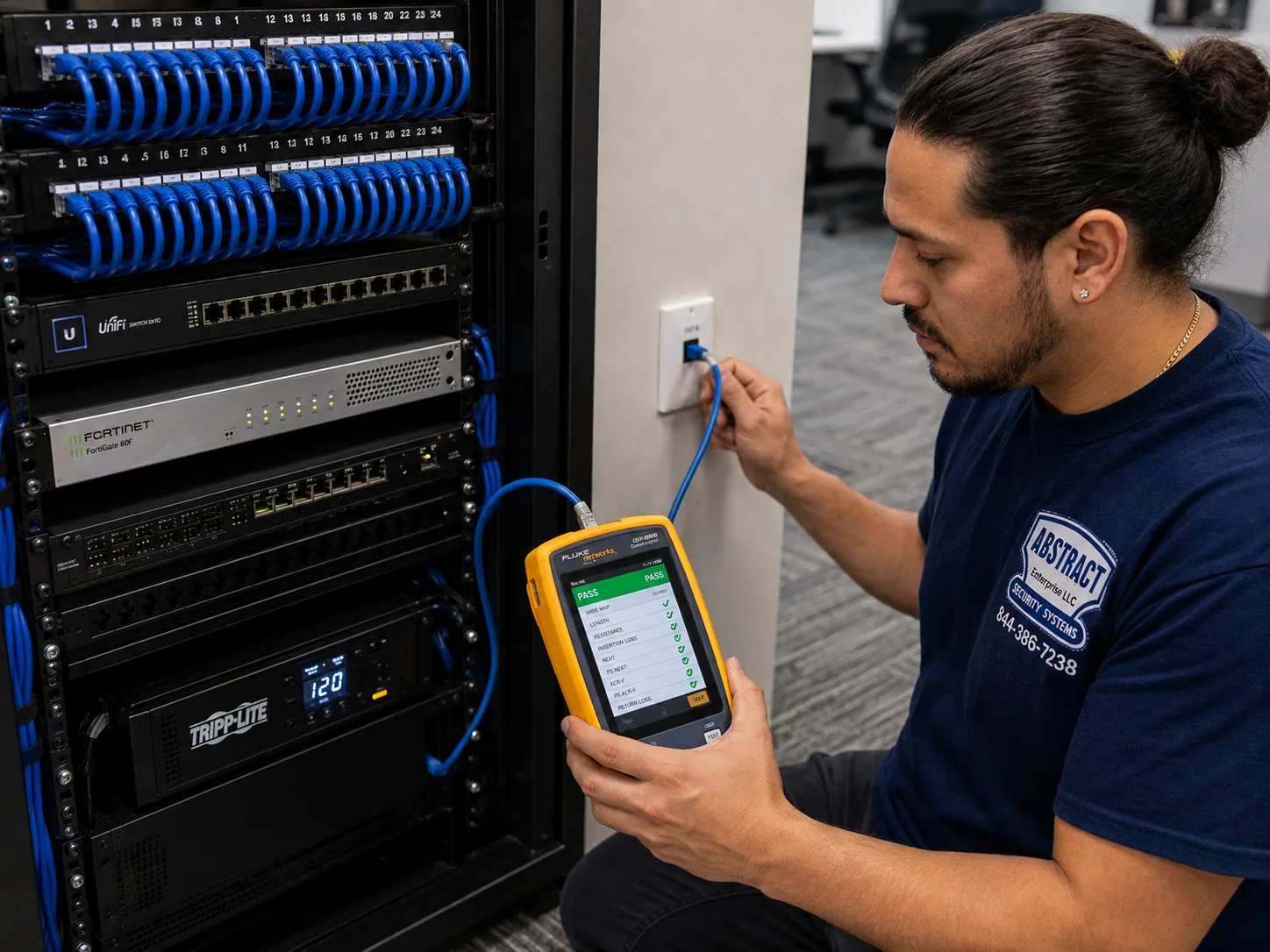

• Certification paperwork for every run installed, not a chosen sample.
• Site as-built showing every room, the fiber route between structures with whether it is aerial or buried, entry points, and radio positions indoors and out.
• A documented addressing and VLAN plan covering subnets, DHCP scopes, reservations, SSIDs and where each sits.
• A list of every switch, firewall and radio with its make, model, serial and firmware at handover.
• Full administrative access to each configured device, released when the job closes.

The buried route deserves particular emphasis on island properties. An underground run nobody recorded is a run somebody eventually cuts with a machine, and locating it afterwards costs considerably more than documenting it did. It goes on the as-built with measurements taken from fixed points, not sketched from memory.

On credentials, directly: some contractors keep administrative access to their own installations so that changing vendors means rebuilding from nothing. That is not how we operate, and the question deserves a direct answer from every firm you ask. It is your network. You get the keys.

What network installation costs on Staten Island

Published line items, matching our rates across the five boroughs. Switches, firewalls and radios appear as their own quote lines, or you provide them.

Design and survey

Installation and configuration

Property and exposure lines

Shown separately because they are what a whole-building property on a coastal borough genuinely requires, and because they are exactly what a bid written for a tenanted floor leaves out. Underground runs are quoted after a route survey rather than from a satellite image, since trenching, utility locating and surface restoration are not comparable to an aerial hop.

Whole-network packages

The single-story figure sits above a comparable tenanted floor elsewhere in the city, and the reason is the second zone room and its fiber link rather than any premium on labour. That room is what keeps every run inside specification on a wide plate, and it is the line most often missing from a cheaper bid.

What moves the number

• How many zone rooms the plate requires. The largest variable on the industrial side of the island.
• How much of the route goes outside, and whether any of it is between structures.
• Aerial versus underground for anything between buildings, which are not comparable numbers.
• How high the ceiling is, because a lift is required past fourteen feet.

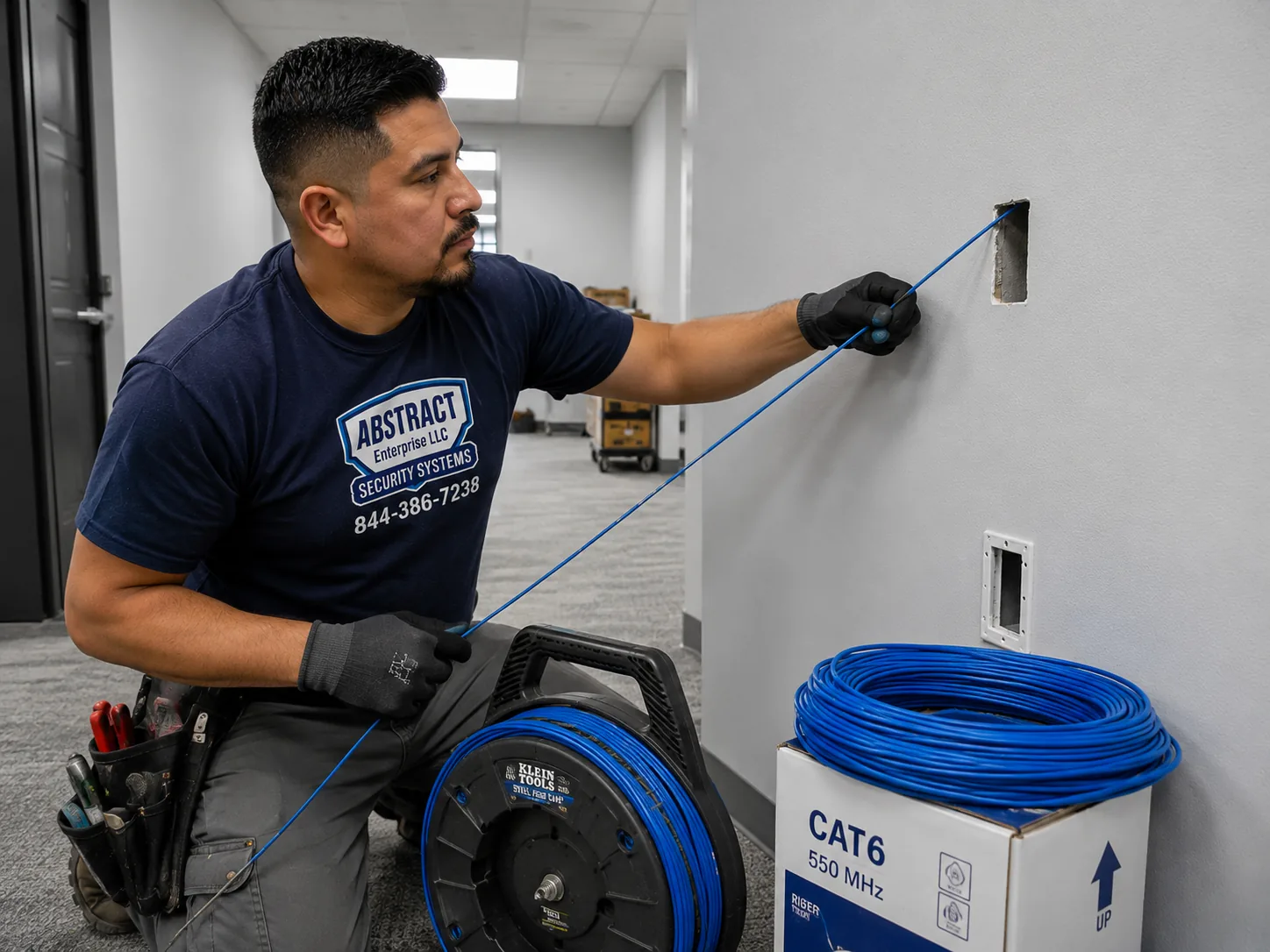

• Getting a run in ahead of the drywall costs far less than pulling it through later.
• Trading and clinical hours, which push retail work overnight and medical work to evenings and Saturdays.

Repair and service

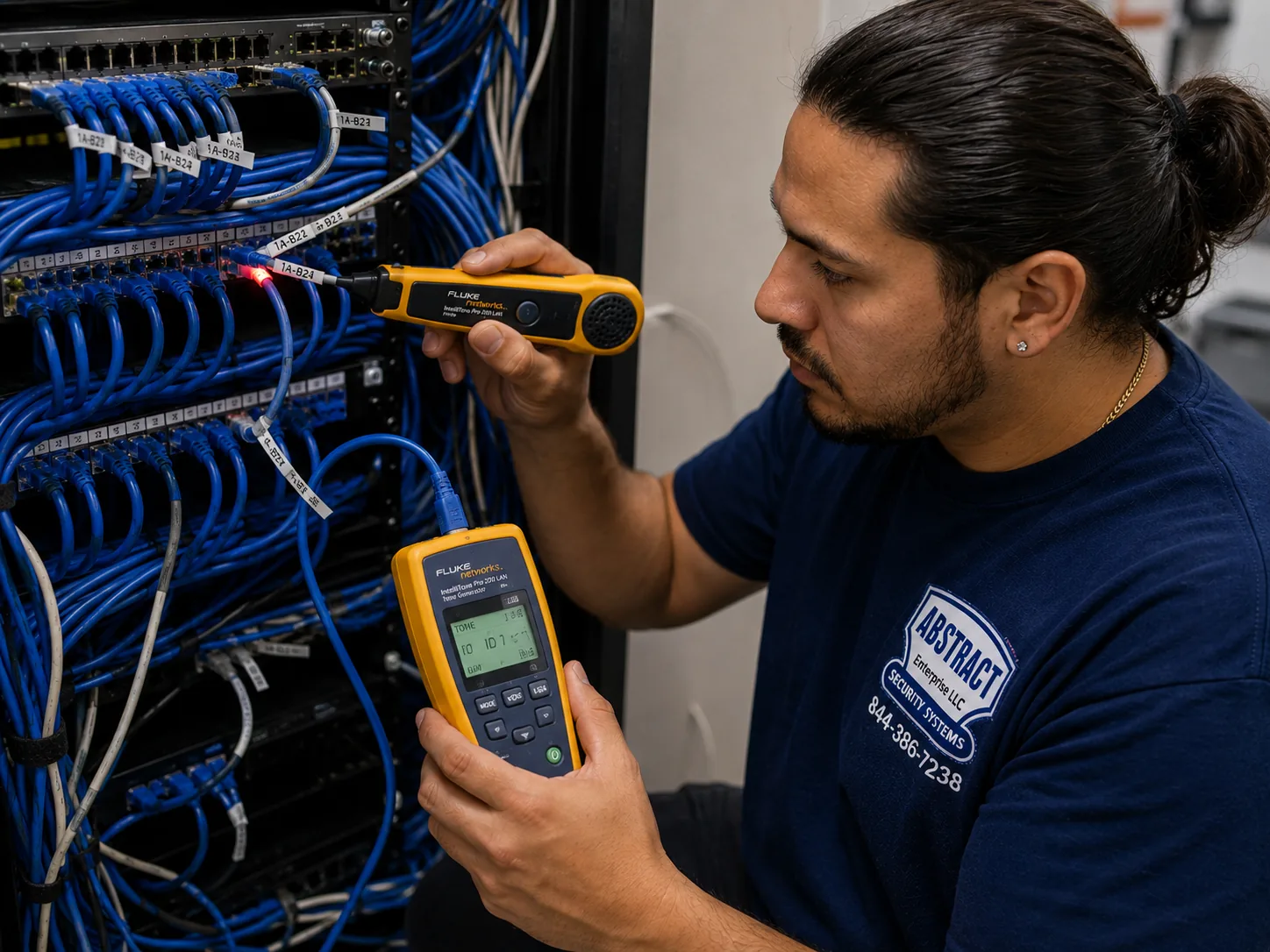

Fault-finding and repair on an existing network runs at $195 per hour against a three-hour minimum. Same-day dispatch across the island for outages. If the visit becomes a priced project, those hours are deducted.

Three terms that get used interchangeably

They sound similar in a proposal and describe very different amounts of work.

The island consequence of splitting them is geographic. On a property with a yard, an exterior run and two structures, the boundary between the two trades falls exactly where the problems are — at the entry point, on the link between buildings, at the outdoor position. When that link degrades after a storm, one contractor points at the cable and the other at the configuration, and the property owner is the one making phone calls.

This is the Staten Island borough page. The citywide hub is network installation NYC; the nearest neighbouring borough is Brooklyn, and the counties east of the city are covered on network installation Long Island.

From site walk to closeout

Five stages, and the first one covers the lot rather than the floor.

1. Walk the property and read the exposure

   Every structure in scope and the routes between them, where the service enters the lot, what the walls and ceilings are made of, how far the furthest planned position sits from each candidate room, which parts of the route go outside, and how the property sits relative to the ground. Where flood documentation exists we design around it.

2. Design and quote

   Zone room count and placement, the link topology between structures, addressing, the VLAN scheme, switches sized with capacity in reserve including the winter figure for any exterior position, radio counts indoors and out, the equipment list and a line-item price with the exposure lines shown separately.

3. Backbone first, then plant

   Anything between structures goes in first, because everything else depends on it and exterior work is the most weather-dependent part of the programme. Copper follows inside each building on supported pathway, rated for where it runs, firestopped at rated penetrations, with every exterior entry sealed, bonded and surge-protected.

4. Rooms and equipment

   Rack or cabinet in each structure — mounted at the height the exposure review called for — with panels, managers, power and battery backup. Switching, edge firewall and radios fitted, configured and tuned, and the power budget proven under real load including the cold-weather draw on exterior enclosures.

5. Certify, validate and hand over

   Every drop certified and any fiber link tested and recorded. A validation walk through each structure and out across the yard, lot or dock in scope. Then the package — port map, site as-built with any exterior route measured from fixed points, addressing record, equipment inventory and administrator logins — walked through building by building.

Staten Island network installation questions we get

Where we install networks on Staten Island

The whole island. What changes between corridors is the property type, and the property type is the job.

The West Shore

Bloomfield and the Teleport. The island's purpose-built office campus alongside modern commercial buildings — real telecom rooms, proper risers, accurate drawings and drop ceilings designed as returns. Technically the most straightforward work on the island, with the coordination overhead of managed property.

Chelsea, Travis and the West Shore Expressway corridor. Modern single-story distribution, logistics and light manufacturing on large flat lots. Floor plates that exceed the copper limit inside one structure, high bays, dock doors, yard coverage, and the lowest-lying commercial ground on the island — which puts equipment elevation into the design from the first walk.

Charleston and the southwest. Newer retail, service and commercial development along Veterans Road and the surrounding blocks, plus warehousing behind it. Spread-out sites where distance rather than construction sets the room plan.

The North Shore

St. George. Civic, legal and professional space around the courts and the ferry terminal. Institutional and government tenancies with documentation expectations, in buildings of mixed vintage.

Stapleton, Tompkinsville and the Bay Street corridor. Older commercial and mixed-use along the waterfront and the main street — masonry construction, retail below and offices above, pathway created rather than found, and a redeveloping waterfront alongside it.

Port Richmond, West Brighton and Forest Avenue. The North Shore's retail and service spine, with practices, small offices and trades businesses in one- and two-storey buildings. Small tenancies where placement decisions carry disproportionate weight.

The working waterfront and Howland Hook. Marine, port-adjacent and industrial operations. Exterior work throughout, salt air on every fixing, and coverage that has to reach across open ground.

The East Shore and Hylan corridor

Hylan Boulevard, from Grasmere to Great Kills. The island's longest commercial spine — medical and dental suites, professional offices, retail and small plazas along its whole length. The most common job on the island by count, in buildings frequently converted from other uses with no dedicated equipment space.

New Dorp, Dongan Hills and Midland Beach. Main-street retail and professional offices along New Dorp Lane and the surrounding blocks, with the low-lying East Shore ground behind them making exposure a live question on many properties.

Great Kills, Eltingville and Annadale. Retail, medical and service businesses along Amboy Road and the Hylan corridor, plus marina and waterfront operations.

Mid-island and the south

New Springville, the Staten Island Mall corridor and Bulls Head. Retail, medical and commercial space around Richmond Avenue — the island's densest concentration of shopping and clinical premises, with trading hours setting most schedules.

Todt Hill, Grymes Hill and the central spine. Institutional property, schools and professional offices, in older buildings on higher ground where exposure is less of an issue and pathway more of one.

Tottenville and the southern tip. Small commercial, marine and service businesses. Long travel times from the north of the island, which is why we schedule work down here in full days rather than half.
